5.3.4 Address settings on the TwinSAFE EtherCAT Box

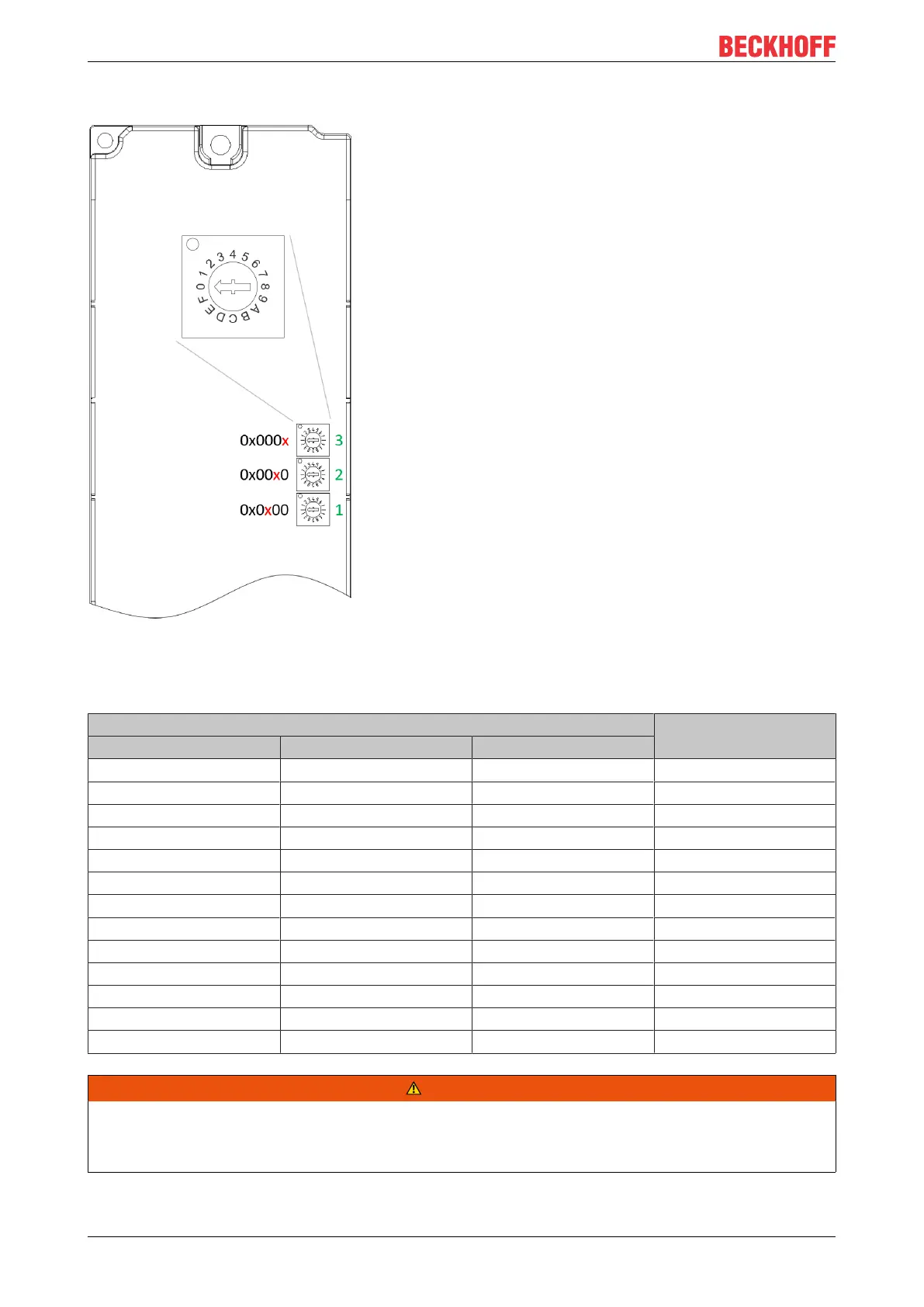

Fig.19: Rotary switches on the underside
The TwinSAFE address of the Box must be set using the three rotary switches on the underside of the
TwinSAFE-EP Box. TwinSAFE addresses between 1 and 4095 are available.
Rotary switch Address
1 (bottom) 2 (center) 3 (top)
0 0 1 1
0 0 2 2
0 0 3 3
… … … …
0 0 F 15
0 1 0 16
0 1 1 17
… … … …
0 F F 255
1 0 0 256
1 0 1 257
… … … …
F F F 4095
WARNING
TwinSAFE address
Each TwinSAFE address set may only occur once within a network or configuration.
The address 0 is not a valid address.
