Beckhoff EP1957-0022 User Manual

Operation
EP1957-0022 and EP1957-2222 37Version: 2.0.0
5.3.6 EP1957 parameters
After creating the alias device, it can be parameterized according to the user specifications. The FSoE
address is set under the Linking tab, and the link to the physical device is created.

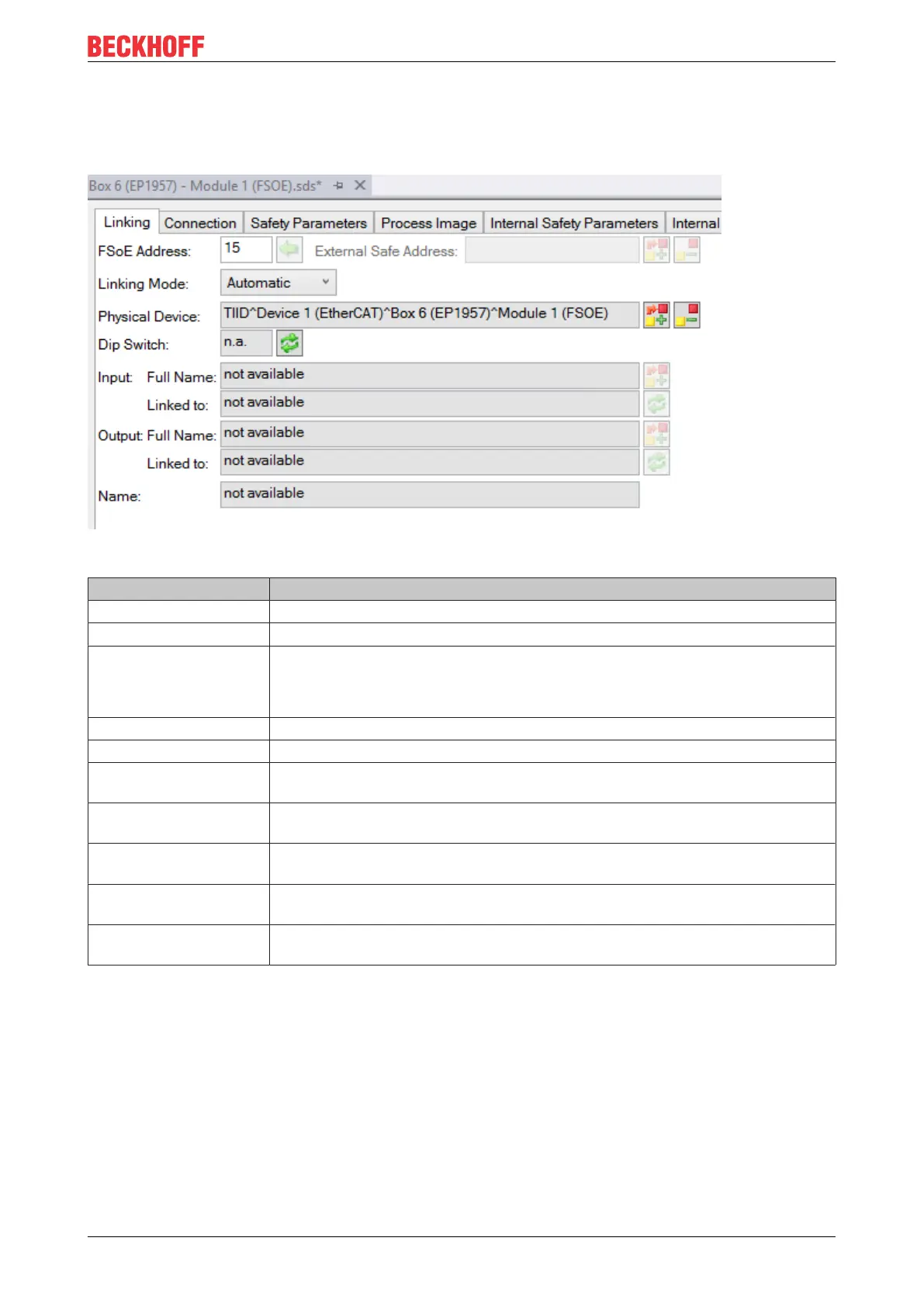

Fig.23: Linking tab
Name Description
FSoE address Parameterized FSoE address (to be set by the user)
External safe address currently not supported
Linking mode • Automatic (automatic linking to the physical device)
• Manual (manual linking, e.g. to network variables)
• Local (signals are used in the local logic)
Physical device Link to the TwinSAFE component within the TwinCAT solution
DIP switch DIP or rotary switch address read from the TwinSAFE component
Input: Full Name In manual mode:
Display of the variables below the TwinSAFE Logic, e.g. EL6910
Input: Linked to: In manual mode:
display of the linked variables
Output: Full Name In manual mode:
Display of the variables below the TwinSAFE Logic, e.g. EL6910
Output: Linked to In manual mode:
display of the linked variables
Name In manual mode:
name of the TwinSAFE message below the TwinSAFE Logic and for the info data
Under the Connection tab you can make further settings, e.g. the mapping of the info data or the behavior in
case of a module error.
