TF5200 | TwinCAT 3 CNC
Online tool compensation
21
Version: 1.02

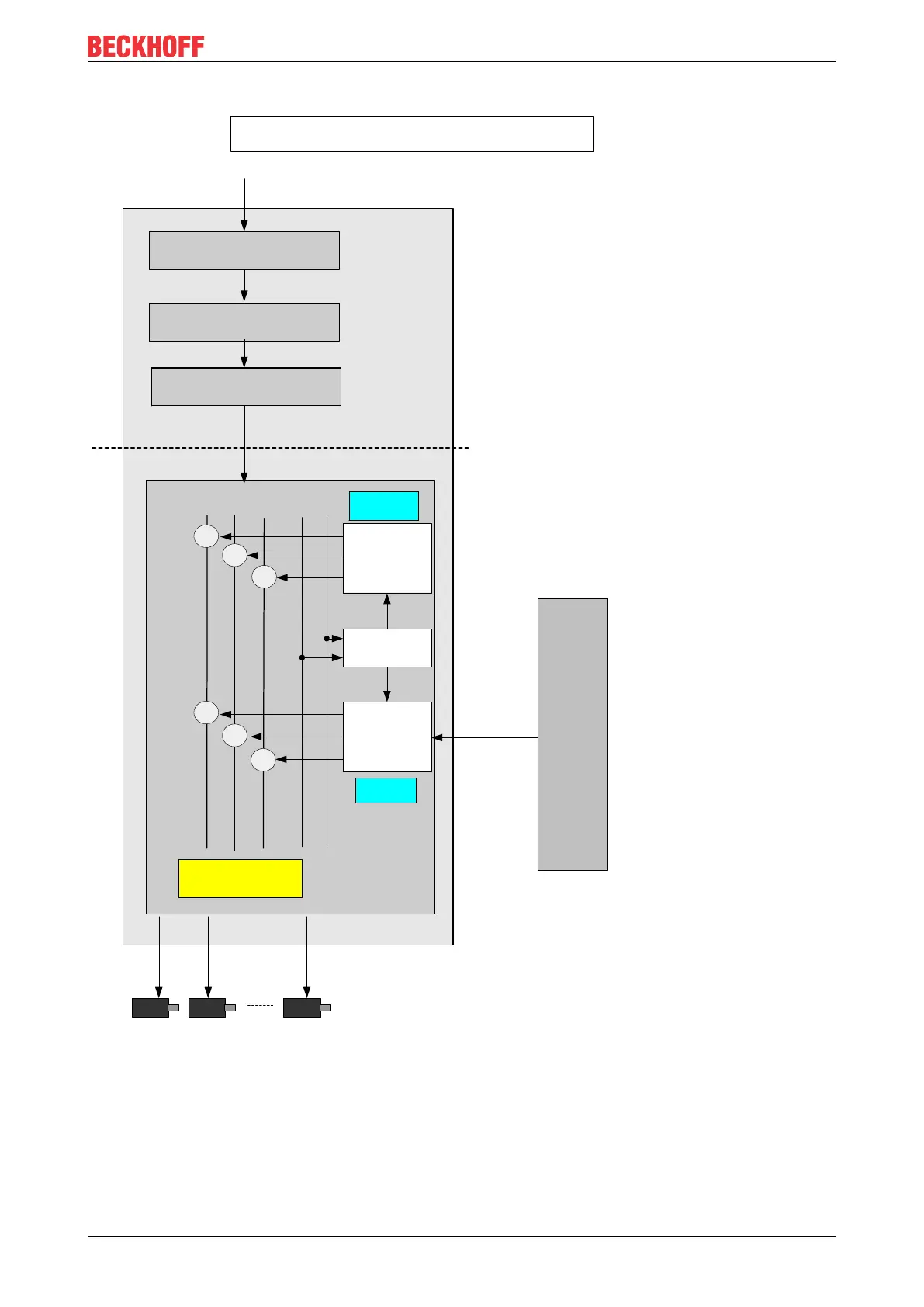

The figure below shows the function of TOOL_DIR:
IPO
Decoder
TRC
BA
VO
Planning
Online
OTC
PLC
Covered
distance
CONT
DISC
#OTC [TOOL_DIR CONT/DISC/A
UTO]
X
Y
Z
Offset
+
+
+
+
+
+
In tool
direction
Tool
orientation
A
C
Figure11: Description of TOOL_DIR function
20
22
Table of Contents
Default Chapter
4
General and Safety Instructions
4
Table of Contents
5
1 Overview
8
2 Description
9
Programming
9
Figure 1 Grinding a Contour
9
Wear Compensation of Tool Radius
11
Figure 2 Wear Compensation of Tool Radius
11
Figure 3 Contour of the NC Program Wr_Quad_Disc.nc
13
Wear Compensation of Tool Length
15
Figure 4 Description of RADIUS Function
15
Figure 5 Wear Compensation of Tool Length
16
Figure 6 Description of LENGTH Function
17
Figure 7 Inclined Grinding Disc
18
Inclined Grinding Disc
18
Wear Compensation in Tool Direction
19
Figure 8 Wear Compensation in Tool Direction
19
Figure 9: Grinding Disc Setting B=0
20
Figure 10: Grinding Disc Setting B=90
20
Figure 11Description of TOOL_DIR Function
21
Wear Compensation in Direction of Surface Normal
22
Figure 12Wear in Surface Normal Direction
22
Figure 13Description of SURF_NORM_DIR Function
24
Special Settings in Tool Data
25
Connection to PLC
26
Channel-Specific Connection
26
Axis-Specific Connection
28
Special V.G. Variables for OTC
30
Connecting to External Tool Management
31
3 Parameter
32
Overview
32
Description
32
4 Support and Service
34
Index
35
