TF5200 | TwinCAT 3 CNC
Online tool compensation
22
Version: 1.02
2.5
Wear compensation in direction of surface normal
Grinding a surface

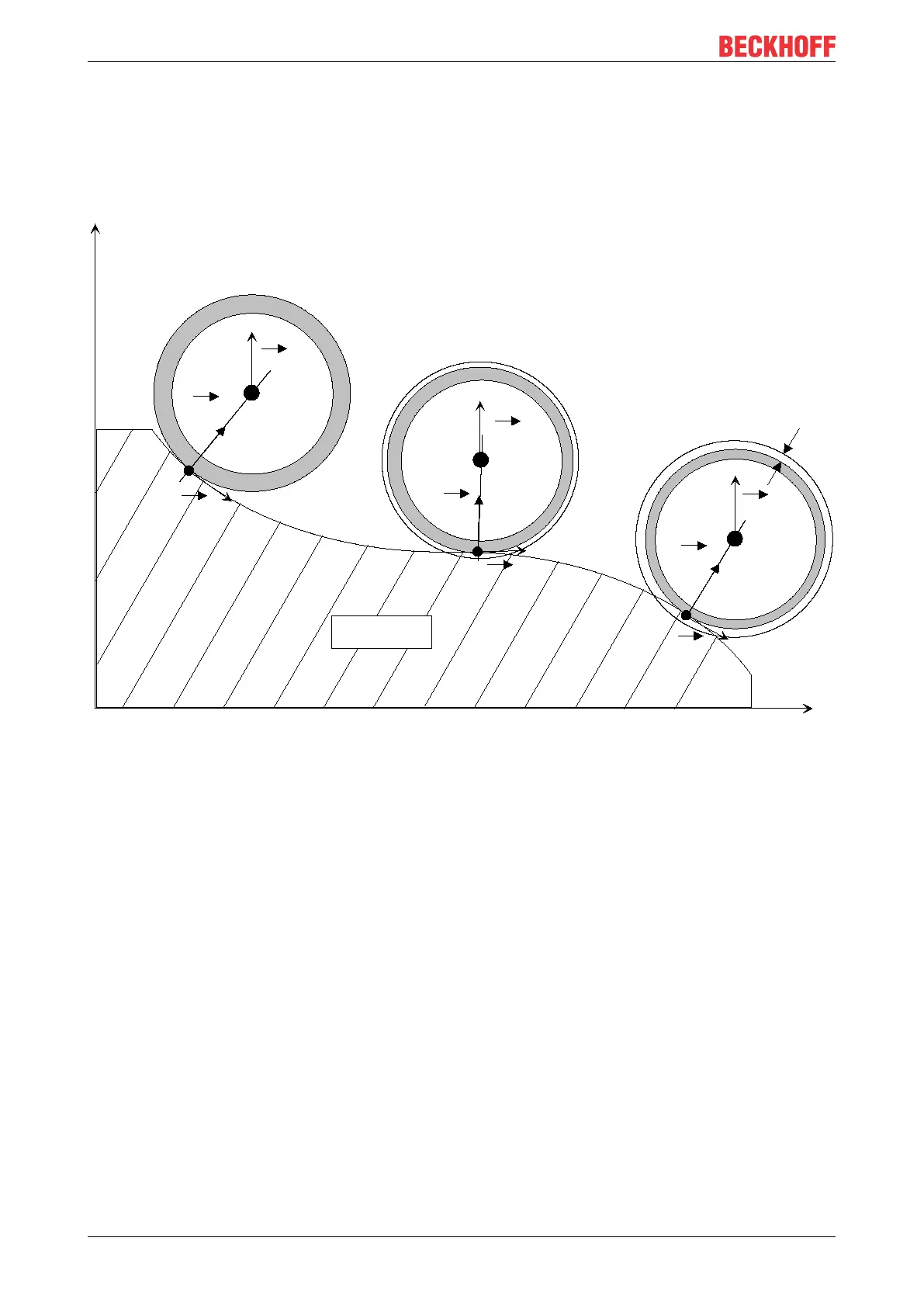

This compensation type compensates for wear in surface normal direction. The surface normal direction is
calculated in the CNC based on the tool direction vector and the path tangent vector.
Tool wear
Grinding wheel
fn3
fn2
fn1
Workpiece
ori1
ori2
ori3
tb1
tb2
tb3
X
Z
Figure12: Wear in surface normal direction
21
23
