3.1.6 Output Section
(42) A-440 - use this to turn on an output tuning signal of 440 Hz concert
pitch. This switch can also be used to enter various modes during turn-on
(see the Overview section of this manual for more details).
(43) POWER LED - this LED shows when power is applied and the synthesizer
is turned on. It is also used to indicate the current status when changing
modes
(44) VOLUME - adjust the overall volume level of the synthesizer output.
(45) VOLUME (HEADPHONE) - adjust the overall volume level of the PHONES
output.
(46) PHONES - connect your headphones to this 3.5 mm TRS output. Make sure
the headphone volume is turned down before putting on headphones.
(47) ON - use this to quickly turn on or Mute the main audio output of the
synthesizer.
(48) LOUD CV (INPUT) - allows connection of an external control voltage to
control the Loudness Contour.
(49) MAIN (OUTPUT) - use this 3.5 mm TRS connection to output the main
audio output. Typically it is patched to an audio input of the MODEL D or
the audio inputs of other modular synthesizer equipment. If you are using
the MODEL D in a Eurorack, then this is the main output, as the rear panel
output connectors are not used.
(1)
(6)
(7)
(36)
(47)
(46)
(35)
(34)
(8)
(9)
(5)
(33)
(32)
(44)
(42)
(45)
(43)
(31)
(30)
(4)
(2) (3) (17)
(10) (11) (12) (13) (14) (15) (16) (20) (21) (22)
(24)
(25)
(23)
(18) (26) (27)
(37) (38) (39) (40)
(41)
(48)
(49)
(28) (29)(19)

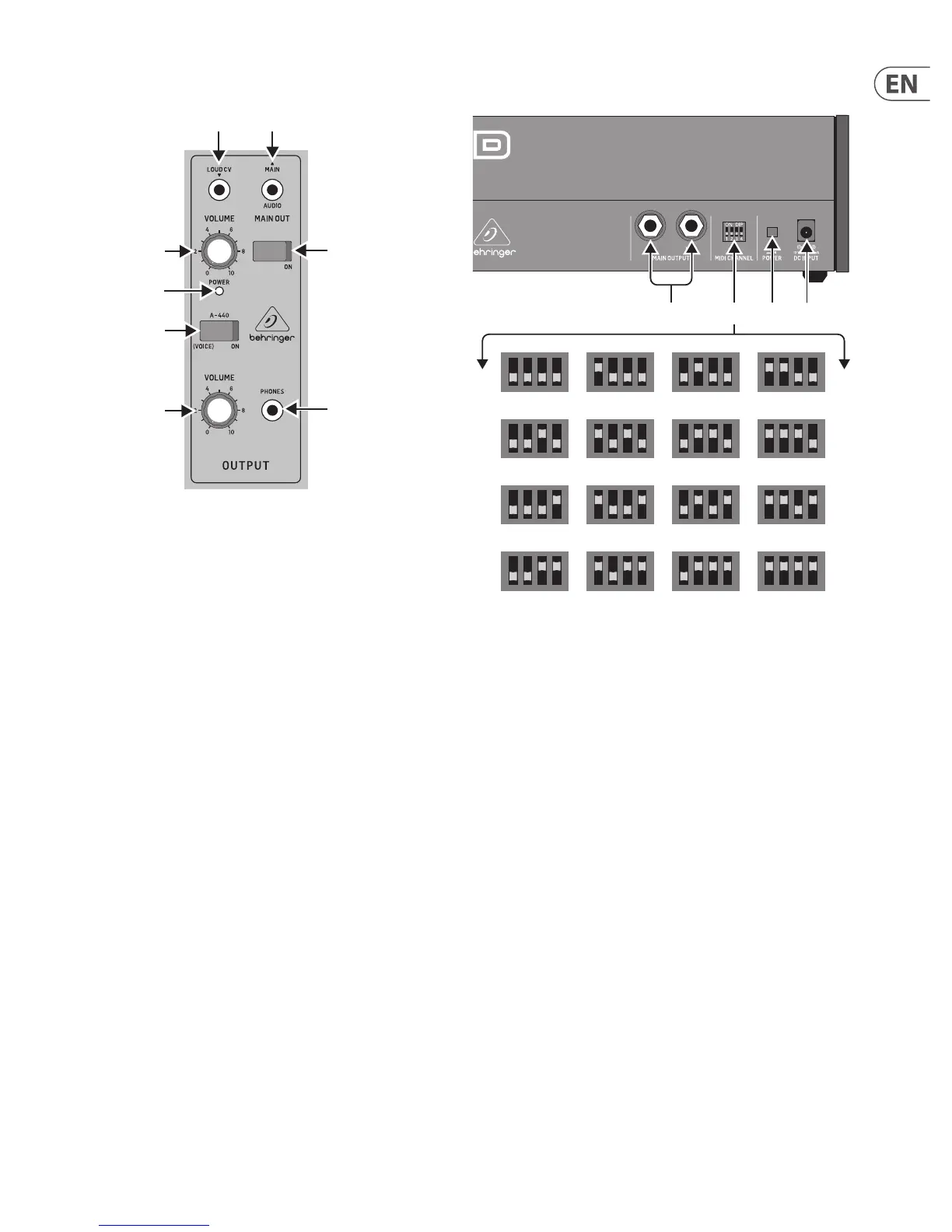

3.2 Rear Panel
(50) MAIN OUTPUT - connect these ¼” TRS outputs to the inputs of
your external equipment as follows (note that they are both Mono,
and not left/right):
LOW - this instrument-level mono output can connect to the
instrument-level inputs of guitar ampliers or mixers for example.
HIGH - this line-level mono output can connect to the line-level inputs
of mixers, keyboard ampliers, or powered speakers for example.
(51) MIDI CHANNEL - these 4 switches allow you to set the MIDI Channel
number from 1 to 16 (see the table above). The MIDI channel can also be
changed using MIDI SysEX commands, as shown in the MIDI SysEX tables
later in this manual.
(52) POWER - turn the synthesizer on or o . Make sure all the connections are
made, and the volume is turned down before turning on the unit.
(53) DC INPUT - connect the supplied 12V DC power adapter here. The power
adapter can be plugged into an AC outlet capable of supplying from 100V
to 240V at 50 Hz/60 Hz. Use only the power adapter supplied.
(51)(50)
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
(52)
(53)

Behringer MODEL D Specifications

General

Built-in display	No
Housing color	Black
Power source type	DC, AC
