3.2 Live sound
FBQ3102
MDX2600
EP2000
HPS3000
Electric guitar
XENYX 1202FX
GMX212
Bass guitar
BB410
BX4500H
XM1800S
UMX490
CD Player
MD Recorder
Drum
Computer
REV2496
B1520 PRO

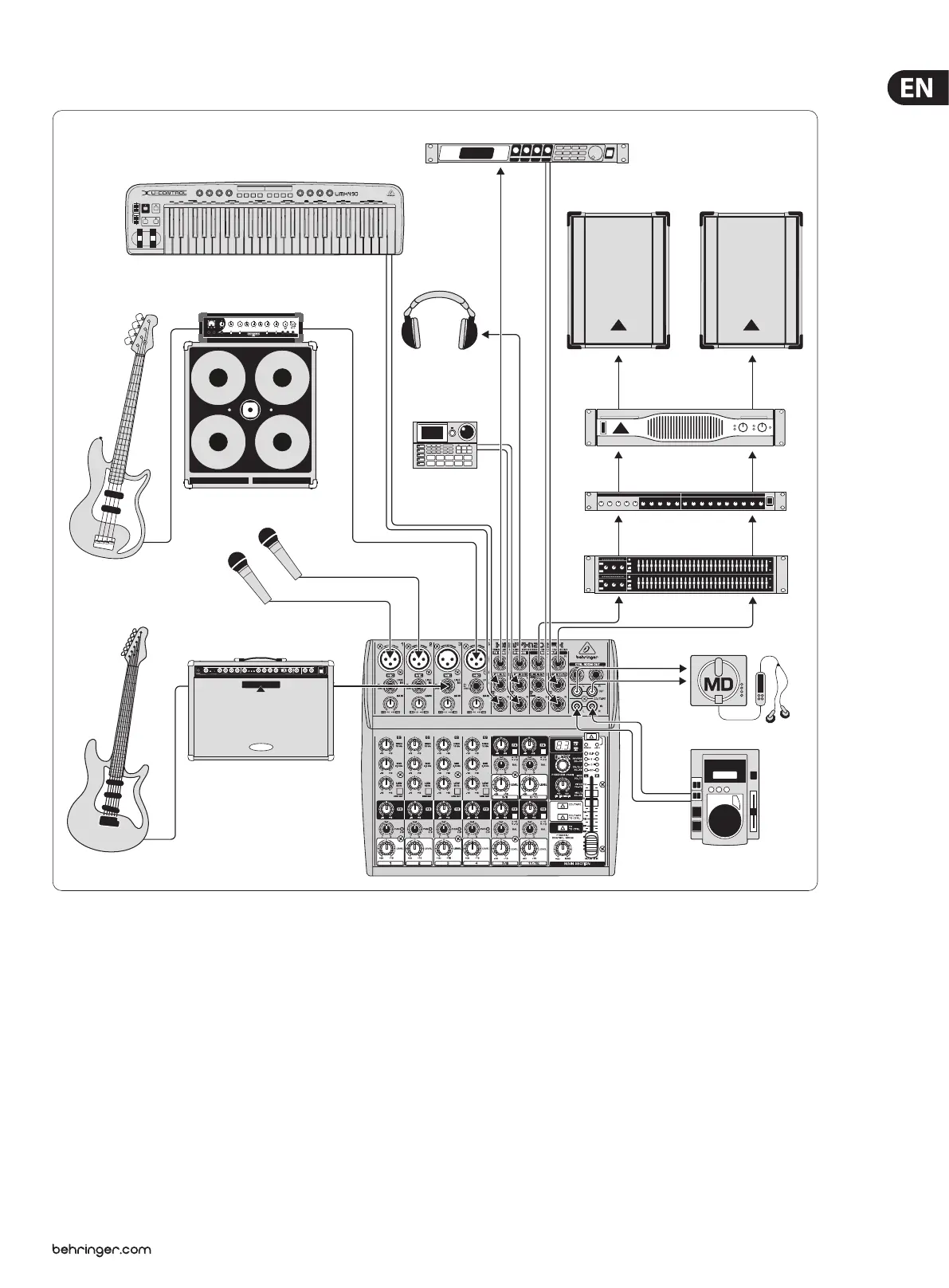

Fig. 3.2: Live application of the 1202FX
This illustration shows a typical arrangement for a live setup. Two vocal
microphones and the line outputs of a guitar and a bass amplier are connected
to the mono channels of the 1202FX. A keyboard and a drum computer are
connected to the stereo channels. The power amplier in your sound system is
connected to the main outputs; equipment such as compressors, equalizersor
crossovers are located between the mixer and the amp in the signal path. Ifyou
wish to make a live recording, you can connect your recording equipment (inthis
case, a minidisk recorder) to the CD/tape outputs. A CD player that is playing
during intermissions is connected via the CD/tape inputs. If you connect
a recorder/player combo (e. g. a tape deck recorder), the CD/tape to Mix switch
should not be pressed during a recording because this way the signal intended
for recording would be directly re-routed back to the mixing console, and then
back to the recorder... this would cause a feedback loop as soon as you hit the
record button. A loud, unpleasant, even painful sound would result.
If you are using an external eects processor (wired as shown in the illustration),
please make sure that the FX SEND control in channel 11/12 is turned all the way
down counterclockwise to avoid creating a feedback loop.

Behringer XENYX 1202FX Specifications

General

Headphone out	Yes
Product color	Silver
Video capability	No
Equalizer bands quantity	3
Channel fader (1kHz)	88 dB
Digital sound processing	24 bit
Microphone input impedance	2600 Ω
Total Harmonic Distortion (THD)	0.005 %

Weight and Dimensions

Depth	242 mm
Width	220 mm
Height	47 mm
Weight	2100 g
