Behringer Xenyx 502 User Manual

8 XENYX 1202/1002/802/502 User Manual
+4/-10
The stereo inputs of the XENYX 1202 and 1002 have an input sensitivity switch
which selects between +4 dBu and -10 dBV. At -10dBV (home-recording
level), the input is more sensitive (requires less level to drive it) than at +4 dBu
(studiolevel).

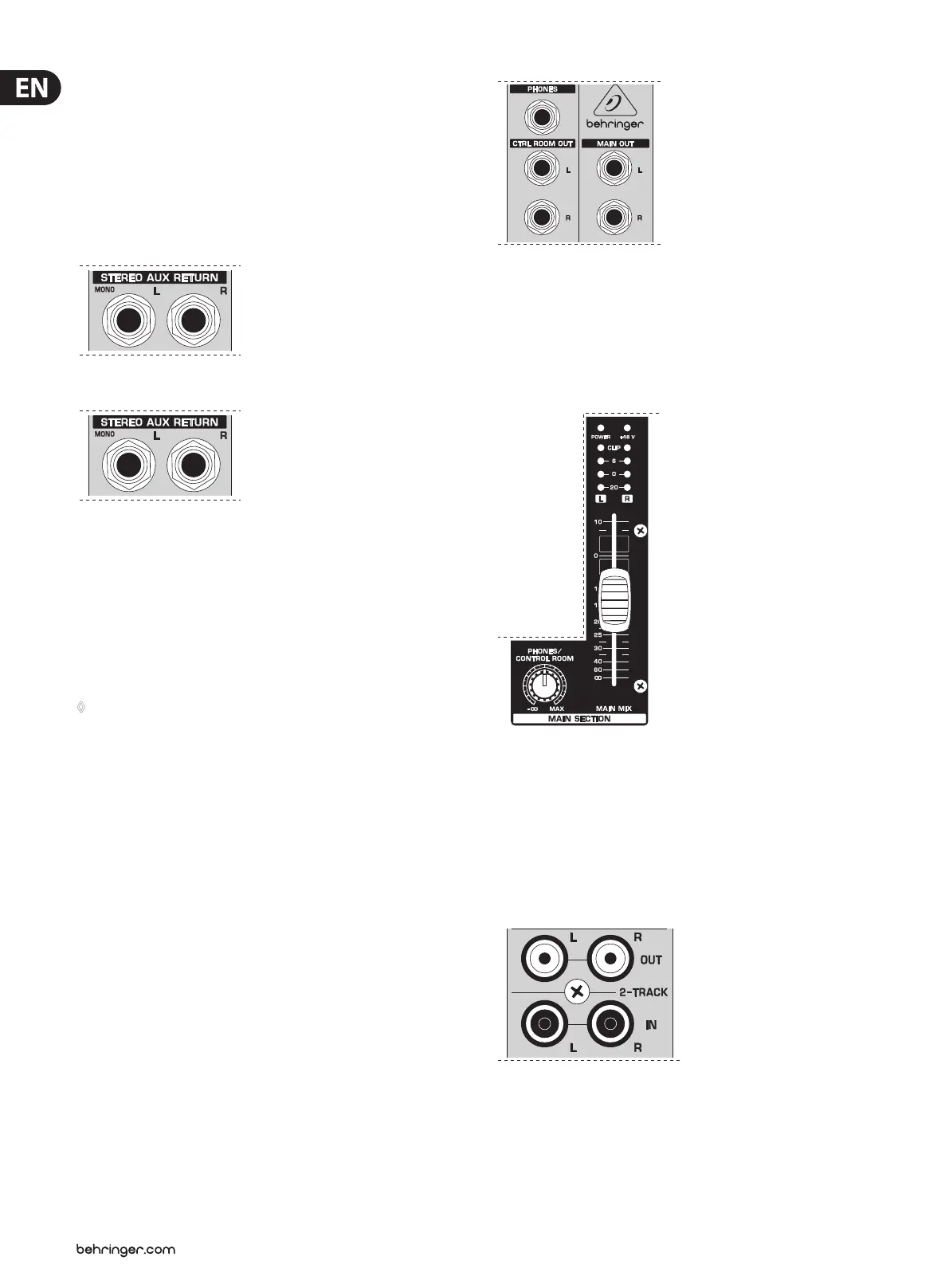

2.3 Connector panel and main section
2.3.1 Send/return eects path
Fig. 2.7: FX send/return connectors
Fig. 2.8: FX send/return controls
AUX RETURN
802 only: the STEREO AUX RETURN connectors are used to bring the output of
the external eects device (whoseinput is derived from the aux sends) back into
the console. You can instead use these connectors as additional inputs, but any
eects device will then have to be brought back into the console via a normal
stereo channel. This does, however, give you the ability to use the channel EQ on
the eects return signal if you wish.
◊ When using a stereo channel as effects return path, the FX control of
the relevant channel should generally be turned fully down to avoid
undesirable feedback.
If only the left connector is used, the AUX RETURN automatically operates in
mono. Use the AUX RETURN control to determine how much of the eects signal
is sent to the main mix.
FX SEND
The FX SEND output (does not apply for 502) should be connected to the input
of an external eects unit. The post-fader FX signal you created using the
input channel FX controls is sent to the eects unit via the FX SEND ouput.
Use the FXSEND control of the main section to adjust the overall send level
(1002and1202 only).
2.3.2 Monitor and main mix
PHONES/CONTROL ROOM
The stereo PHONES jack (at the top of the connector panel) is where you connect
headphones. The unbalanced CTRL ROOM OUT jacks carry the summed eects
and main mix signals, as well as soloed channel signals. The PHONES/CONTROL
ROOM control adjusts the level of both headphones and main monitor outputs.
The 502 is not equipped with control room outputs.
Fig. 2.9: Monitor/main mix connectors
MAIN MIX
The MAIN OUT connectors are unbalanced mono jacks. The main mix signal
appears here at a level of 0 dBu. The MAIN MIX fader adjusts the volume of these
outputs. The XENYX 802 and 502 mixing consoles feature a rotary control for
thispurpose.
Fig. 2.10: Monitor control and main mix fader
2.3.3 2-Track connectors
2-TRACK INPUT
The 2-TRACK INPUTs are used to bring an external signal source (e.g. CD player,
tape deck, etc.) into the console. They can also be used as a standard stereo line
input, so the output of a second XENYX or BEHRINGER ULTRALINK PRO MX882 can
be connected.
Fig. 2.11: 2-Track input/output
Alternatively the line or tape output of a hi- amplier with source selection
switch could also be hooked up here, allowing you to easily listen to
additionalsources.

Behringer Xenyx 502 Specifications

General

Inputs	5
Type	Analog
Channels	5
Inputs - Mic Preamps	1 x XLR
Outputs - Main	2 x 1/4"
Headphone Output	1 x 1/4"
EQ	2-band EQ
Phantom Power	Yes
Headphones Output	1
Weight	1.2 lbs
Outputs - Other	2 x RCA
Frequency Response	10 Hz
THD	<0.1%
Signal-to-Noise Ratio	110dB (A-weighted)
Power Supply	External power supply
Dimensions	1.85 x 5.9 x 7.0" / 47 x 150 x 177 mm
