Behringer xr18 User Manual

10 X AIR User Manual

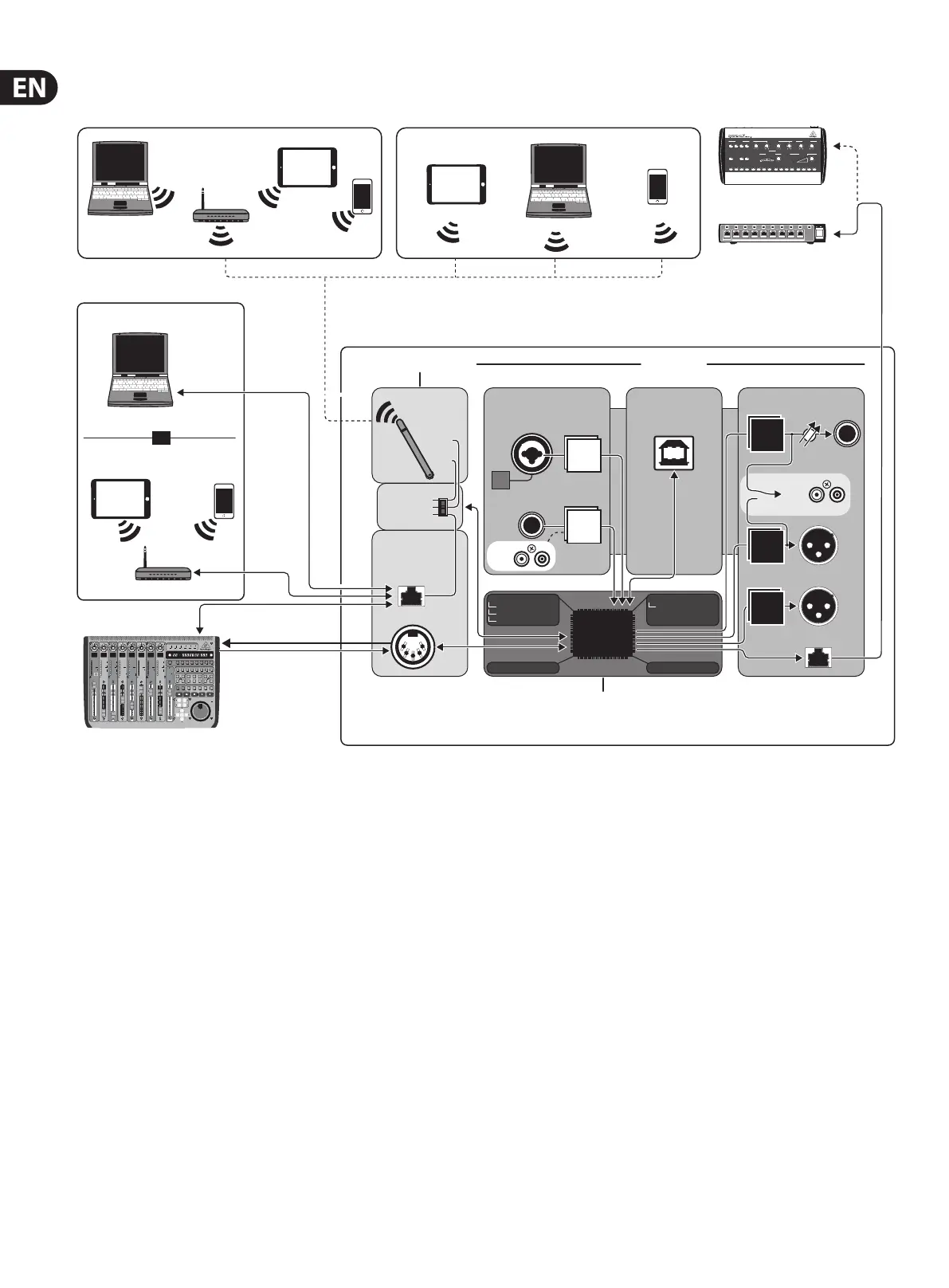

3.1.3 X18/XR18 System Overview
Hi-Z
MIC/LINE IN
CH. 1-16
AUDIO IN/OUT
CH. 1-18
MAIN OUT L-R
MAIN OUT L/R
CTRL/PHONES
AUX SEND 1-6
ULTRANET OUT
CH. 1-16
ETHERNET
CH.1-2
LINE IN
CH. 17-18
PHONES STEREO
AUDIO INPUTS USB AUDIO
AUDIO I/OMIXER CONTROL
DSP ENGINE
X18/XR18
MIDI I/O
WIRED CONTROL
ACCESS
POINT*
WIFI
CLIENT*
WIRELESS CONTROL
AUDIO OUTPUTS
LEVEL
DSP
ACCESS POINT
WIFI CLIENT
ETHERNET
or
Router
Router
WIFI CLIENT mode (Mobile Devices with Wifi)
ETHERNET mode
Computer with Ethernet port
Mobile Devices with Wifi
CAT-5 cable
CAT-5 cable
ACCESS POINT mode (Mobile Devices with Wifi)
X18:
XR18:
X18:
iOS/Android
X-TOUCH
or any other MIDI /
Mackie Control
compatible Controller
*ACCESS POINT mode:
- available channels: 1-11
- max. 4 Wifi clients
- performance limited by Wifi bandwidth
*WIFI CLIENT mode:
- available channels: 1-11
4 STEREO FX SLOTS RTA METER
DSP-MIXER CH.
MONO IN 1-16
USB/AUX IN (STEREO)
FX RETURN 1-4 (STEREO)
DSP-MIXER BUSES
AUX /
GROUP SEND 1-6
Mac/Win/Linux
Mac/Win/Linux
iOS/Android
iOS/Android Android
Mac/Win/Linux
P16-M
P16-D
or
DACs
ADCs
ADCs
DACs
DACs

Behringer xr18 Specifications

General

Type	Digital Mixer
Channels	18
Mic Preamps	16
Aux Sends	6
MIDI I/O	In/Out
Wi-Fi	Yes
Rackmountable	Yes
Wireless Control	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Inputs	16 x XLR/TRS Combo, 2 x TRS
USB Interface	18 x 18
Dynamic Processing	Gate, Compressor
Data I/O	Ethernet
Software	X Air app
EQ Bands	4-band parametric per channel
