5 X AIR User Manual

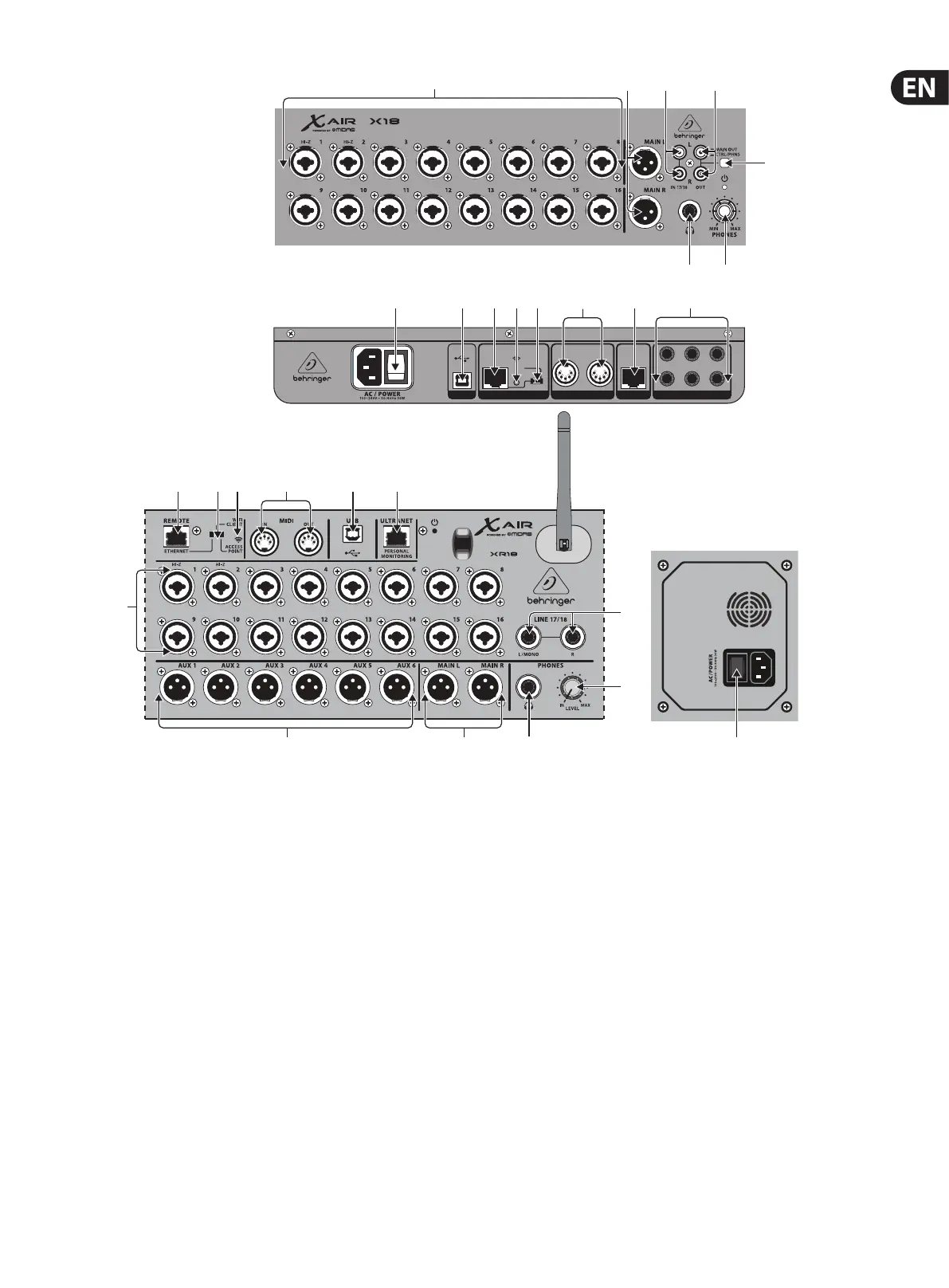

2. Callouts
2.1 X18/XR18 Callouts
(1) INPUTS accept balanced and unbalanced XLR and ¼" plugs. Inputs 1 and 2
have high-impedance preamps for direct connection of guitars and basses.
(2) OUT L & R jacks send the main mix signal to PA or monitor speakers via
XLRcables.
(3) RCA IN jacks (X18 only) accept unbalanced RCA cables for connecting MP3
players, external mixers, iPad, etc. These inputs have limited processing
compared to the other input channels.
(4) RCA OUT jacks (X18 only) send either the main mix signal or headphone
signal via unbalanced RCA cables to a pair of active studio monitors.
(5) CONTROL ROOM button (X18 only) determines whether the main mix or
headphone/solo signal is routed to the RCA OUT jacks.
(6) HEADPHONE jack accepts a ¼" TRS plug for connecting a pair of headphones.
(7) PHONES LEVEL knob determines the output of the headphones jack.
(8) POWER switch turns the power on and o . The LED on the main input panel
will light when the unit is powered on.
(9) USB port (type B) accepts a USB cable for connection to a computer for
multi-channel audio and MIDI recording. Up to 18 audio channels can
be simultaneously recorded, and 18 channels are available for playback.
Themixer application allows assignment of channels for recording and
playback. 16 channels of MIDI I/O can also be transmitted on the same
USB connection. Check the product page on music-group.com to download
the required Windows* multi-channel driver. The interface is compatible
with CoreAudio on Mac* computers, and to ALSA/Jack on Linux* computers.
(10) ETHERNET port allows the mixer to be controlled via LAN or connected
Wirouter.
(11) RESET button resets the console to default network parameters when held
for 2 seconds. When held for 10 seconds, all console functions are reset to
factory default status.
(12) REMOTE switch selects between Ethernet, Wi client, or Access Point.
Seethe Network Connection chapter for details.
(13) MIDI IN/OUT jacks send and receive MIDI signals to and from external
equipment. See the MIDI Implementation chart for details.
(14) ULTRANET port allows connection of BEHRINGER P16-M personal monitoring
mixers or P16-D distribution hubs.
(15)
AUX SEND jacks send your monitor mixes to active stage monitors or headphone
mixers. The XR18 uses XLR connectors, while the X18 uses balanced ¼" jacks.
(16) Inputs 17 and 18 (XR18 only) accept balanced ¼ " cables for connecting
line-level sources. These inputs have limited processing compared to the
other input channels.
*Mac is a trademark of Apple Inc. Windows is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries. Linux is the registered trademark of Linus Torvalds in the
U.S. and other countries
PER SO NA L
MONITOR IN G
ET HE RN E T
WI FI C LI EN T
ACC ES S
PO INT
2
1
4
3
6
5
USB REMOTE
MIDI
ULTRANET
AUX SENDS
INOUT
(1)
(15) (2) (6)
(7)
(8)
(10) (12)(11) (13) (9) (14)
(8) (9) (10) (11) (12) (14)
(15)
(13)
(6) (7)
(5)
(4)(3)(2)
(1)
(16)
