2. Transport carriage
2.1 Rear end position
Standard and checking

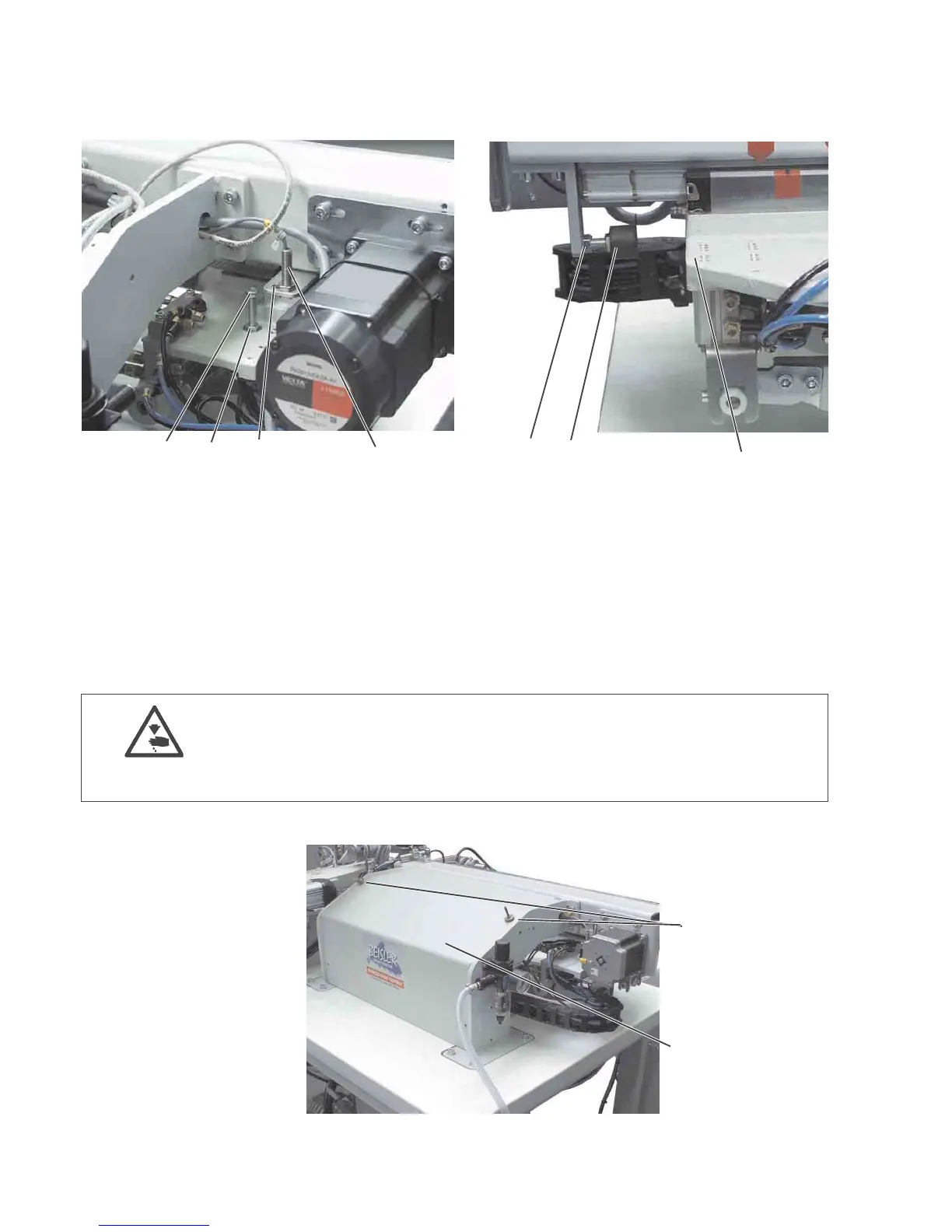

The switch 1 determines the rear end position of the transport carriage.
It must always be in the very rear of the slotted hole 2.
When the transport carriage is in its end position, there must be a
distance of 1 mm between the limit switch 1 and the switching screw 4.
When the transport carriage has gone back so far that the switching
screw 4 stands centrically under the switch 1, there must be a distance
of 2 mm between the transport carriage 5 and the stop 6.
Caution: Risk of injury!
Switch the main switch off.
Check and adjust the switch and the stop for the rear end position of
the transport carriage only with the sewing unit switched off.
6
432 1
76 5
8
9
