12.2 Ejector roller
In the production of trousers the ejector roller is used separately.
In the production of men’s jackets it is used in combination with the
throw-over stacker.

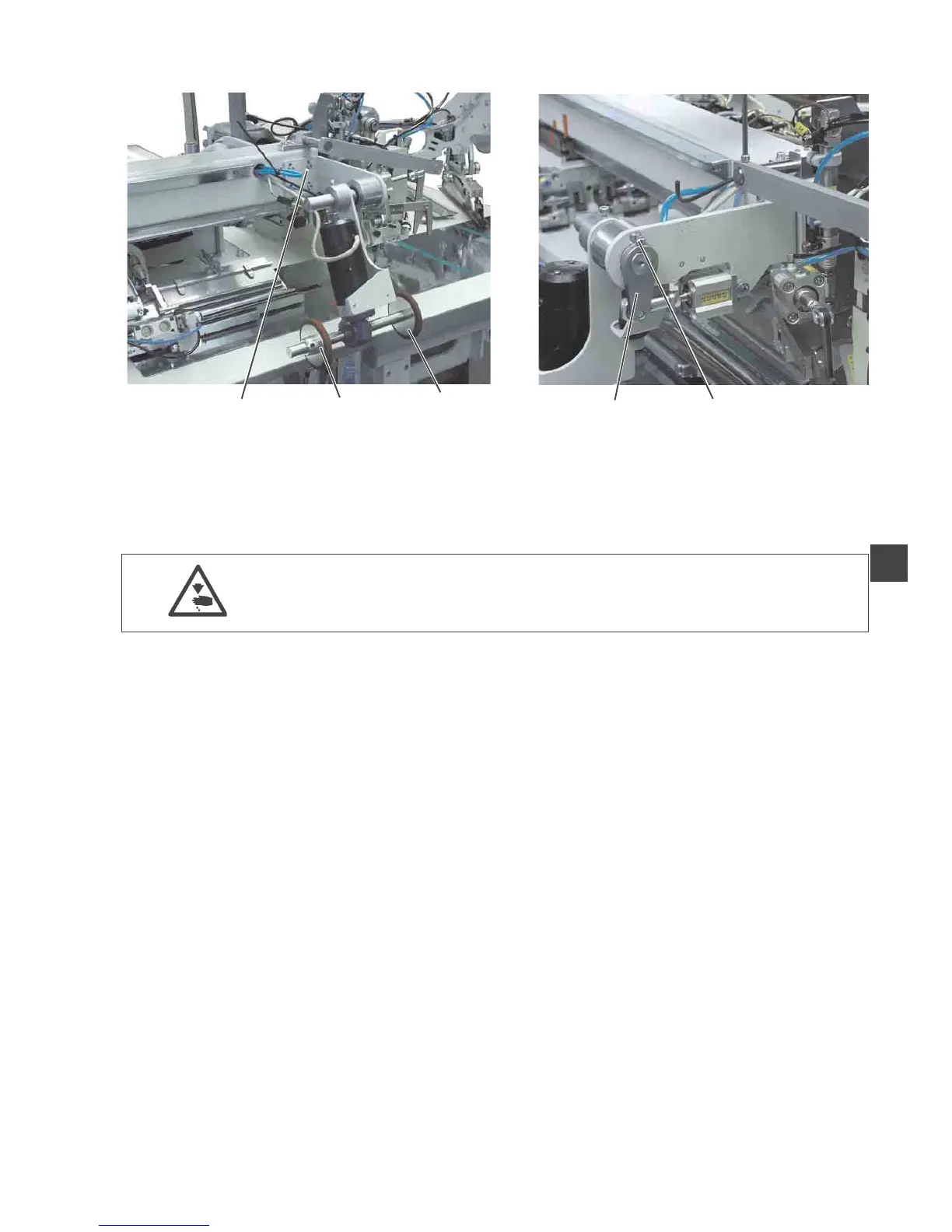

The transport rollers 1 and 2 convey the workpiece to the opening of
the throw-over stacker so that it is safely stacked.
Caution: Risk of injury!
Switch the main switch off.
Adjust the ejector roller only with the main switch switched off.
The transport rollers must be aligned in parallel position to the table
top and the centre of the pocket opening.
Adjusting the height of the transport rollers
In lowered position both transport rollers 1 and 2 should equally rest on
the table top.
–
Loosen screw 4.
–
Shift the operating lever 5 in such a way that both rollers rest on
the table top with slight pressure.
–
Tighten screw 4.
Adjusting the throttle valves
–
Adjust the lowering and lifting speed at the throttle valves 1 and 2.
The lowering speed should be rapid, but not abrupt.
Throttle valve 1 = lowering speed
–
Throttle valve 2 = lifting speed
3
43
321
54
