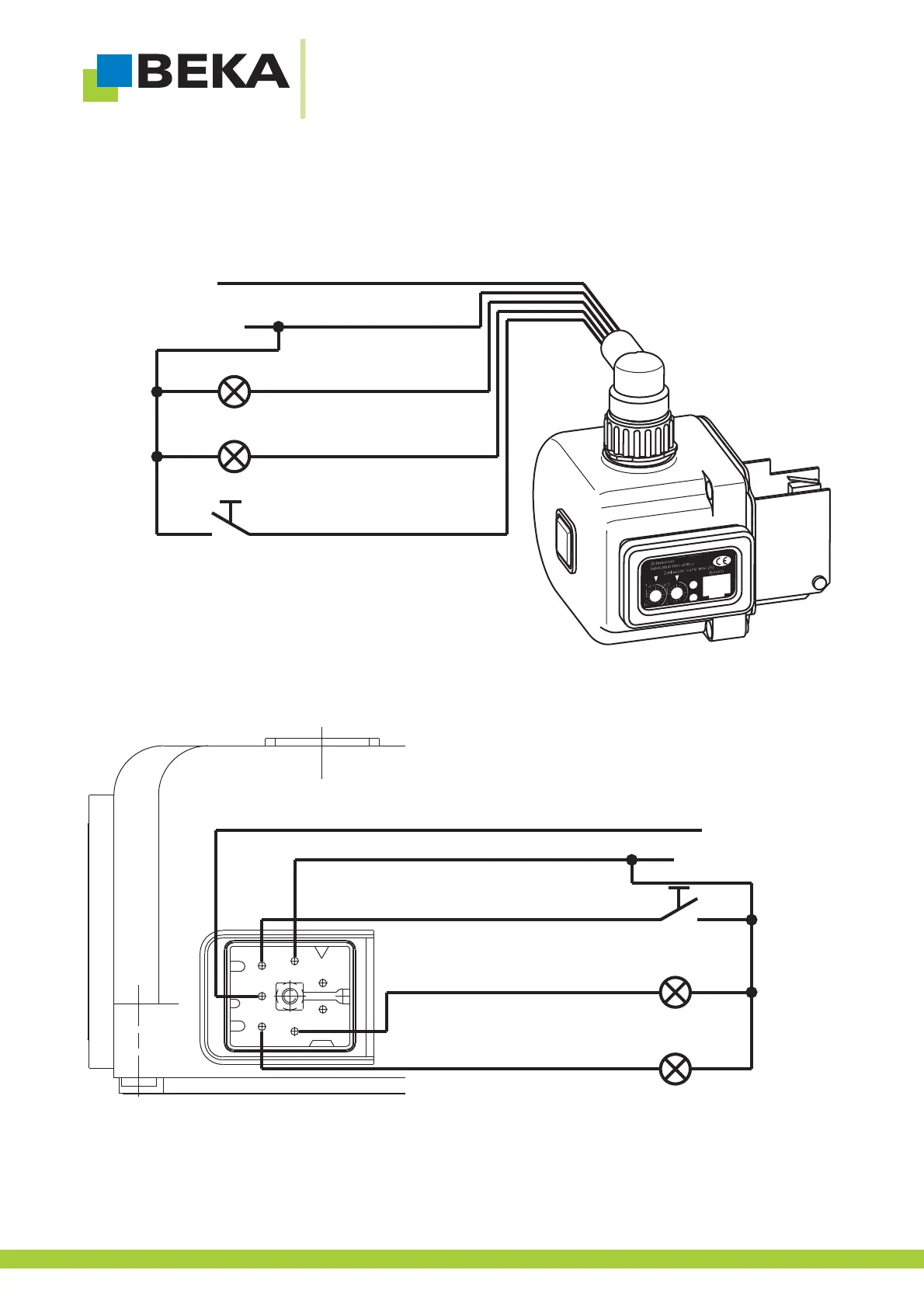

10.3.1 Connection plan for the central lubrication pump PICO with integrated control unit PICO-troniX1 with
bayonet plug
Fig.44:
10.3.2 Connection plan for the central lubrication pump PICO with integrated control unit PICO-troniX1 with
Hirschman plug
Fig.45:
ground, termin. 31
+ ignition, termin. 15
lamp red
lamp green
brown (Nr. ge/gr)
black (Nr. 3)
red (Nr. 2)
green (Nr. 1)
orange (Nr. 4)
Intermediate lubri. button
ground, termin. 31
+ ignition, termin. 15
lamp green
lamp red
brown (Nr. ge/gr)
black (Nr. 3)
green (Nr. 1)
red (Nr. 2)
orange (ge/gr)
Intermediate lubri. button
3
2
4
1
5
6
7
