10.5 Assembly of pump elements
Example for pump element PE-120F. The installation and demounting of pump elements PE-5 to PE-50 is performed the
sameway.
10.5.1 Demounting of pump elements

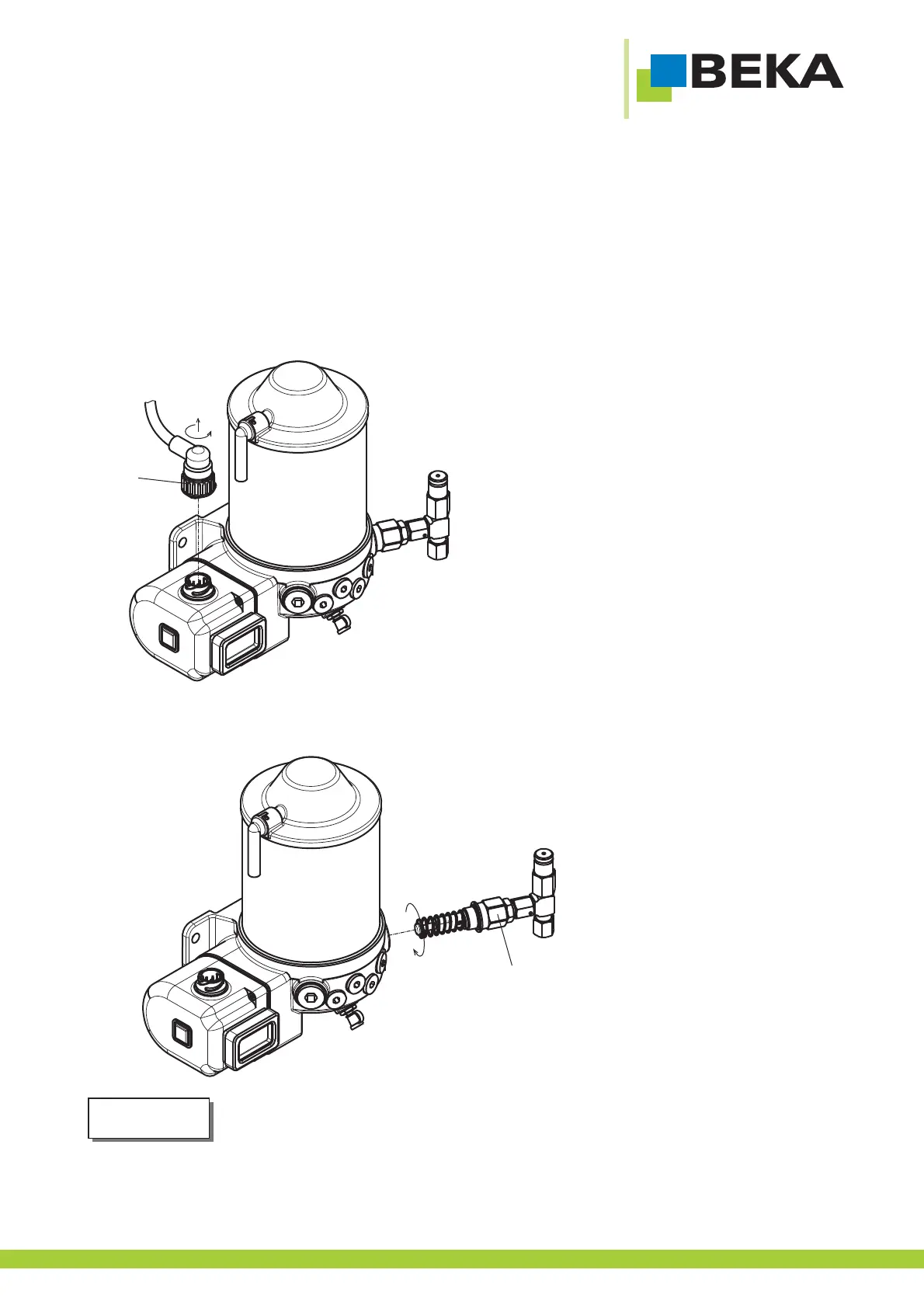

A) Pull offthe powerplug (see 10.3electric connection)(pos.1,fig. 48)and secure thepump against reactivation.
Fig.48:
B) Unscrew thepumpelement
Fig.49:
Observeto removethe piston ofthe pump elementsfrom thepump housing.
If the piston remains in the housing, the pump blocks or the eccentric is damaged. If the pump
blocks,the pumpmotor can burnout.
1
Caution!
SW 24
