Belarus 1025/1025.2/1025.3
Section G. Scheduled maintenance
G 38
Operation 41. Changing oil in HS
tank (BELARUS 1025.3)

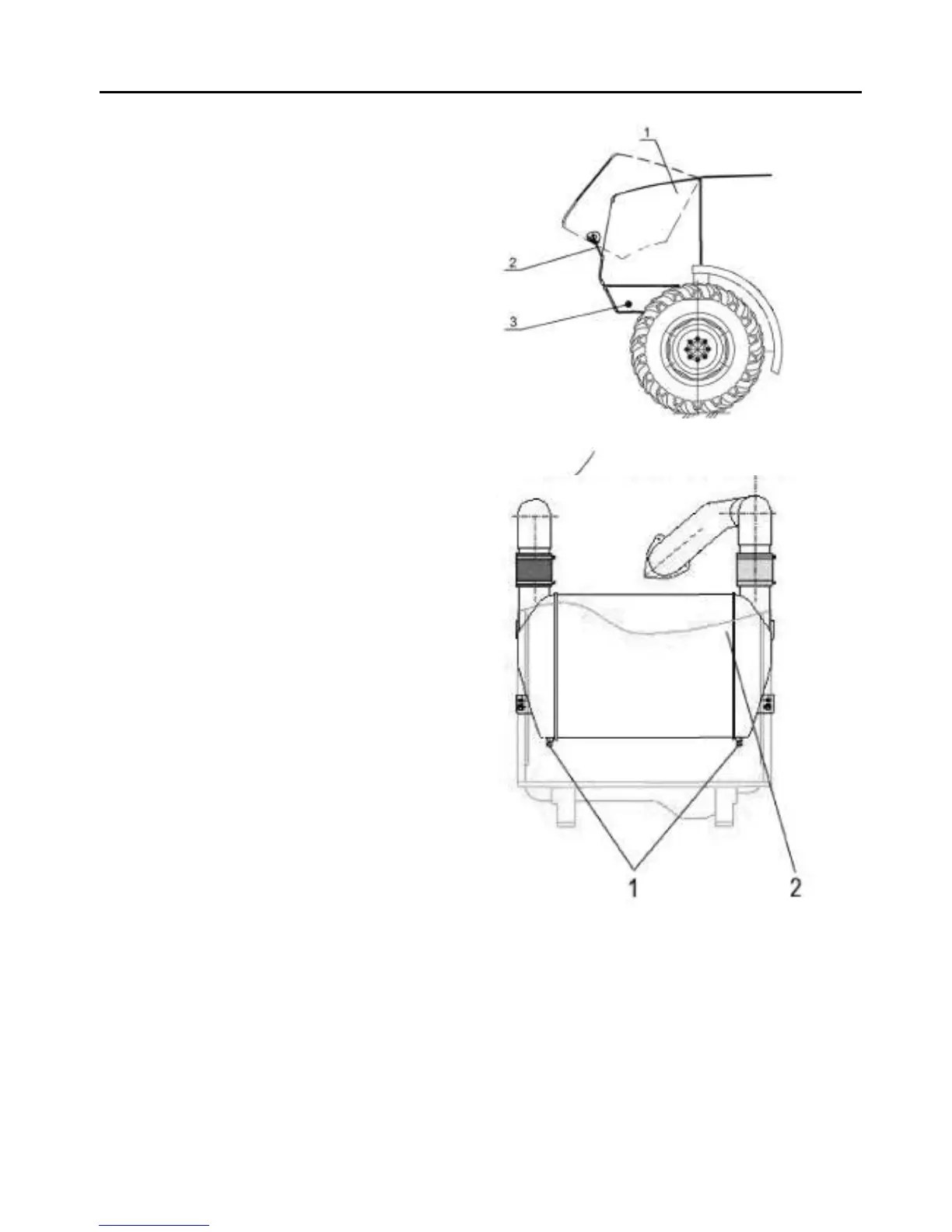

To get access to HS tank lift shield (1)
having pulled handle of latch control steel
rope (1), and secure it in open position by
means of tie-rod (2).
• Remove cover (5) of filling neck and
drain plug (6). Drain oil from tank in the
reservoir for used oil. Properly dispose oil.
• Put drain plug (6) in place and fill fresh
oil.
• Oil level should be up to upper mark of
on the oil measuring rod (4).
• Put cover (5) in place and lower the
shield(1).
Operation 42. Draining condensate
from CAC
• unscrew two plugs (1) in the lower
section of charged air cooler (CAC) (2).
• Let condensate drain.
• Screw up plugs (1).
