Belarus 1025/1025.2/1025.3 Section F. Ganging up
F4

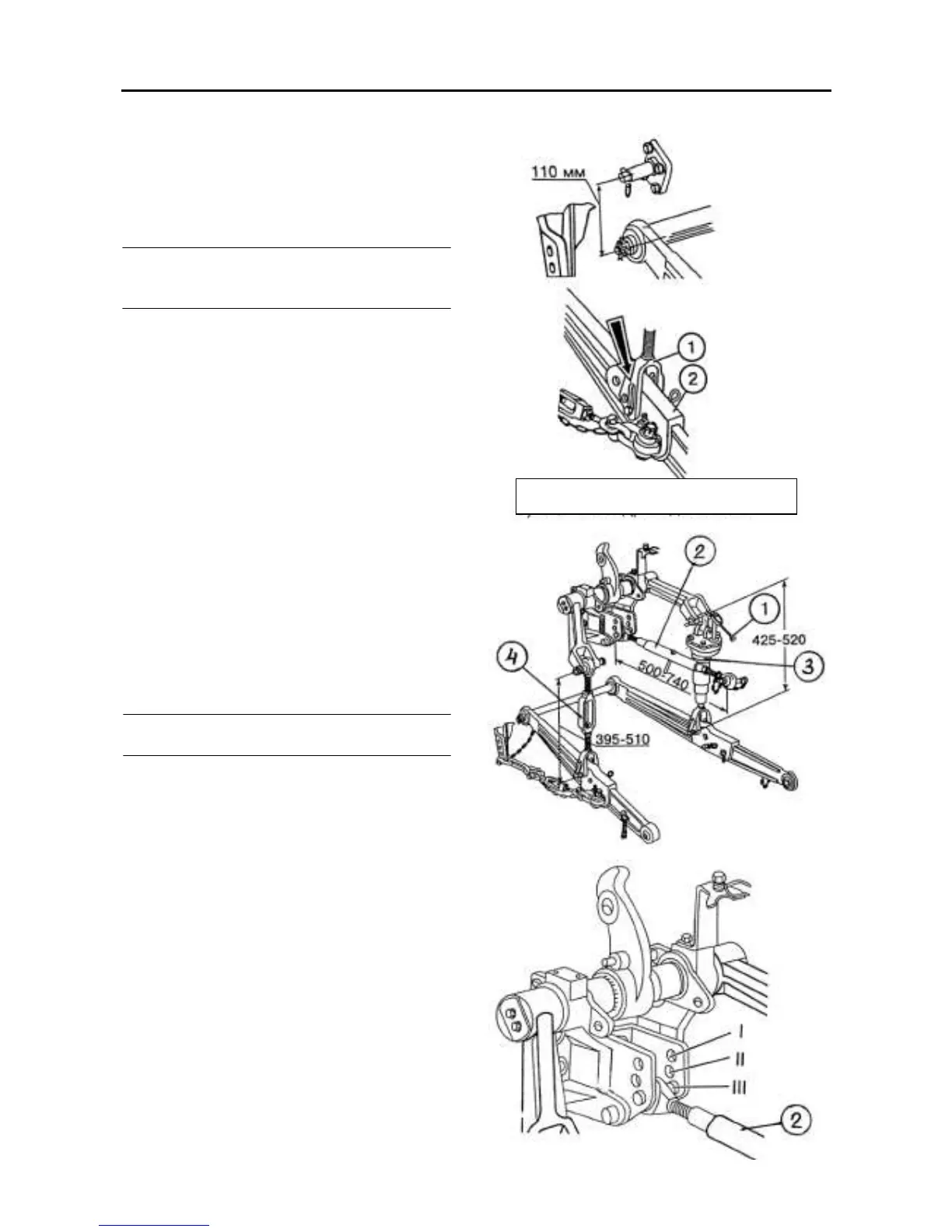

To follow field profile in lateral direction
when operating wide-cut implements,
connect braces (1) to lower tie-rods (2)
by means of longitudinal grooves (shown
with an arrow).
IMPORTANT! Grooves of brace yoke
should be behind the opening to avoid
brace damage.
Upper tie-rod and braces
Length of upper tie-rod (2) is adjusted
within 500...740 mm range.
Length of right-hand adjustable brace (3)
can be adjusted within:
• 425...520 mm range for RMU without
hydraulic lift;
• 580...665 mm range for RMU with
hydraulic lift.
Length is adjusted by rotating handle (1).
As dispatched from the manufacturer the
length of the right-hand brace is set to
standard value of 490 mm (RMU without
hydraulic drive), or 640 mm (RMU with
hydraulic lift).
Length of left-hand (non-adjustable)
brace (4) as dispatched from the
manufacturer, is also set to standard
value of 490mm or 640 mm.
IMPORTANT! Use only right-hand
brace to laterally adjust an implement.
Depending on plough depth and soil
nature, set upper tie-rod (2) in one of two
positions:
I —light soil and small plough depth
with power control;
II —average soil and average plough
depth with power control;
For transport purposes set tie-rod to position
III.
