Installation EAGLE40
Release
02
08/2020
31
The supply voltage is connected to the device casing through protective
elements exclusively.
2.4.1 Connecting the power supply and signal lines
Supply voltage
The supply voltage can be connected redundantly. Both inputs are
uncoupled. There is no distributed load. With redundant supply, the power
supply unit with the higher output voltage supplies the device on its own.
The supply voltage is electrically isolated from the housing.
With a non-redundant supply of the supply voltage, the device reports the
loss of a supply voltage. You can prevent this message by applying the
supply voltage via both inputs, or by changing the configuration in the
Management.
1 Power supply connection 1
1a 24 V DC
1b 0 V DC
2 Connection for the signal contact
3 Power supply connection 2
3a 0 V DC
3b 24 V DC

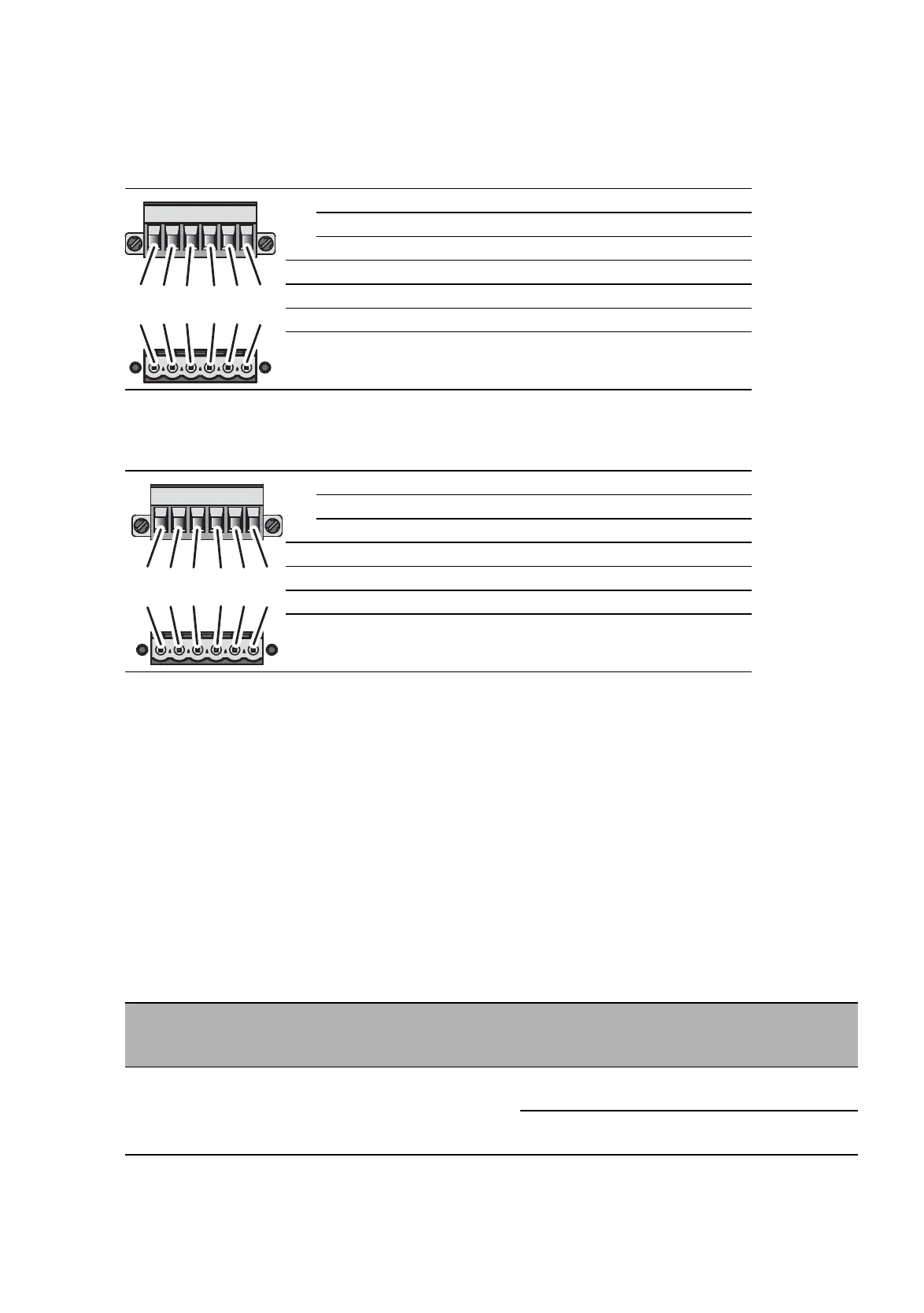

Table 7: EAGLE40-03 pin assignment: 6 pin, screwable terminal block (on the
top), connection to the device (at the bottom)
1 Power supply connection 1
1a 24 V DC
1b 0 V DC
2 Connection for the signal contact
3 Power supply connection 2
3a 0 V DC
3b 24 V DC
Table 8: EAGLE40-07 pin assignment: 6 pin, screwable terminal block (on the
top), connection to the device (at the bottom)
Type of the voltages
that can be
connected
Specification of the
supply voltage
Pin assignment on the device
DC voltage Rated voltage range DC
24 V DC ... 48 V DC
24 V DC Plus terminal of the supply
voltage
0 V DC Minus terminal of the supply
voltage
Table 9: Type and specification of the supply voltage, pin assignment on the
device
1a 1b223a 3b
1a 1b 2 2 3a 3b
