GETTING TO KNOW YOUR ROUTER
A) Modem (WAN) Connector
Connect the Ethernet cable
from the supplied Power
Modem to this port.
B) Wired (LAN) Connectors
Connect computers and other
wired network devices to these
ports using Ethernet cables.
C) USB 2.0 Ports
USB printers, disks, and other
USB devices plugged into these
ports will be shared on your
network. Each USB port has a
light that indicates its status.
Off: No USB device is
connected or the attached
USB device is not in use.
Blinking: Please wait to unplug
the device until the light turns off.
On: The USB device is connected
and being shared on your network.
D) Reset Button
This button is used to restart
your Router in rare cases when it
functions incorrectly. Resetting
the Router will preserve your
settings. This button may also
be used to restore the factory
default settings. Please see
the Troubleshooting section
for more information.
E) Power Connector
Insert the power cable
from the supplied Power
Modem to this jack.

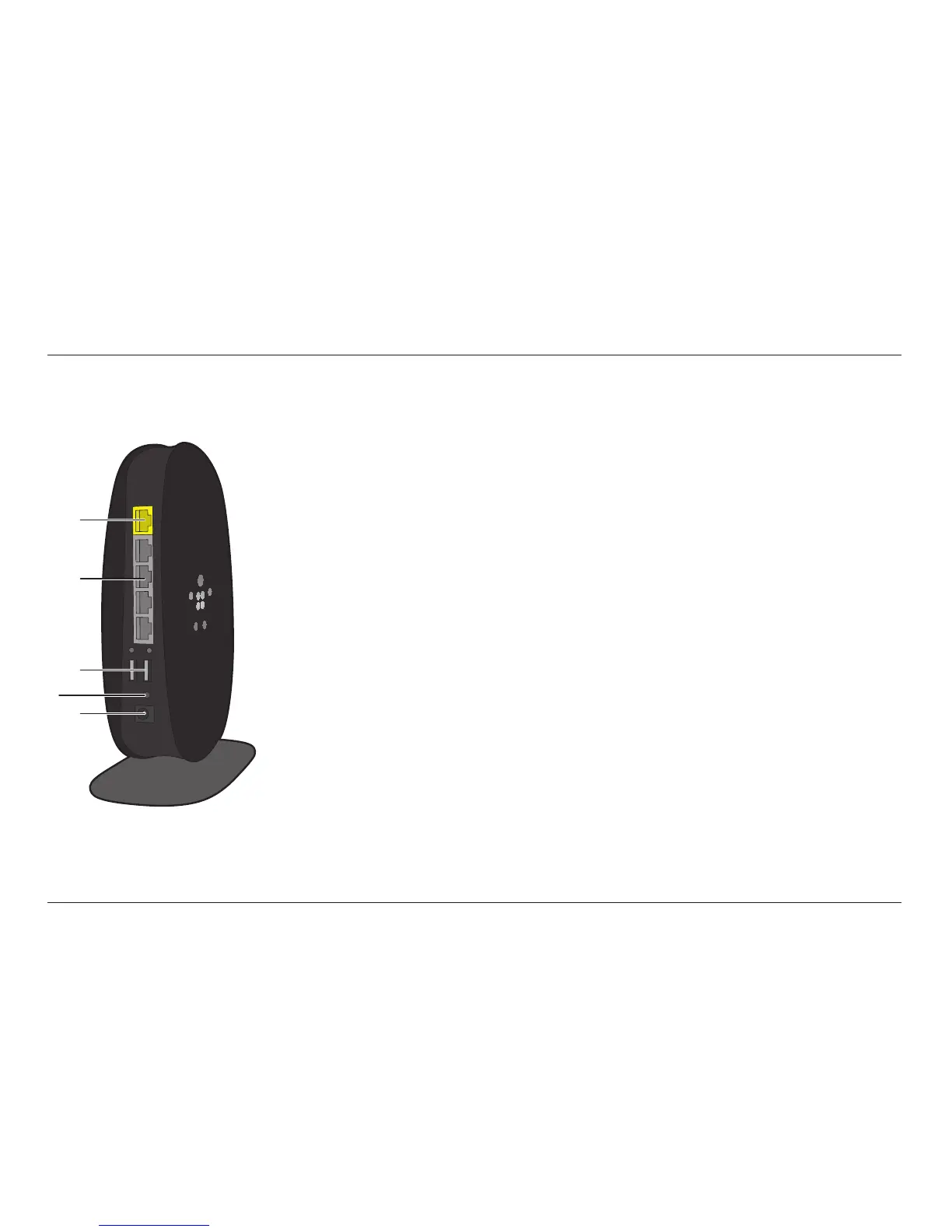

Back Panel
A
B
C
D
E
