SECTION ONE : TECHNICAL DATA
[1] ELECTRICAL AND RADIATION DATA
1. Nominal focal spot value ............................................ 0.8 mm (IEC)
2. Rated peak tube potential ............................................ 70 kVp
3. Rated tube current ....................................................... 10 mA
4. Maximum rated peak tube potential ........................... 70 kVp
5.
6. Power line frequency .................................................. 50/60 Hz
7. Exposure time ............................................................. 0.02 ~ 3 sec.
(ON and OFF are zero crossed.)
8. Timer accuracy ............................................................ ±1 pulse (1/50sec. for 50
Hz
,1/60sec. for 60
Hz
)
9. Inherent ltration ........................................................ 1.3 mmAl Equivalent
10. Added ltration ........................................................... 0.8 mmAl
11. Minimum ltration permanently in useful beam ........ 2.1 mmAl Equivalent at 70 kVp
12. Nominal roentgen output
a. Distal end of regular cone ........................................... 8.2mGy/sec. + 30 %, - 40 %
b. Distal end of long cone ............................................... 3.7mGy/sec. + 30 %, - 40 %
13. Source to skin distance
a. Regular cone ................................................................ 204 mm
b. Long cone .................................................................... 305 mm (OPTION)
14. Leakage technique factor ............................................ 70 kVp / 0.16 mA
0.16 mA is maximum rated continuous current
for 10 mA with a duty cycle 1: 60
15. Duty cycle ................................................................... 1: 60 (0.5 sec. exposure with 30 sec. interval)
16. Source to the base of cone distance ............................ 81 mm
17. Reference current time product ................................... 30 mAs (70kVp, 10mA, 3sec.)
18. Maximum earth leakage current ................................. 0.5 mA
19. Field size ..................................................................... Round 58 mm
20. Tolerance of the focal spot marking ............................ ±1 mm
21. Tolerance of target angle ............................................. 1˚
22. Measurement base of technique factors
a. Peak tube potential ...................................................... Peak tube potential of conducting half cycle
b. Tube current ................................................................ Average of tube current during one cycle of
line frequency
c. Exposure time .............................................................. Impulese of power line frequency

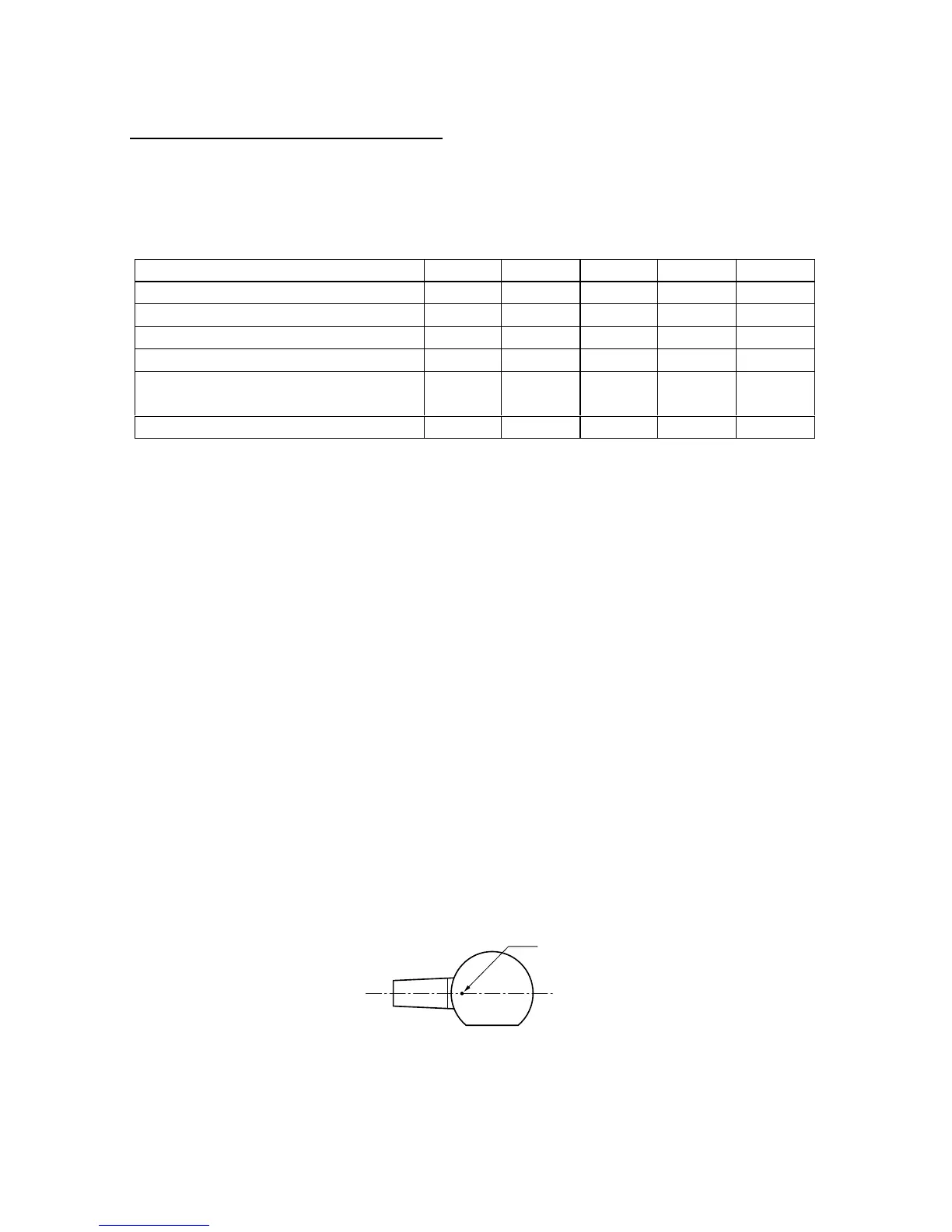

Reference axis
Focal spot marking
Rated Line Voltage
[Vac]
110 120 220 230 240
Minimum LinVoltage
[Vac]
99 108 198 207 216
Maximum Line Voltage
[Vac]
121 132 242 253 264
Rated Line Power
[kVA]
1.3 1.3 1.3 1.3 1.3
Rated Line Current
[Aac]
11.4 10.8 5.7 5.6 5.5
Maximum Line Current
[Aac]
12.6 11.9 6.3 6.2 6.1
(Internal Resistance [
Ω
]
(0.19~0.46) (0.22~0.53) (1.12 max) (1.20 max) (1.27 max)
Range of Line Voltage Regulation
[%]
2 ~ 5 2 ~ 5 0 ~ 3 0 ~ 3 0 ~ 3
-3A-
From 2006 April
