3 Blue
4 Brown
5 Red
6 Yellow
7 Gray
8 Green/Yellow

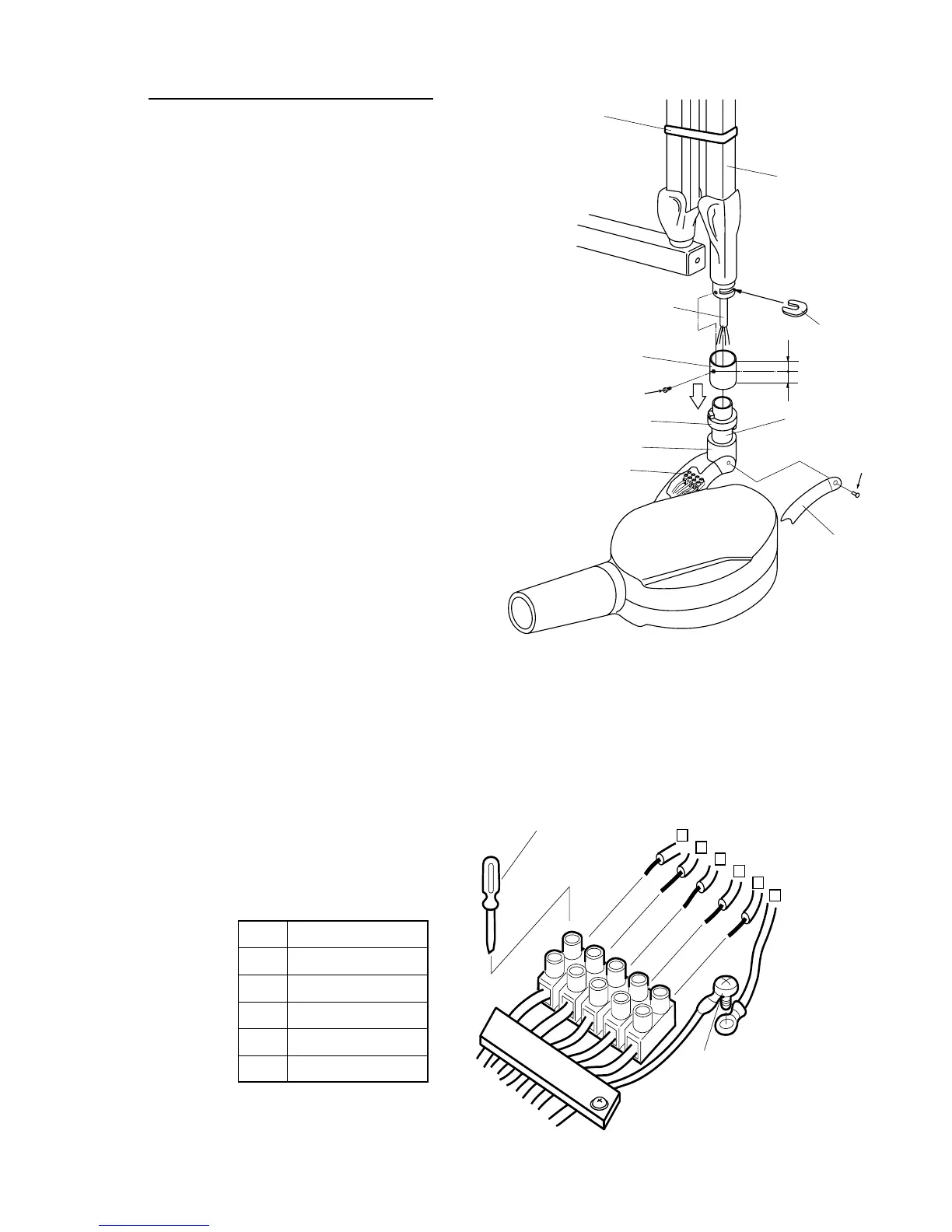

FIGURE 22
1. Remove a screw (a) on arm collar, and place the arm
collar over the stopper ringon the head shaft.
(Direction of arm collar is shown in FIGURE 21.)
2. Remove the yoke inside cover by loosening
screw(b).
3. Making sure the stopper ring and arm collar is
placed on the head shaft, insert the wirings of bal-
ance arm through the head shaft to the head yoke.
4. Insert the head shaft into balance arm assembly, and
while holding the head in position, install head key
securely into retaining groove.
5. Slide the arm collar upward to proper position and
secure it in place with a screw (a).
6. Loosen 5 screws on the terminal using a small dia.
screw driver, and insert the wirings of balance arm
assembly into the terminal according to the color.
(FIGURE 22)
7. Retighten the screws on the terminal and confirm
that the wirings are xed on the terminal.
8. Remove M5 Phillips head screw from earth terminal
and secure No.8 wiring together to earth terminal.
9. Reattach the yoke inside cover with a screw.
10. Remove arm holding band.
From 2004 July
