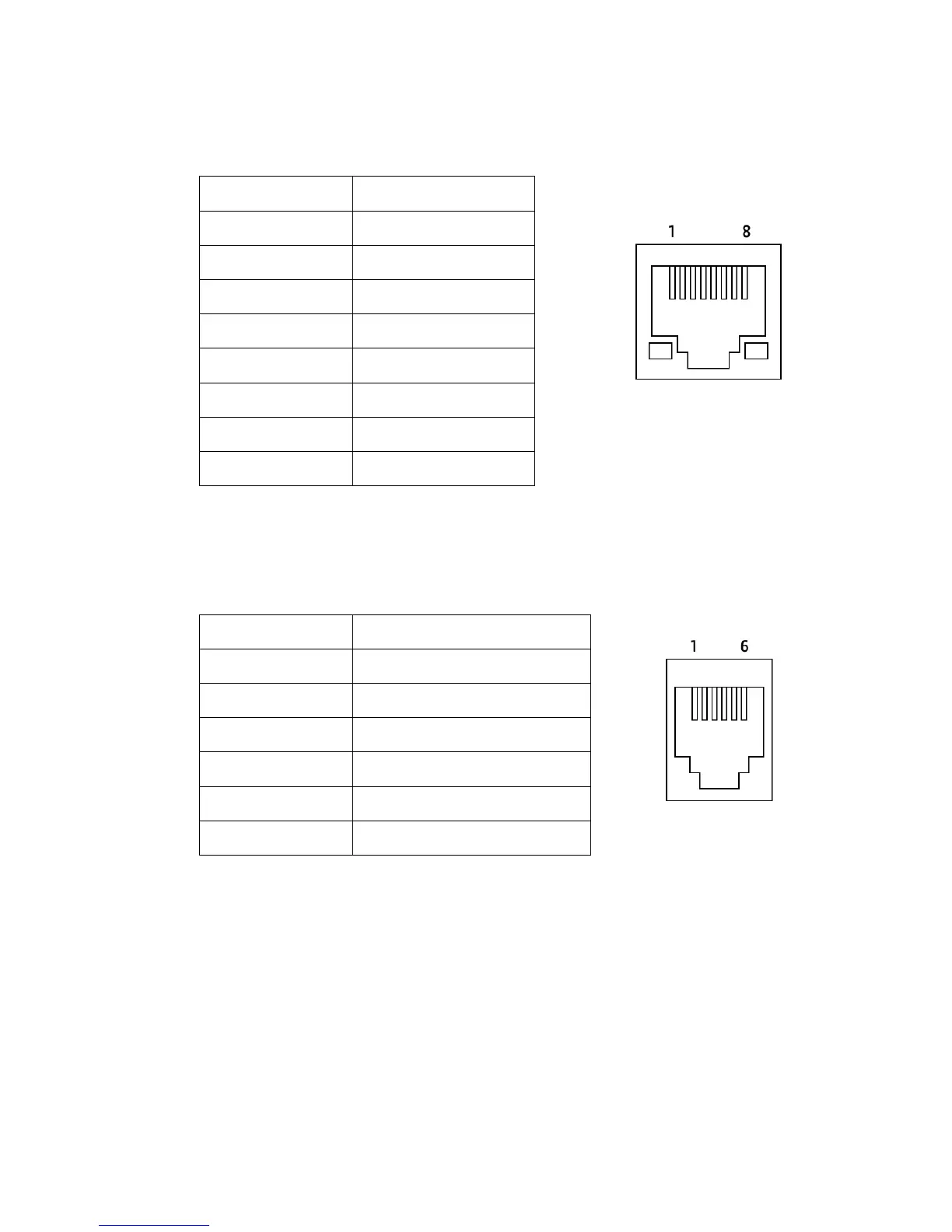

Ethernet Connector (RJ45)
Cash Drawer (RJ11)
Pin No.
Signal Name
1
TX+
2
TX-
3
RX+
4
NC
5
NC
6
RX-
7
NC
8
NC
Pin No.
Signal Name
1
Frame GND
2
Drawer kick-out drive
3
Drawer open/close signal
4
+24V
5
NC
6
Signal GND
