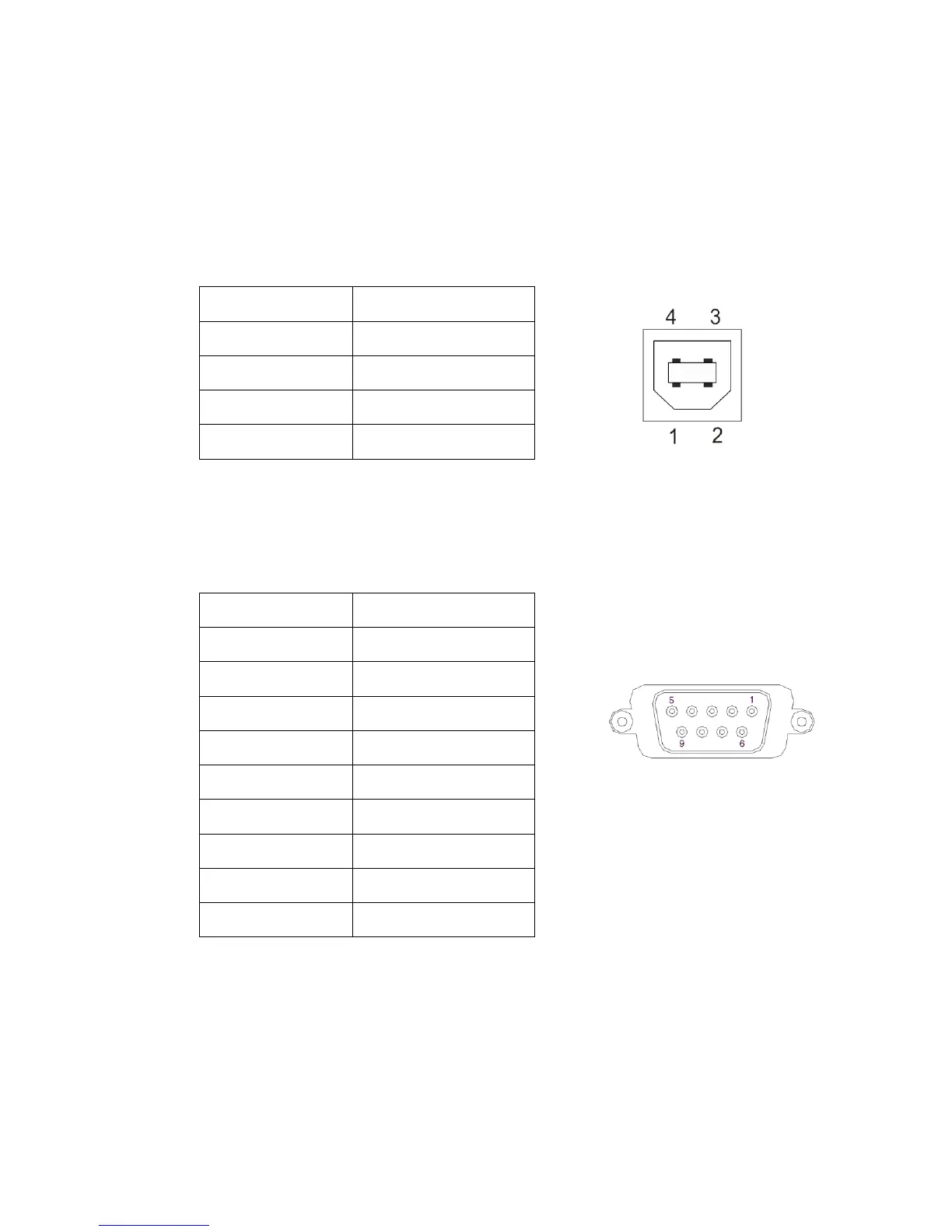

5 Connector Pinouts
USB Connector (type B)
Pin No.
Signal Name
1
VBUS
2
D-
3
D+
4
GND
Serial Connector (DB9F)
Pin No.
Signal Name
1
DCD
2
TxD
3
RxD
4
DTR
5
GND
6
DSR
7
CTS
8
RTS
9
RI
