Bematech MP-2100 TH - Appendix V Drawer Activation

User’s Manual
30
Appendix V
Drawer Activation
A connector is located in your MP-2100 TH's rear for the drawer activation. Its pinning is described below:

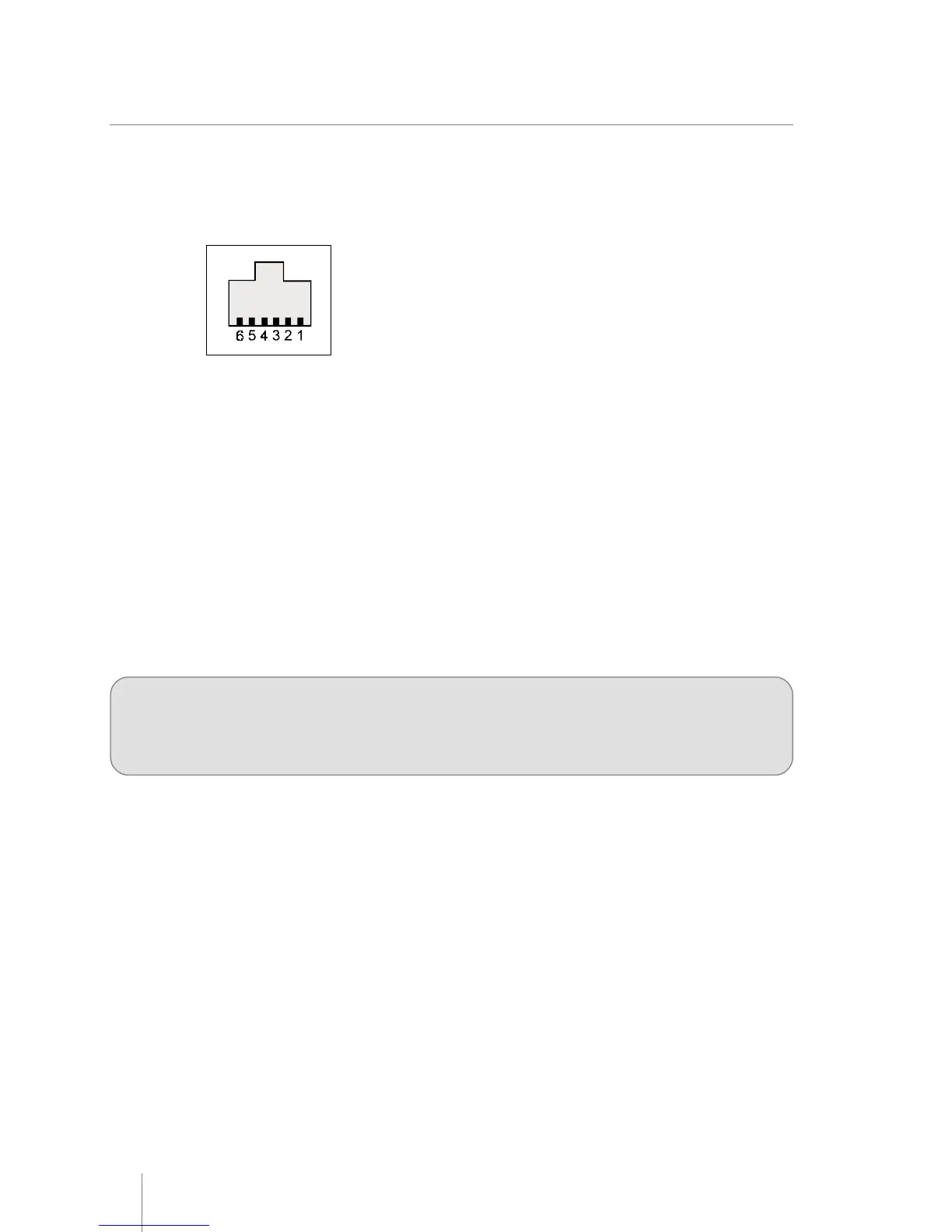

Figure 18
• Pin 1 = GND
• Pin 2 = Solenoid activation for drawer opening
• Pin 3 = Sensor of open/close drawer (the Printer comes back 1 for sensor open and 0 for sensor closed).
• Pin 4 = +24V
• Pin 5 = NC
• Pin 6 = GND
IMPORTANT
Watch the drawer's mark before connecting it to the MP-2100 TH, since inverting the drawer may
damage the printer.
