Bematech MP-4000 User Manual

MP-4000 TH . Revision 1.2
25

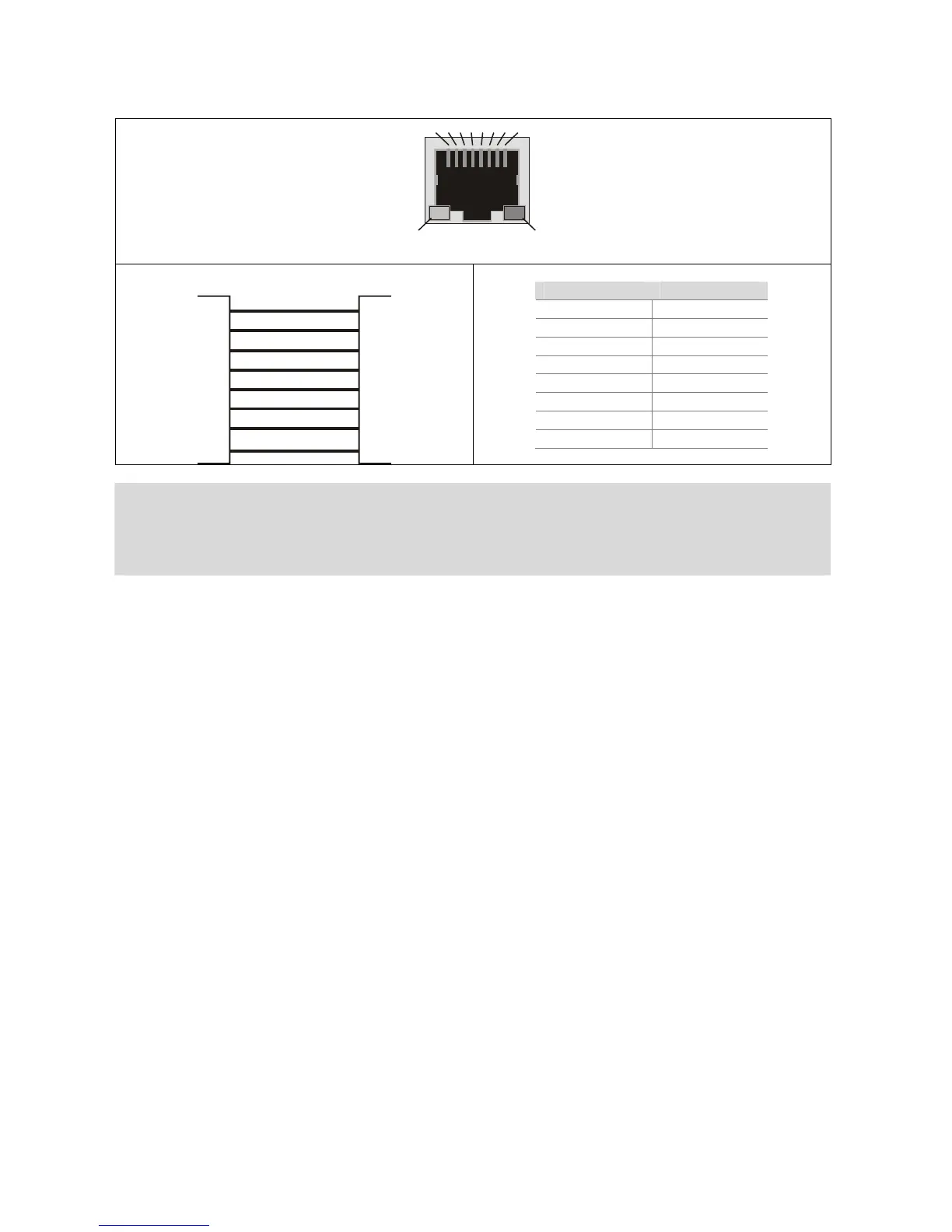

32.2. Cable connection
8 7 6 5 4 3 2 1
10/100 Mbps LED Link LE
D
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Male
RJ-45
M
a
l
e
RJ-45
Pin Signal
1 TD+
2 TD-
3 RD+
4 TCT
5 RCT
6 RD-
7 NC
8 GND
ATTENTION!
The configuration of this cable is to connect the printer to a Hub or Switch.
To connect the printer directly to a microcomputer, using the Ethernet interface, use a
standard crossover cable.

Bematech MP-4000 Specifications

General

Auto Cutter	Yes
Printing Method	Thermal
Print Speed	250 mm/s
Paper Width	80 mm
Interface	USB, Serial, Ethernet
Connectivity	USB, Serial, Ethernet
Humidity	80% RH
