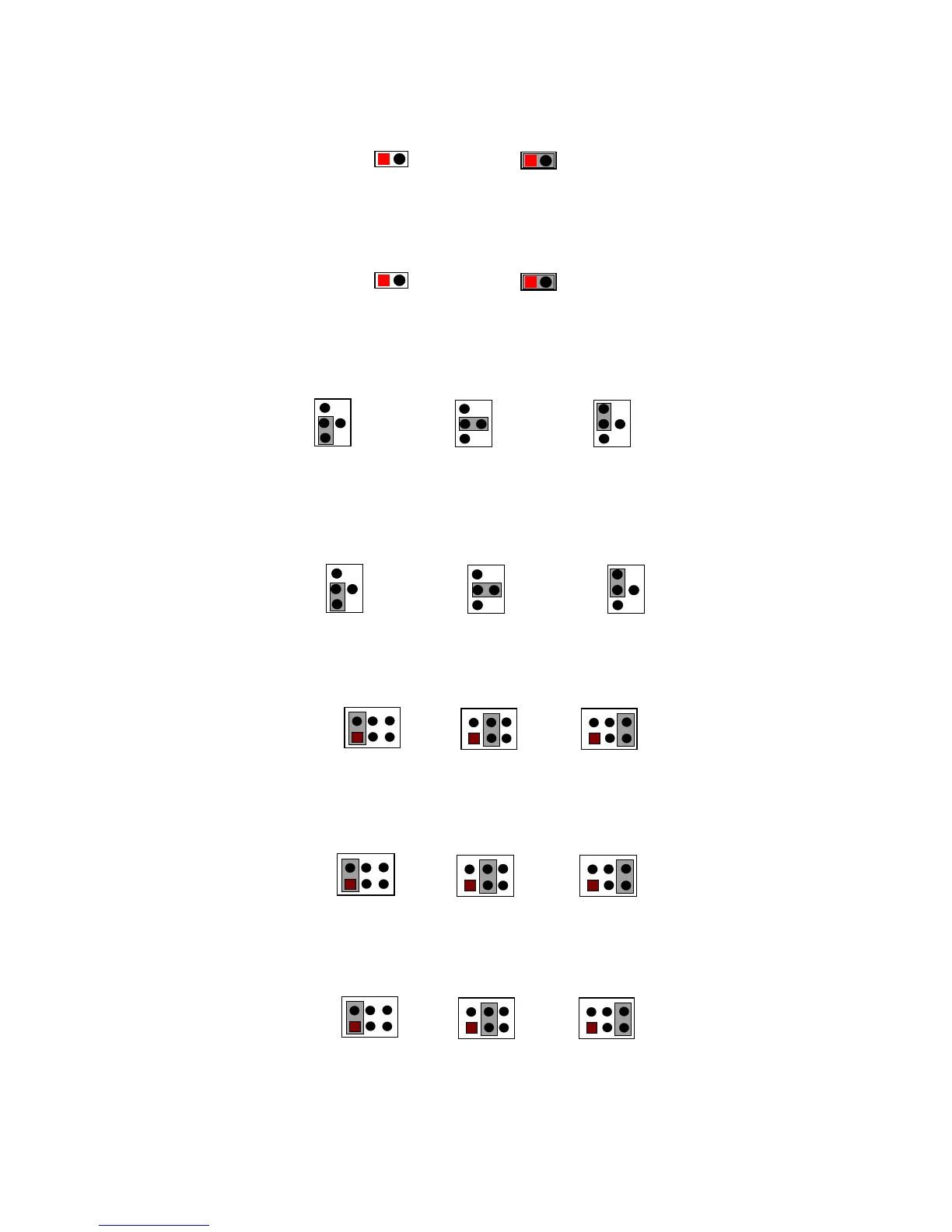

(1) JBAT (2-pin): Clear CMOS Setting
1-2 Closed：Clear CMOS
1-2 Open: Normal；
1
1
(2) ME_RTC (2-pin): Clear ME_RTC Function Setting
1-2 Closed：Clear ME_RTC.
1-2 Open: Normal；
1
1
(3) JP3 (4-pin): INVERTER Back Light VCC 3.3V/5V /12V Select
1
3
5
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
2-4 Closed:
Inverter Backlight
VCC= 3.3V
3-4 Closed:
Inverter Backlight
VCC= 5V;
6-4 Closed:
Inverter Backlight
VCC= 12V;
(4) JP4 (4-pin): LVDS VCC 3.3V/5V/12V Select
4-6 Closed:
VCC= 12V.
1
3
5
3-4 Closed:
VCC= 5V;
2-4 Closed:
VCC=3.3V;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
(5) JCOMP1 (6-pin): COM1 Port Pin9 Function Select
3-4 Closed : +12V;
1-2 Closed: RS232;
5-6 Closed : +5V.
1
1
1
(6) JCOMP2 (6-pin): COM2 Header Pin9 Function Select
3-4 Closed : +12V
1-2 Closed: RS232;
5-6 Closed : +5V
1
1
1
(7) JCOM2 (6-pin): COM2 Header RS232/RS485/RS422 Function Select
3-4 Closed : RS485;
1-2 Closed: RS232;
5-6 Closed : RS422.
1
1
1

Bematech SB1015 Specifications

General

Processor cache	2 MB
Processor cores	4
Processor model	J1900
Processor family	Intel® Celeron®
Processor frequency	2 GHz
DC-in jack	Yes
Serial ports quantity	3
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
Operating system installed	-
Display diagonal	15 \
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Internal memory type	DDR3L-SDRAM
Power supply	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
HDD size	2.5 \
HDD interface	SATA
Storage media	HDD
Total storage capacity	320 GB
Graphics card	HD Graphics
Graphics card manufacturer	Intel
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Audio system	ALC887
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	All-in-One
Product color	Black

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	364 mm
Height (with stand)	326 mm
Weight (with stand)	5910 g
