Bematech SB1015 User Manual

6
3 Setup and Driver Installation

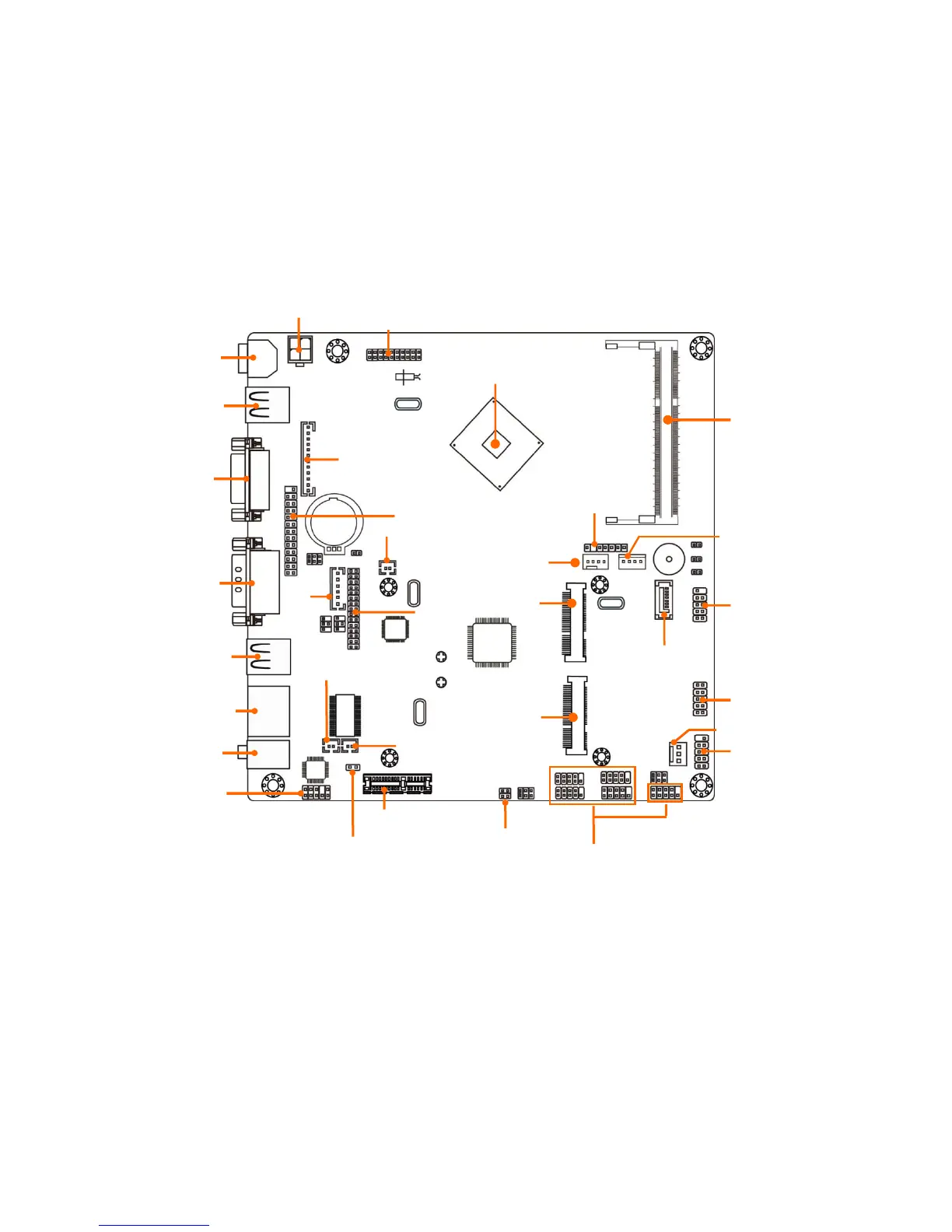

3.1 Motherboard Connectors
ATX12V
Power Connector
DDR3L
SODIMM Slot
VGA Port
Intel CPU
PCI Express x1 Slot
CPUFAN1 Header
LVDS Header
Front Panel
Audio Header
Front Panel Header
DC12V
Power-in
Connector
M-SATA
Connector
LVDS
Inverter
SATAII Port
(SATA1)
USB 2.0 Port
Over USB 3.0 Port
USB 2.0 Ports
RJ-45 LAN Port
Line-Out
Connector
SATA Hard Disk
Power-Out Connector
USB 2.0 Header
Mini-PCIE
Connector
PS2 KB/MS Header
VGA Port Header
SPEAKCON1
SPEAKCON2
JP2
TX-RXCOM2 Header
COM1 Port
HDMI Port Header
GPIO Header
HDMI_SPDIF Header
Parallel Port Header
SYFFAN1 Header
Serial Port Headers
(COM6/5/4/3/2)

Bematech SB1015 Specifications

General

Processor cache	2 MB
Processor cores	4
Processor model	J1900
Processor family	Intel® Celeron®
Processor frequency	2 GHz
DC-in jack	Yes
Serial ports quantity	3
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
Operating system installed	-
Display diagonal	15 \
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Internal memory type	DDR3L-SDRAM
Power supply	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
HDD size	2.5 \
HDD interface	SATA
Storage media	HDD
Total storage capacity	320 GB
Graphics card	HD Graphics
Graphics card manufacturer	Intel
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Audio system	ALC887
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	All-in-One
Product color	Black

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	364 mm
Height (with stand)	326 mm
Weight (with stand)	5910 g
