2.4 Rear panel I/O connectors

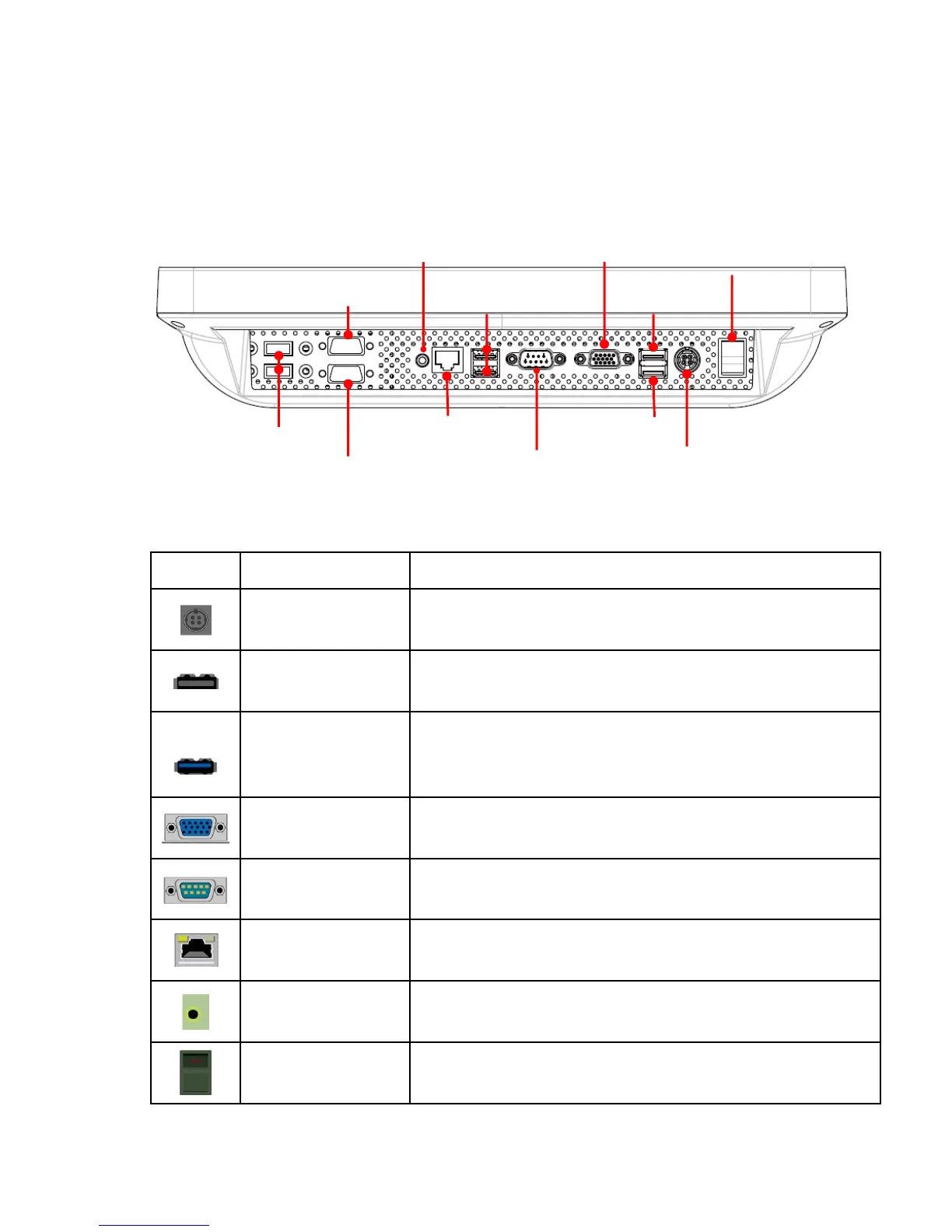

At the rear panel of the SB1015 is a row of external I/O device connectors
detailed as follows:
Port
Name
Function
DC-in 12V Power
Connector
Connect compatible power adapter to provide power
supply for the system.
USB 2.0 Port
Connect USB keyboard, mouse or other devices
compatible with USB specification.
USB 3.0 Port
Connect USB keyboard, mouse or other devices
compatible with USB specification. USB 3.0 ports
supports up to 5Gbps data transfer rate.
VGA Port
Connect second display device that support VGA
specification.
Serial Port
Connect external devices that supports serial
communications interface.
RJ-45 LAN Port
This connector is standard RJ-45 LAN jack for
Network connection.
Line-Out
Connector
Connect external speaker, earphones, etc for system
audio output.
Power Switch
For user to boot/shutdown system.
VGA Port
Line-OUT
DC12V
Power-in
Connector
USB 2.0 Ports
RJ-45 LAN Port
USB 2.0 Port
USB 3.0 Port
COM1 Port
USB 2.0 Ports
COM2 Port
COM3 Port
POWER
SWITCH

Bematech SB1015 Specifications

General

Processor cache	2 MB
Processor cores	4
Processor model	J1900
Processor family	Intel® Celeron®
Processor frequency	2 GHz
DC-in jack	Yes
Serial ports quantity	3
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
Operating system installed	-
Display diagonal	15 \
Display brightness	250 cd/m²
Display resolution	1024 x 768 pixels
Touchscreen technology	Resistive
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Internal memory type	DDR3L-SDRAM
Power supply	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
HDD size	2.5 \
HDD interface	SATA
Storage media	HDD
Total storage capacity	320 GB
Graphics card	HD Graphics
Graphics card manufacturer	Intel
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	8 - 80 %
Audio system	ALC887
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Chassis type	All-in-One
Product color	Black

Weight and Dimensions

Depth (with stand)	230 mm
Width (with stand)	364 mm
Height (with stand)	326 mm
Weight (with stand)	5910 g
