Bematech SB1015 - Hardware Installation; Magnetic Script Reader (MSR) Installation

24
4 Hardware Installation
4.1 Magnetic Script Reader (MSR) Installation *

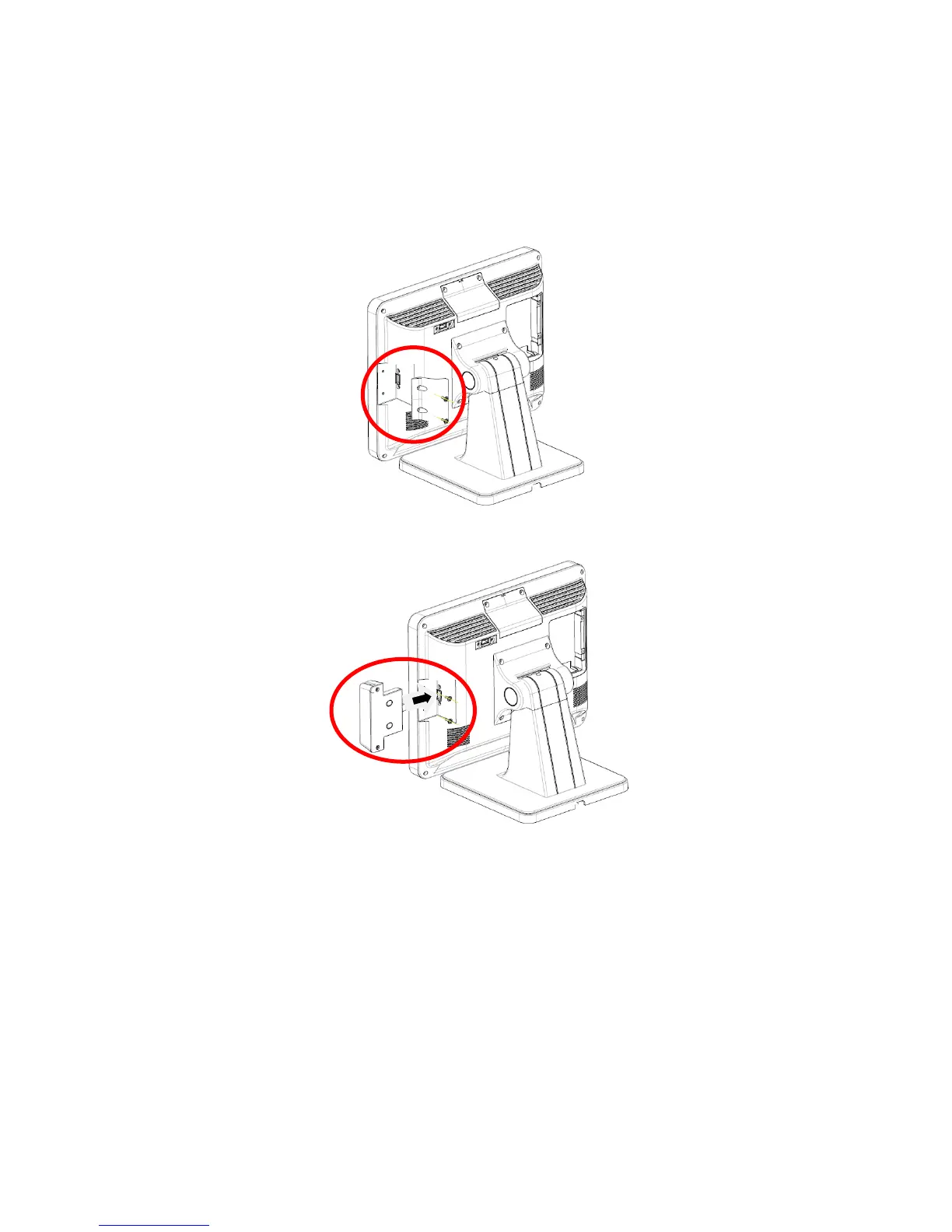

1. Remove the MSR mount cover from the monitor.
2. Insert MSR module. Make sure reader has been properly connect to the monitor USB port
then use the 2 screws to fix the MSR.
* Optional peripheral
