18 Bend-Tech Dragon A150
Troubleshooting Guide
Cutting Issues
02

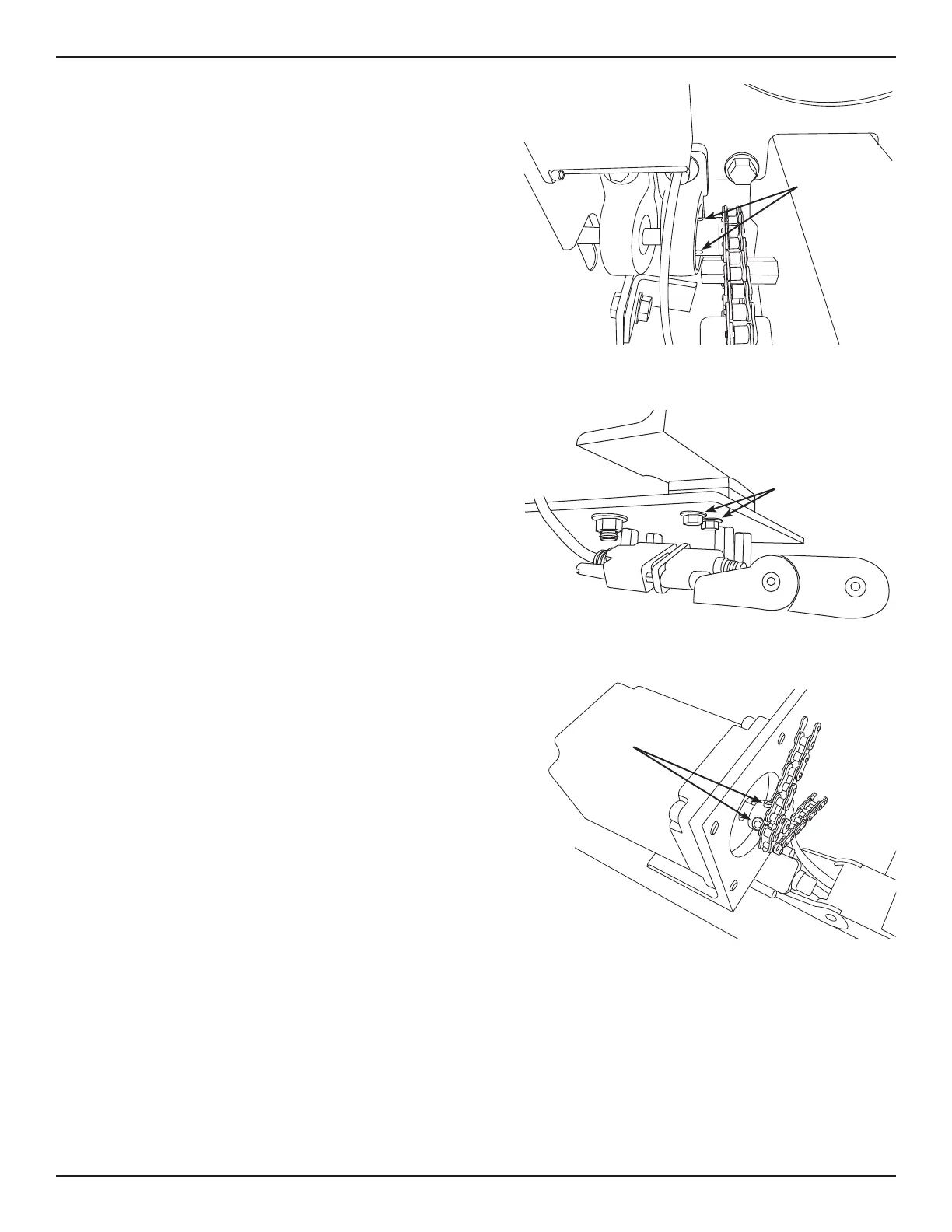

4. Using a 3mm Allen wrench, ensure the X
Chain Set Screws are tight.
5. Ensure the chain is tight on the Y gear and
motor. If the Y chain is loose the Operator
will be required to re-tension the chain.
Using a ½ in. wrench, loosen the Y motor
mount bolts on the bottom of the Trolley
just enough to slide the motor and mount to
the outside, tensioning the chain. Holding
tension steady, re-tighten the Y Motor Block
Adjustment Bolts.
6.
Rotation Set Screws are tight.
3mm Allen
wrench
To Next Page
