The System

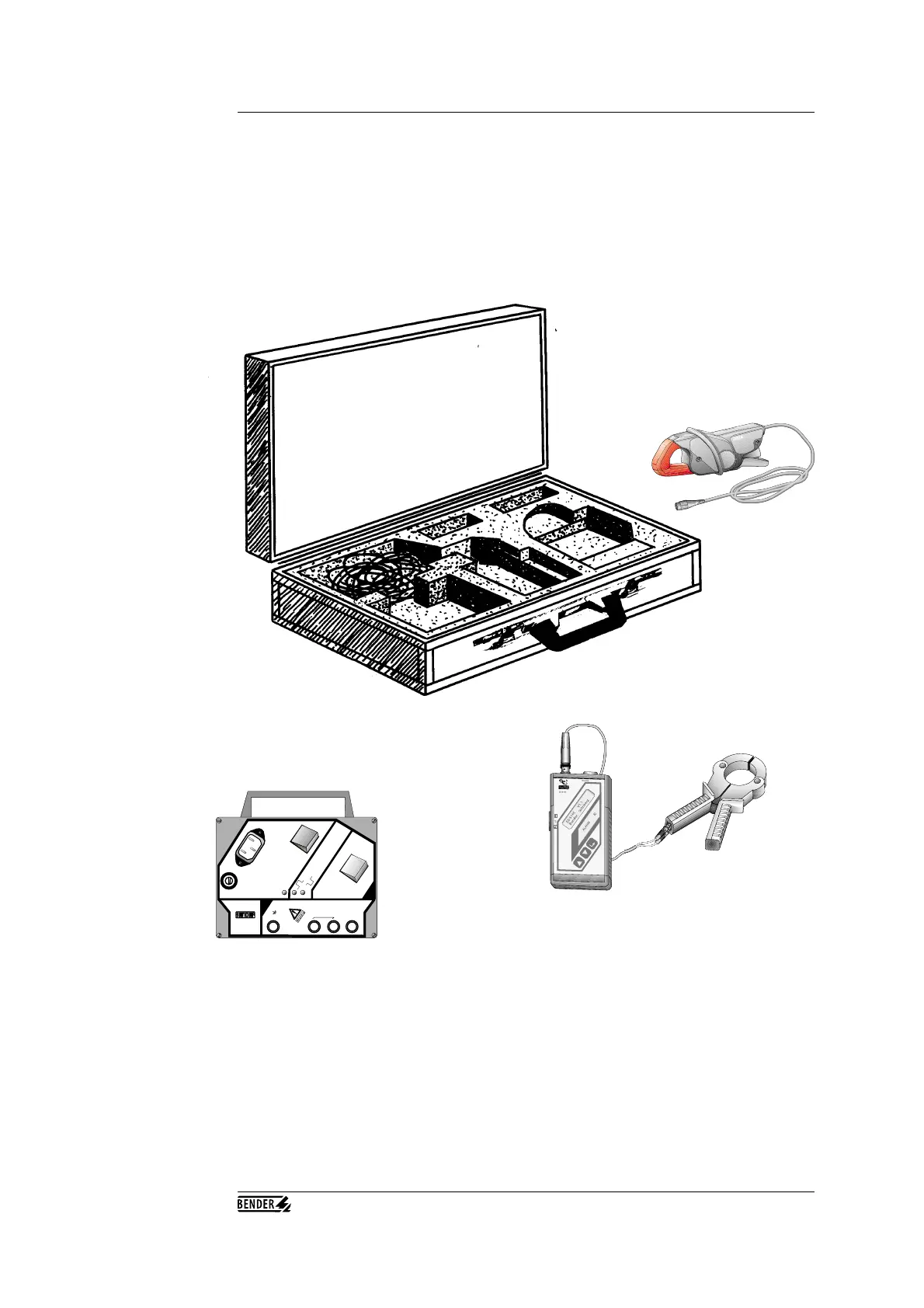

Components at a
Glance
PGH185
100m
A
10m
A
25m
A
Imax
ON
ON
Us
L1(+)
L2(-)
L3
AC/DC
aluminium case with
carrying strap
PSA3020
clamp-on probe
PSA3052
clamp-on probe
EDS165 Evaluator
PGH185 Test device
The primary function of the EDS3065 is that of an insulation fault location device in IT systems.
The individual components of the EDS3065 are used in combination for this purpose.
Not illustrated:
Power supply lead (europlug with connector for cold conditions) for PGH185 Insulation Fault Test
Device.
Safety measuring leads, 3 x black and 1 x green/yellow.
Safety claw grip to connect the PGH185 with the system conductors and PE.
BNC adapter unit/banana plug to connect measuring current transformers.
Banana plug.
Accumulator charging set for EDS165.
Accessory: clamp-on probe PSA3165 (internal diameter 100 mm)
