Bender EDS3065 - Aluminium Case; EDS165 Insulation Fault Evaluator

14
TGH1266E - 05/04
Product Description
Aluminium Case
430
310
340
145 155
EDS165
Insulation Fault
Evaluator
BNC-socket for clamps or
measuring current transformers
RS232-interface
Alarm-LED
socket for power pack
keys
LC-display
selection switch
The operating mode switch on the EDS165
has three positions:
Middle Position: OFF - the device is
switched off.
Position I∆s: Function as evaluator
within an EDS3065 or
EDS470 system (EDS
mode)
Position I∆n: Function as residual
current measuring
device (RCM mode)

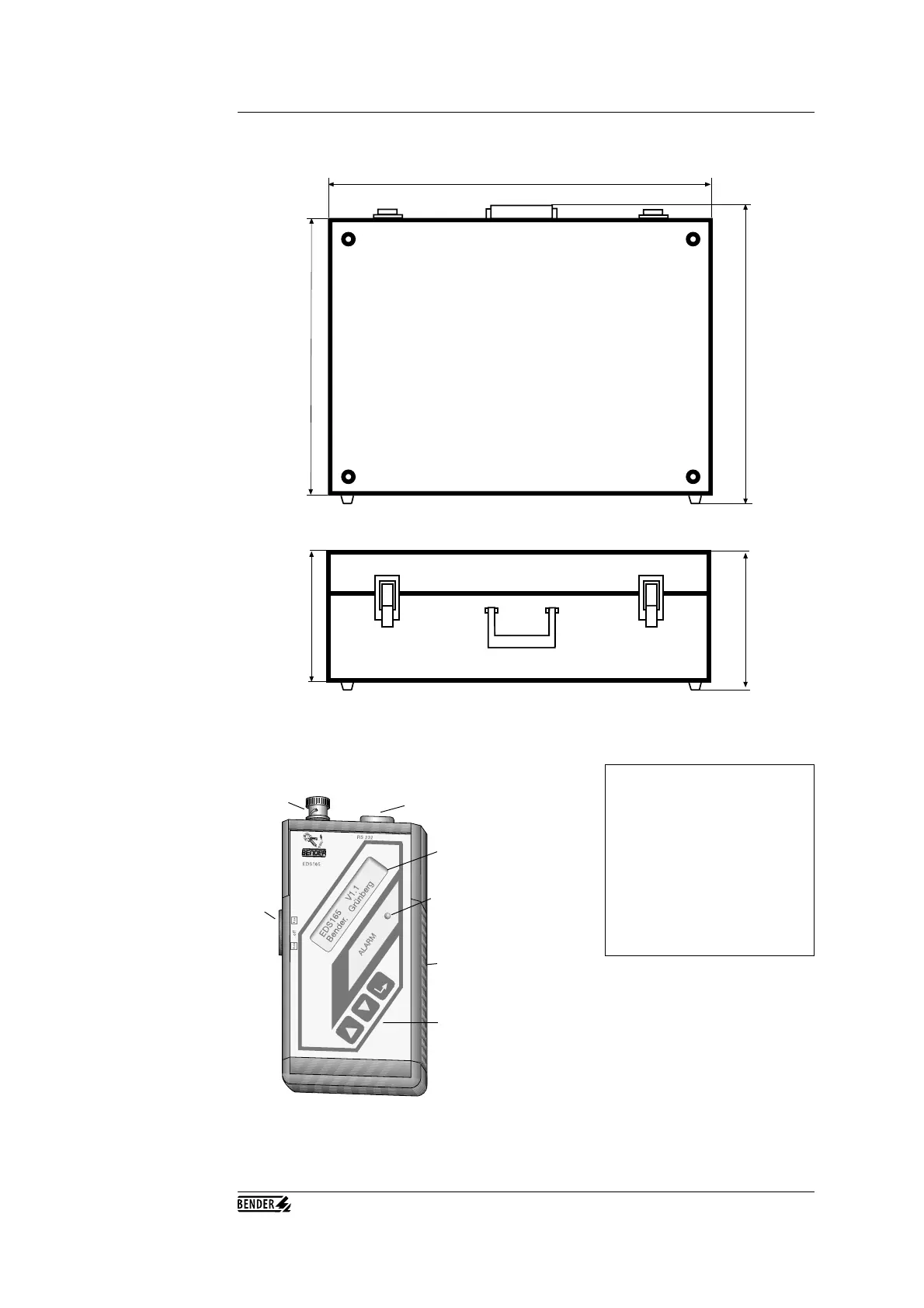

All dimensions in mm
All the components of the EDS3065 are accommodated in a stable aluminium case with foam inlays.
