5 Operation and Setting
Factory Settings
Settings on the
EDS165 Evaluator
Switching On the
EDS165
Three buttons are used to operate the EDS165:
The components of the EDS3065 are delivered with factory settings, which are suitable for many
standard applications. The following list shows the factory settings for the individual devices:
PGH185 Test Device
I
max
= 25 mA
EDS165 Insulation Fault Evaluator (with the switch in position I
∆s
)
Alarm storage: off
Buzzer: on
Frequency: 50 Hz
Sensor: Clamp-on Probe PSA3052
Except for the changeover of the maximum test current, all the settings to the EDS3065 system are
performed on the EDS165 Insulation Fault Evaluator.

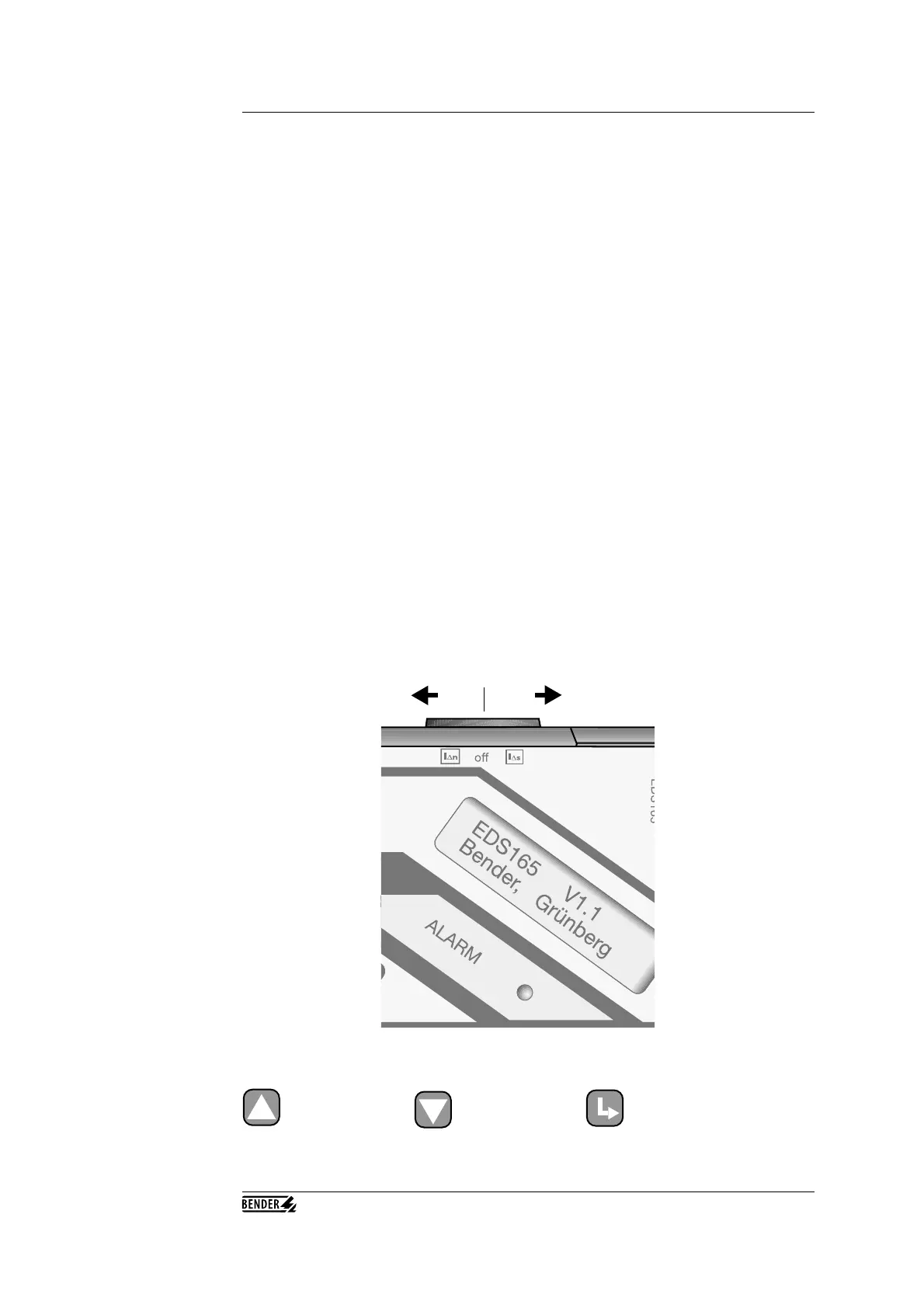

The operating mode selector switch on the left-hand side of the EDS165 has three positions:
middle position : OFF - the device is switched off
right-hand position : I
∆s
- function as an insulation fault evaluator within the EDS3065
or one within the EDS470 system (EDS mode)
left-hand position: I
∆n
- function as a residual current measuring device
(RCM mode)
operating mode selector switch
I
∆n
I
∆s
UP
DOWN
ENTER
