Operation and Setting
The EDS165 is operated and set using three control buttons and the LCD display. When making
any of the settings, you must press the relevant control buttons for about 1 second. The different
settings which are possible in the EDS mode (position I
∆s
) are described below.
If you move the operating mode selector switch to position I
∆
, the EDS165 will be in the EDS mode.
As soon you have done this, you will see the display menu (see above).
The EDS165 in
the EDS-Mode
The EDS165
Display
From the display menu, press the <ENTER> key to reach the setting menus. The <ENTER> key
activates whichever sub-menu you have called up; use the <UP> key to move to the next menu.

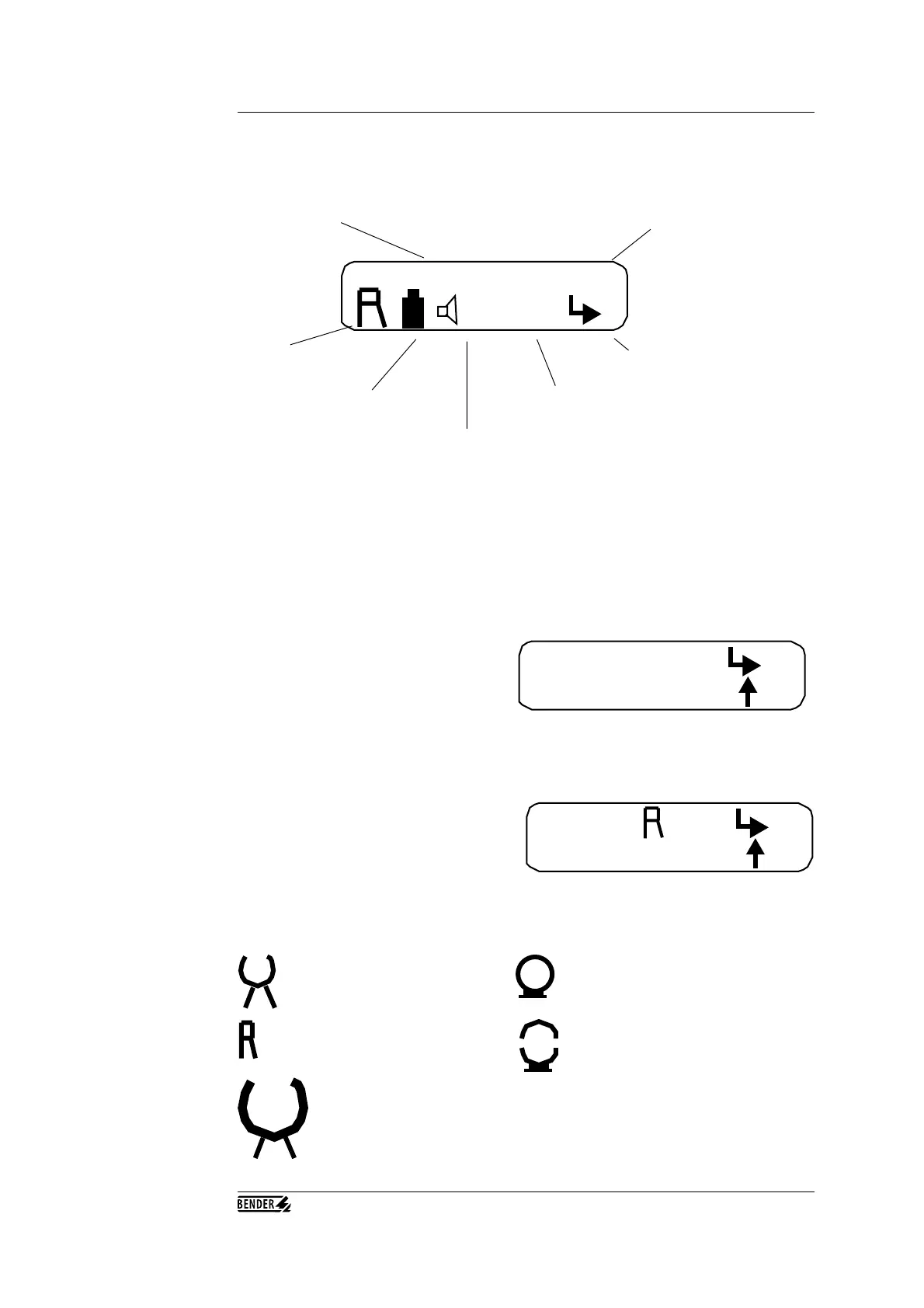

Here is an example of a display on the EDS165 in the EDS mode:
test current (measuring
value)
response value exceeded
go on with <ENTER>
adjusted frequency of the
electrical system
buzzer is activated
clamp-on probe is
correctly connected
indication of battery
charging
Ι∆s=8 mA
ALARM
50Hz
Menu 1 (m1) allows you to set the sensor
which is connected. The possible settings are:
clamp-on probes
split-core measuring current transformers
closed measurng current transformers.
Press <ENTER> to reach the menu for modification; press <UP> to move on to the next menu,
m2.
The sensor which is set at present is the PSA3052
clamp-on probe. Press <ENTER> to accept this
setting and then return to the display; or use the
<DOWN> key to set the PSA3020 clamp-on
probe and/or split-core measuring current transformers or closed measuring current transformers.
The following settings are possible:
PSA3052 Clamp-on Probe Standard Measuring Current Trans-
formers: W1-S35 ...
W5-S210; W1-P ... W4-P, WR ...
PSA3020 Clamp-on Probe Split-Core Measuring Current Trans-
formers in the
WS ... series
PSA3165 Clamp-on Probe
sensor:
sensor:
m2:
m1: set sensor
