Replacing the
Accumulators
Operation and Settings
The charge status of the accumulators or the batteries is indicated in the display menu. The
illustration below shows an accumulator or a battery whose capacity is more or less half used up.
When accumulators are used, the battery status display only shows about 75% even when the
accumulator is fully charged. This is because of the rather lower voltage on the accumulators
compared with batteries.

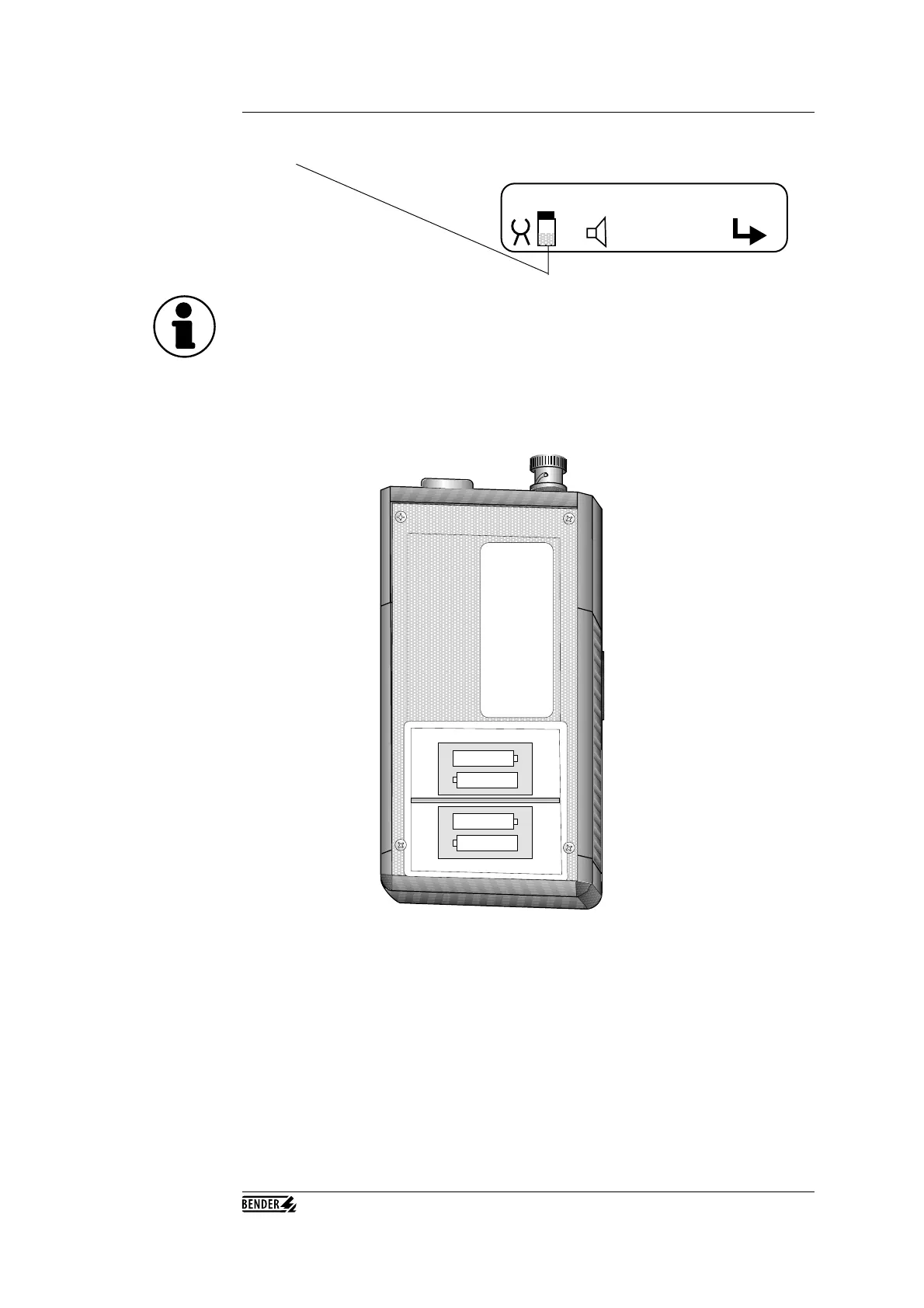

The battery compartment is located on the rear side of the EDS165; it contains the batteries or the
re-chargeable accumulators.
To change the accumulators, the large cover flap on the rear side of the EDS165 has to be opened.
To do this, carefully lift off the flap with the use of a screwdriver (blade width: 3-5 mm).
Then insert the new accumulators according to the imprinted positioning diagram.
Also note that the device parameters that have been set will remain the same when the batteries are
replaced.
