43
TGH1266E - 05/04
Practical Use
Coupling unit
AGE185 for higher
voltages
Technical data
Insulation coordination acc. to IEC 664-1
Rated insulation voltage AC1000 V
Rated impulse withstand voltage/contamination level 4 kV / 3
System being monitored
Nominal voltage range AC 45-400 Hz, 500 ... 790 V
Nominal voltage range DC 400 ... 960 V
Tests of electromagnetic compatibility (EMC)
Interferences acc. to EN 50082-2
Emissions acc. to EN 50081:
Emissions acc. to EN 55011/CISPR11 class B
Ambient temperature during operation -10°C ... +55°C
Storage temperature range -40°C ... +70°C
Climatic class acc. to IEC 721 3K5, except condensation and formation of ice
Connection/cable:
Safety connector with connection wire, green/yellow 1mm
2
Protection class acc. to EN 60529 IP 30
Weight approx. 200 g

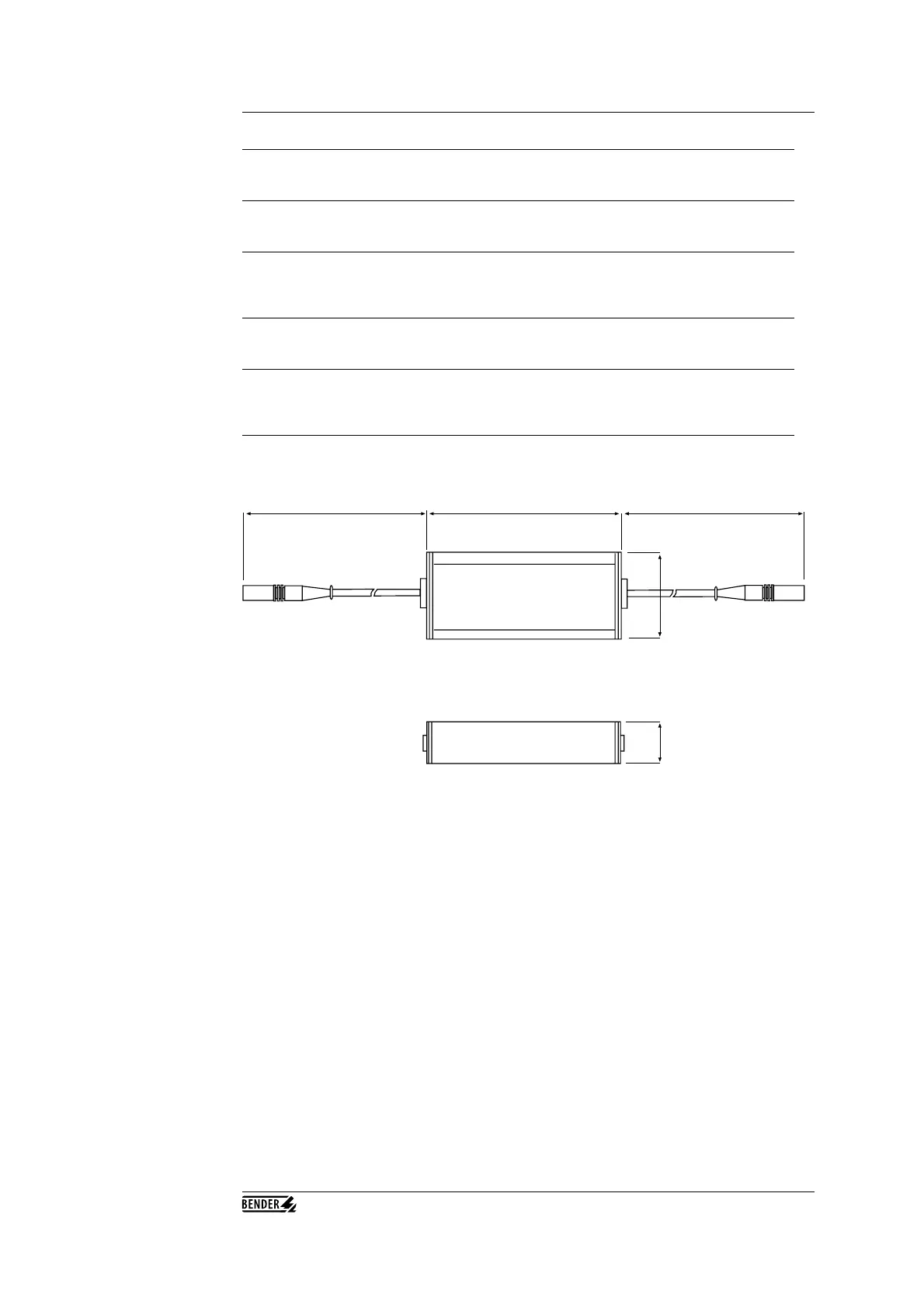

ca. 1950
88.5
ca. 450
42
21
Dimensions of the coupling unit AGE185; all dimensions in mm.
