iso685-D-B_D00177_05_M
_XXEN/07.2017
12

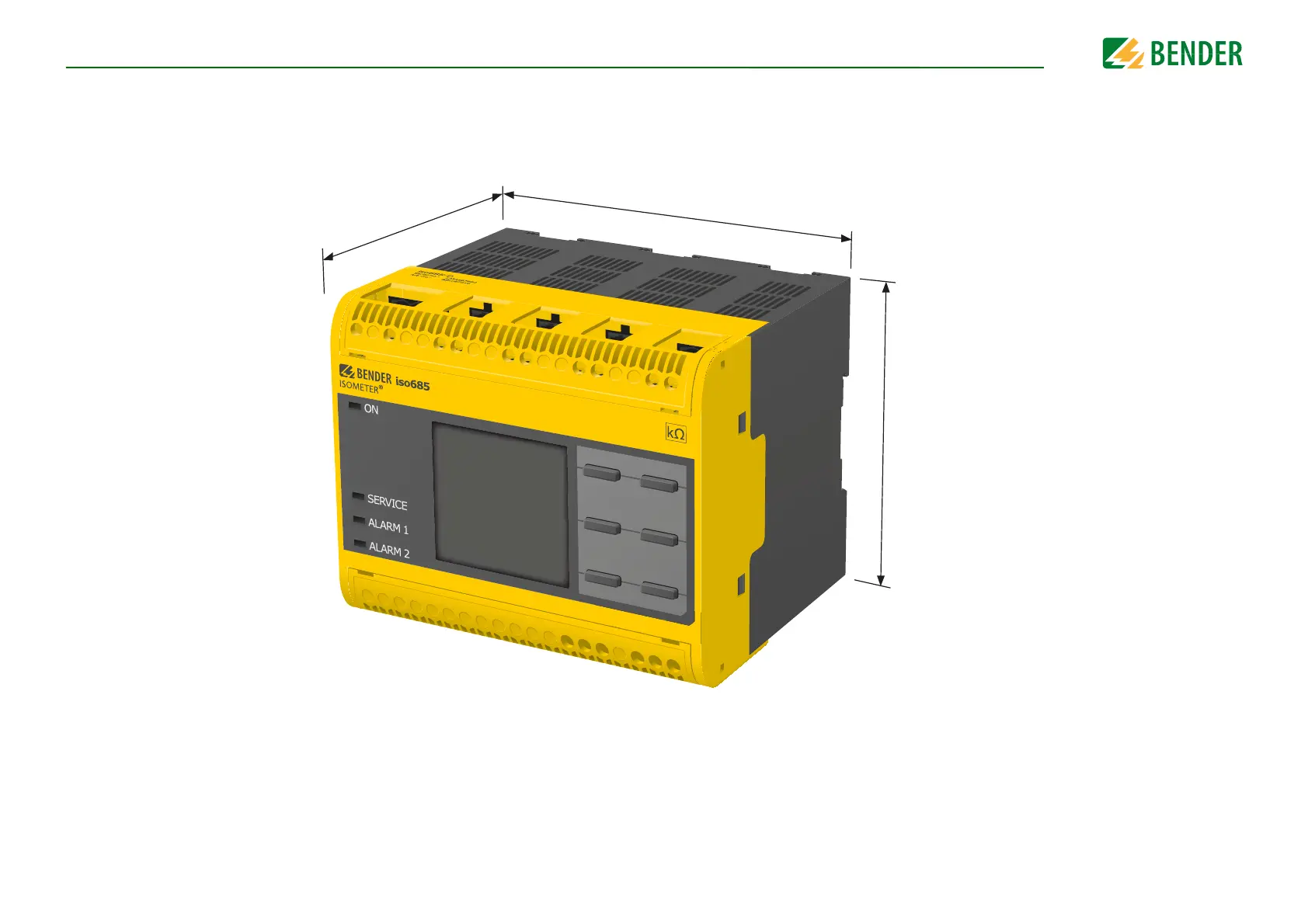

4. Devic
e ov
erview
4.1
Dimensions
10
8
mm
11
0
mm
m
m
3
9
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information
6
How to Use this Manual
6
Technical Support
6
First Level Support
6
Repair Service
6
Field Service
7
Training Courses
7
Delivery Conditions
7
Storage
7
Disposal
7
2 Safety Instructions
8
General Safety Instructions
8
Work Activities on Electrical Installations
8
Device-Specific Safety Information
8
Intended Use
9
3 Function
10
Features
10
Product Description
10
General Product Description
10
Special Characteristics of ISOMETER® Iso685-S-B with Front Panel
10
Functional Description
10
Interfaces
11
Self Test
11
4 Device Overview
12
Dimensions
12
Device Variants
13
Connections and Panel
14
Display Elements and Device Buttons
15
5 Mounting
16
General Instructions
16
Screw Mounting
16
DIN Rail Mounting
17
6 Connection
17
Connection Requirements
17
Connection to a 3(N)AC System
19
Connection to an AC System
19
Connection to a DC System
20
Connection to the X1 Interface
20
Connection to the Supply Voltage
21
Connection to the Ethernet Interface
21
Connection to the Relay 1 Interface (11 12 14)
22
Connection to the Relay 2 Interface (21 22 24)
22
7 Commissioning
23
General Initial Commissioning Process
23
Initial Commissioning
24
Set Language
24
Set Time and Date
24
Set System Type
24
Set Profile
24
Set Response Value Ran1 for Alarm 1
25
Set Response Value Ran2 for Alarm 2
25
Recommissioning
25
8 Display
26
Standard Display
26
Fault Display (Active)
26
Fault Display (Inactive)
27
Acknowledge Fault Memory
28
Data-Isograph
28
History Memory
29
Initial Measurement
29
Isonet Mode
30
9 Menu
31
Menu Structure
31
Operating and Navigating
32
Easy Operation
32
10 Settings
33
Settings in the Device Menu
33
Alarm Settings
33
(1.2) DC Alarm
33
(1.2.2) U(DC-E)
33
1) Alarm
33
Fault Memory
33
Insulation Alarm
33
(1.4) System Type
34
(1.5) Isonet
34
(1.5.1) Isonet
34
(1.5.2) Number of Devices
34
(1.6) Device
34
(1.7) T(Start)
34
(1.8) Coupling Monitoring
34
Profile
34
(1.9) Inputs
35
(1.9.1) Digital 1
35
(1.9.1.1) Mode
35
(1.9.1.2) T(On)
35
(1.9.1.3) T(Off)
35
(1.10) Outputs
36
(1.10.1) Relay 1
36
(1.10.1.1) Test
36
(1.10.1.2) Relay Mode
36
(1.9.1.4) Function
36
(1.9.2) Digital 2
36
(1.9.3) Digital 3
36
(1.10.1.4) Function 2
37
(1.10.1.5) Function 3
37
3) Function 1
37
(1.10.2) Relay 2
37
(1.10.3) Digital 1
37
(1.10.3.1) Test
38
(1.10.3.5) Function 3
38
2) Mode
38
3) Function 1
38
4) Function 2
38
(1.10.4) Digital 2
38
(1.10.5) Buzzer
38
(1.10.5.1) Test
38
(1.10.6) Analogue
38
(1.10.6.3) Test
39
1) Mode
39
2) Midscale
39
(1.10.6.4) Function
40
(2.0) Data Measured Values
40
(3.0) Control
40
(4.0) History
40
(5.0) Device Settings
40
(5.1) Language
40
(5.2) Clock
40
(5.2.1) Time
41
(5.2.2) Format (Time)
41
(5.2.3) Summer Time
41
(5.2.4) Date
41
(5.2.5) Format (Date)
41
(5.2.6) Ntp
41
(5.2.7) NTP Server
41
(5.2.8) Utc
41
(5.3) Interface
41
(5.3.1) Write Access
42
(5.3.2) Ethernet
42
1) Dhcp
42
1) System Name
42
2) Subsystem
42
3) Bcom
42
3) Device Address
42
4) Std. GW
42
5) DNS Server
42
6) Domain
42
1) Address
43
1) Brightness
43
1) Port 502
43
2) Status
43
5) BS Bus
43
Commissioning
43
Data Backup
43
Display
43
Password
43
Service
43
11 Device Communication
44
Ethernet Interface
44
Bcom
44
Modbus TCP
44
Web Server
44
BS Bus
48
12 Special Functions for Coupled IT Systems
49
Particularities When Monitoring Coupled IT Systems
49
System Isolation Via Digital Input with Two Coupled Systems
49
System Isolation Via Isonet
50
13 Device Profiles
52
14 Diagrams
53
Response Time Profile Power Circuits
53
Response Time Profile Control Circuits
53
Response Time Profile Generator
54
Response Time Profile High Capacitance
54
Response Time Profile Inverter > 10 Hz
55
Response Time DC Alarm
56
Relative Uncertainty
56
15 Alarm Messages
57
16 Factory Settings
59
17 Technical Data
60
Tabular Data
60
Option "W
63
Standards and Certifications
63
Ordering Details
63
18 Glossary
64
Index
65
