CommissioningCommissioning
iso685-D-B_D00177_05_M_XXEN/07.2017
25

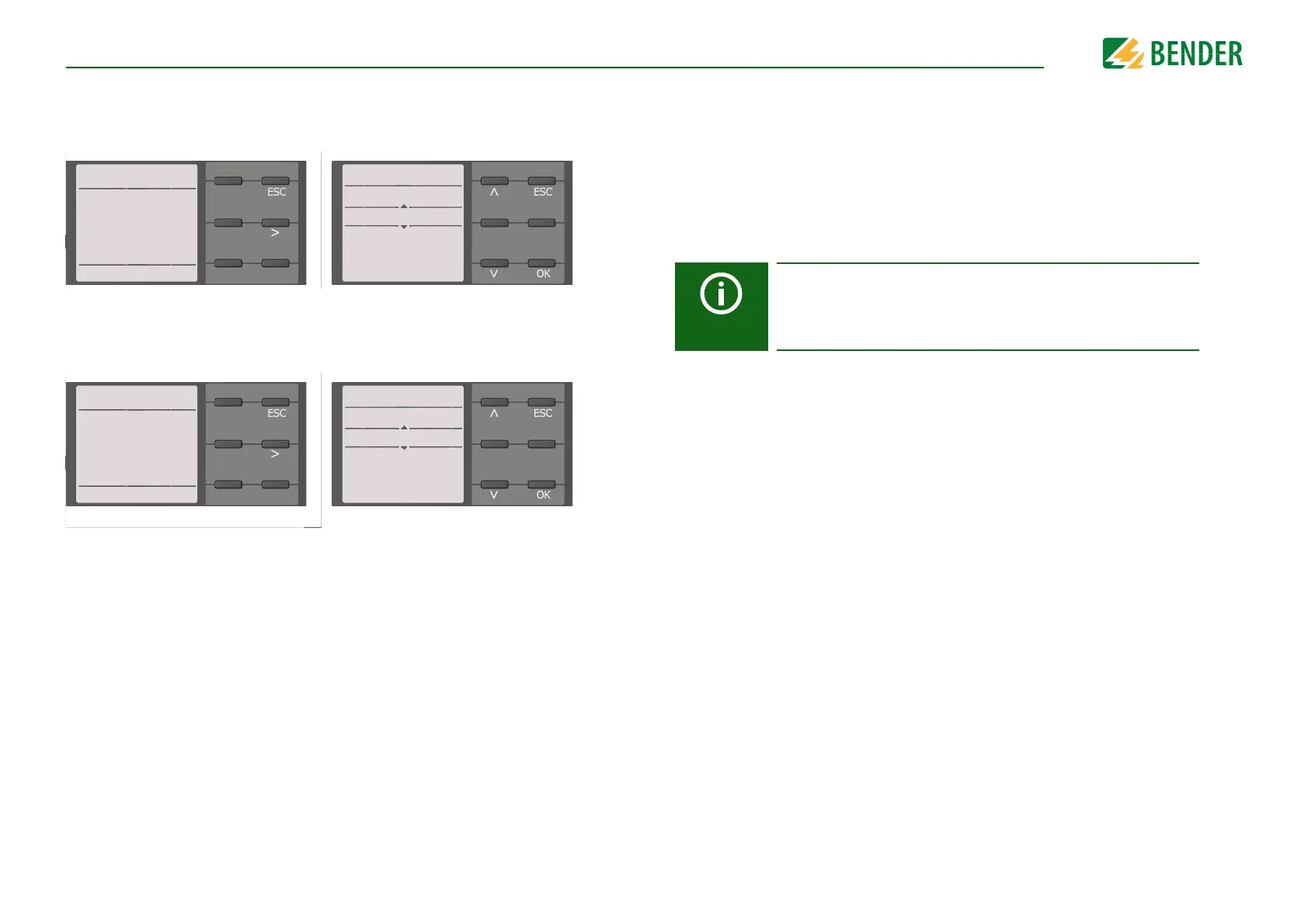

7.2.5 Set response value R
an1
for Alarm 1
You can set the prewarning response value here.
A value of 100 Ω/V is recommended for prewarning.
7.2.6 Set response value R
an2
for Alarm 2
You can set the response value for the main alarm here.
A value of 50 Ω/V is recommended for the main alarm.
Ala rm 1 5.6.9
40 kΩ
Min.
Max. 10MΩ
1kΩ
Commissioning 5.6
Please set
response value
for R(an1) for
Alarm1.
8/10
Ala rm 2 5.6.10
10 kΩ
Min.
Max. 10MΩ
1kΩ
Commissioning 5.6
Please set
response value
for R(an2) for
Alarm2.
9/10
7.3 Recommissioning
If the device has already been put into operation before, the self test will be started short-
ly after the supply voltage has been connected. Start the commissioning wizard using the
menu path:
Menu/Device settings/Commissioning
This menu can be used to modify settings made previously.
Observe the device status!
The device changes from the alarm state to normal state after
completing initial commissioning and initial measurement by ad-
hering to the response values set.
