Bendix
Avionics
Division
ADF-T12C/D AUTOMATIC
DffiECTION FINDER SYSTEM
Installation
Manual
i
BENDIX
TYPE/PART
NUMBER
DESCRIPTION
REMARKS
201C
ADF Receiver with tuning meter.
(Installation of CW kit 2V017-01
converts 201C to 201D).
ADF Receiver with tuning meter and
CW option.
ADF Receiver with digital tunin^, ....
of-lock monitor, and BFO (CW mode
is standard). No tuning meter.
Ser vo -Am pl ifie r I nd ic a to r
Basic ADF-T-12C receiver (no
CW mode).
201D
Optional ADF-T-12C receiver.
201F
out-
S t a n d a r d A D F r e c e i v e r i n A D F -
T-12D system.
O*
551A
Standard resolver-indicator-
indicates ADF bearing relative
to aircraft heading.
Optional resolver-indicator.
Similar to 551A but incorporating
synchro-transmitter for driving a
remote indicator (such as a551C).
Optional indicator permitting dis¬
play of two bearing sources; re¬
quires one 551E for each pointer.
Op t i o nal indica t o r w h i ch w hen man¬
ually matched to compass heading
provides ADF compass bearing.
551E
Serv o -Amp l ifier In d ica t or
551C
Dual Pointer (independently driven)
Synchro Indicator
(
551RL
Servo-Amplifier Indicator with
manually rotatable azimuth dial
and blue-white lighting.
ACCESSORIES
2T028-01
Universal Installation Kit containing
bulk coax and necessary connectors.
Installation Kit consisting of:
Tw o re q u i r e d f o r d u a l in s t a l l a t i o n .
2T006-( )
MAIN CABLE
A P P R O X I M A T E C A P A C I T A N C E
PART NO.
2V005-30
2V005-31
2V005-32
2V005-33
LENGTH
18 inches
28 inches
36 inches
48 inches
42 pf
42 pf
45 pf
43 pf
LOOP CABLE
A P P R O X I M A T E C A P A C I T A N C E
PART NO.
4006310-0530
4006310-0531
4006310-0532
4006310-0533
LENGTH
9feet
16 feet
19 feet
27 feet
288 pf
290 pf
285 pf
288 pf
(„

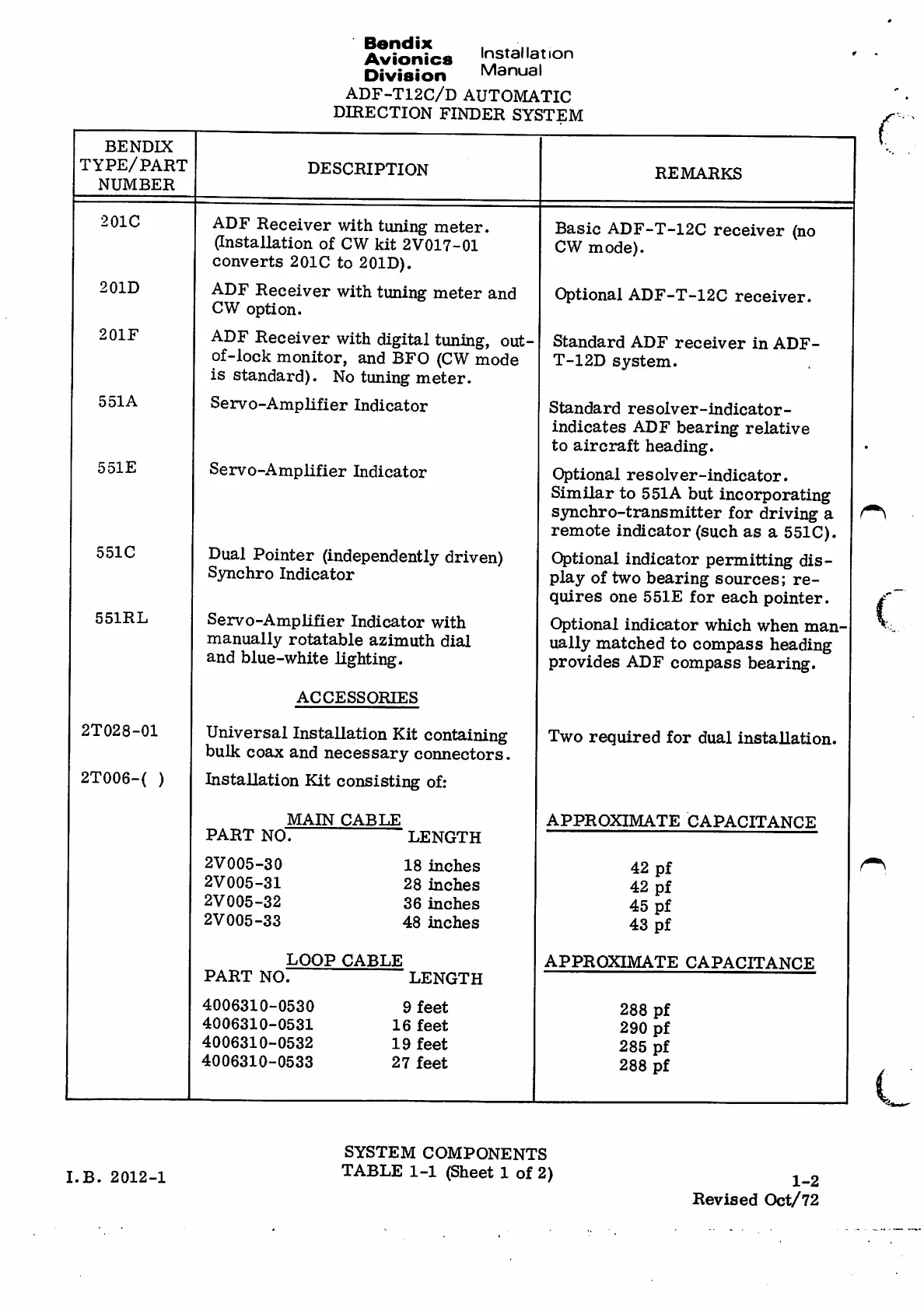

S Y S T E M C O M P O N E N T S
TABLE 1-1 (Sheet 1of 2)I.B. 2012-1
1-2
Revised Oct/72
