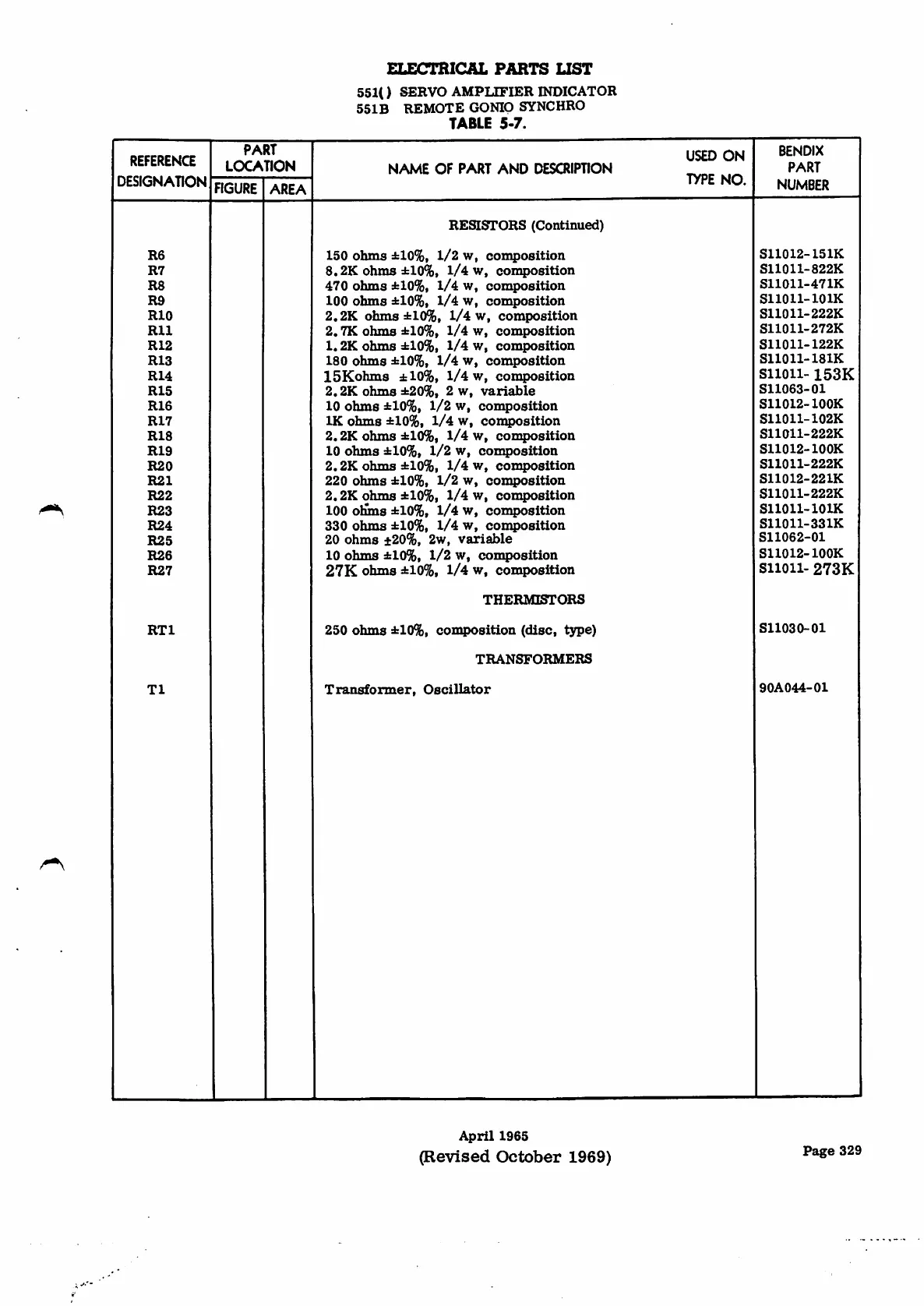

E L E C T R I C A L PA R T S L I S T
551( )SERVO AMPLIFIER INDICATOR
551B REMOTE GONIO SYNCHRO
TA B L E 5 - 7 .
PART
LOCATION
BENDIX
PART
NUMBER
USED ON
TYPE NO.
REFERENCE
DESIGNATION
NAME OF PART AND DESCRIPTION
FIGURE AREA
RESISTORS (Continued)
S11012-151K
S11011-822K
S11011-471K
SllOll-lOlK
S11011-222K
S11011-272K
S11011-122K
S110X1-181K
S l l O l l - 1 5 3 K
S11063-01
S11012-100K
SllOll-102K
S11011-222K
S11012-100K
S11011-222K
S11012-221K
S11011-222K
SllOll-lOlK
S11011-331K
S11062-01
S11012-100K
SllOll-273K
150 ohms ±10%, 1/2 w, composition
8.2K ohms ±10%, 1/4 w, composition
470 ohms ±10%, 1/4 w, composition
100 ohms ±10%, 1/4 w, composition
2.2K ohms ±10%, 1/4 w, composition
2. 7K ohms ±10%, 1/4 w, composition
1, 2K ohms ±10%, 1/4 w, composition
180 ohms ±10%, 1/4 w, composition
ISKohms ±10%, 1/4 w, composition
2.2K ohms ±20%, 2w, variable
10 ohms ±10%, 1/2 w, composition
IK ohms ±10%, 1/4 w, composition
2.2K ohms ±10%, 1/4 w, composition
10 ohms ±10%, 1/2 w, composition
2,2K ohms ±10%, 1/4 w, composition
220 ohms ±10%, 1/2 w, composition
2.2K ohms ±10%, 1/4 w, composition
100 oHms ±10%, 1/4 w, composition
330 ohms ±10%, 1/4 w, composition
20 ohms ±20%, 2w, variable
10 ohms ±10%, 1/2 w, composition
27K ohms ±10%, 1/4 w, composition
R6
R7
R8
R9
RIO
Rll
R12
R13
R14
R15
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
R26
R27
THERMISTORS
S11030-01
250 ohms ±10%, composition (disc, type)
RTl
TRANSFORMERS
90A044-01
Transformer, Oscillator
T1
April 1965
(Revised October 1969)
Page 329
