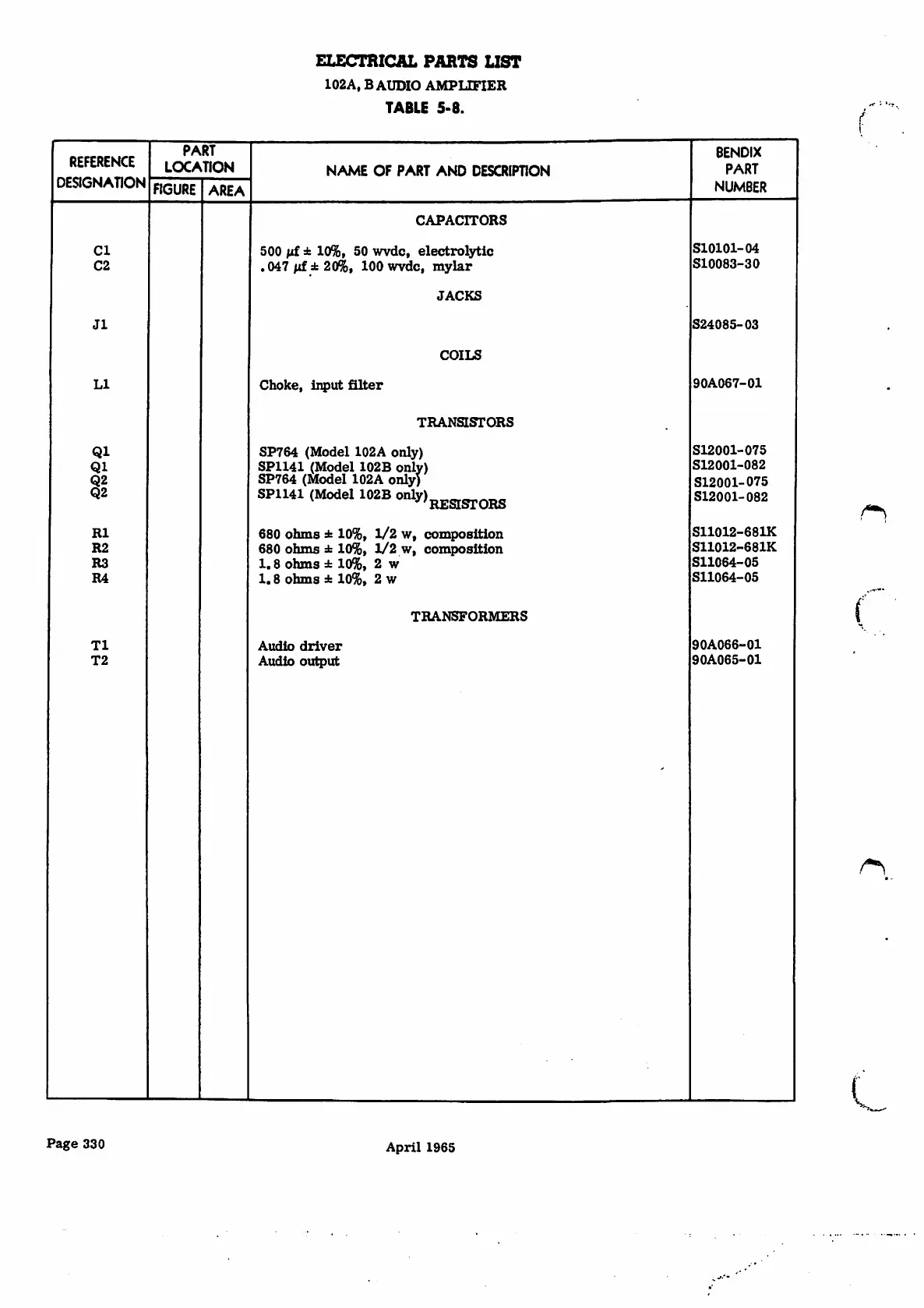

E L E C T R I C A L PA R T S L I S T
102A, BAUDIO AMPLIFIER
T A B L E 5 - 8 .
/ ■
i'
PART
LOCATION
BENDIX
PART
NUMBER
REFERENCE
DESIGNATION
NAME OF PART AND DESCRIPTION
FIGURE
AREA
CAPACITORS
SlOlOl-04
S10083-30
500 fxf ±10%, 50 wvdc, electrolytic
.047 ni ±20%, 100 wvdc, mylar
Cl
C2
JACKS
S24085-03J1
COILS
90A067-01
LI
Choke, input filter
TRANSISTORS
S12001-075
S12001-082
S12001-075
S12001-082
SP764 (Model 102A only)
SP1141 (Model 102B only)
SP764 (Model 102A only)
SP1141 (Model 102B only)
Q1
Q1
Q2
Q2
RESISTORS
680 ohms ±10%, 1/2 w, composition
680 ohms ±10%, 1/2 w, composition
1. 8ohms ±10%, 2w
1.8 ohms ±10%, 2w
S11012-681K
S11012-681K
S11064-05
S11064-05
R1
R2
R3
R4
cTRANSFORMERS
90A066-01
90A065-01
T1
Audio driver
Audio output
T2
I
Page 330
April 1965
