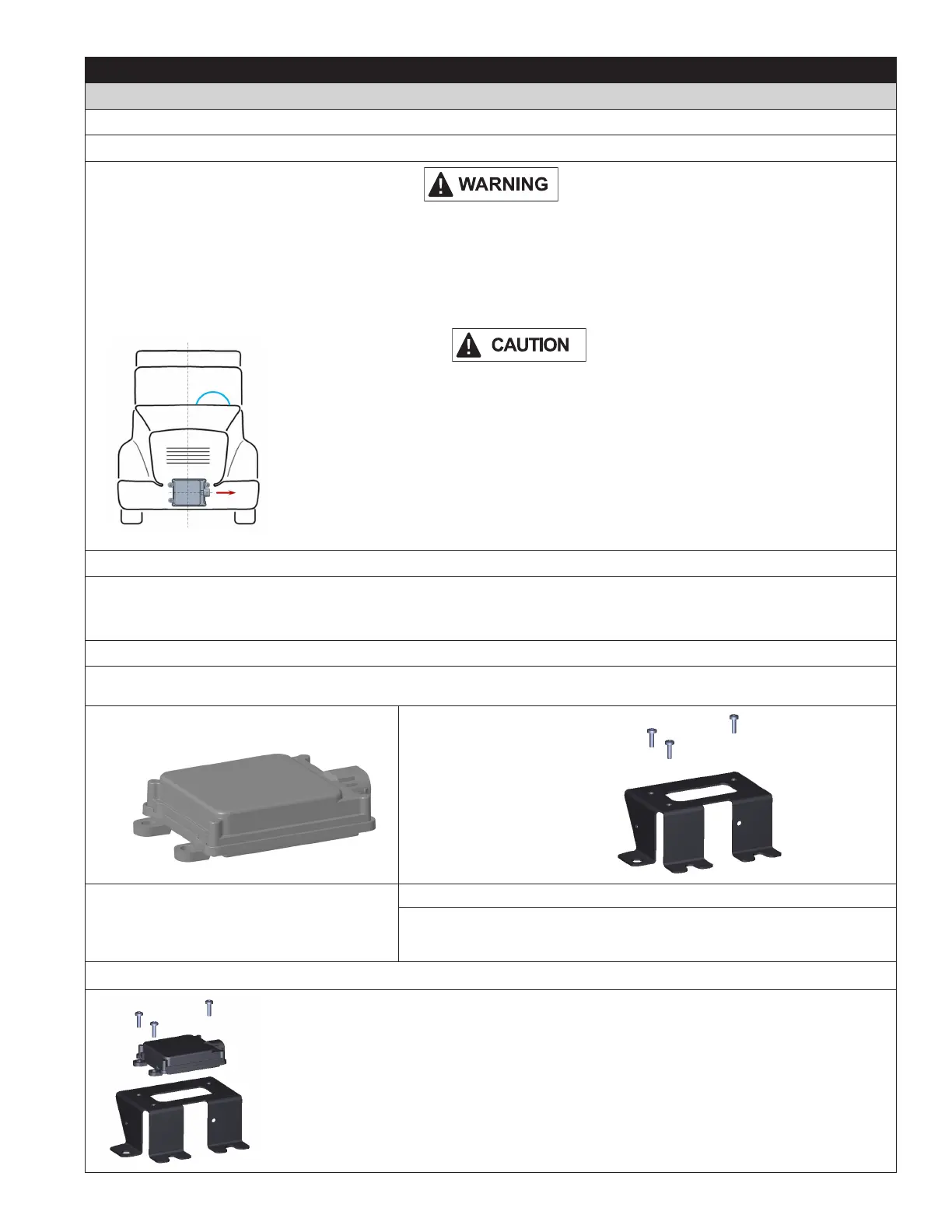

APPENDIX A - RADAR MOUNTING AND INSTALLATION
Appendix A
Mounting the Bendix
™
FLR-25
™
Radar Sensor
GENERAL
Improper use of the Bendix
®
Fusion
™
system include repositioning from the original production line installation.
Under no circumstances should the radar be removed or repositioned. The assembly shall always be
mounted in the original OEM location. Failure to do so may result in a collision causing property damage,
serious injuries, or death. If this location is not in the center of the vehicle, the mounting o󰀨set will need to
be programmed through Bendix
®
ACom
®
PRO
™
Diagnostic Software.
Vehicle equipment, including bumpers, deer guards, etc., must not infringe upon the
zone used by the radar sensor to emit and receive radar waves. Refer to Appendix
A.3. Failure to comply with this requirement will impair the function of the radar.
Only vehicle OEM-approved covers and/or cover panels may be installed in front
of the radar.
The radar sensor assembly is mounted to the front of the vehicle using a non-adjustable
bracket. When mounting a radar sensor, the wire harness connector must always point
towards the driver's side of the vehicle.
A.1 Vehicle Applications
The radar sensor can be mounted and installed only on vehicles that have the Bendix Fusion system already installed.
A.2 Replacement Parts
Replacement parts exist for the components shown below. Parts are available from any Bendix authorized parts supplier.
Radar Sensor Radar Bracket
Provide the bracket part number (see label/stamp) when ordering replacements.
Bracket will include three (3) mounting screws and the clinch nuts.
A.2.1 Radar Assembly
Appendix A
This image shows the proper assembly sequence for the radar bracket assembly. Once assembled, the
radarassemblyistobemountedtoadenedlocationatthefrontofthevehiclewiththeOEM-approved
cover in place.
