Autostacker™ Parking Lift 22 P/N 5900002 — Rev. D — August 2019
To check your Autostacker alignment prior to anchoring:
1. Using the drawing as a guide, measure A and B to make sure your Leg Assemblies are parallel. If
the values are different, adjust as necessary.
2. Measure 1 and 2 to check your diagonal measurements. If the values are different, adjust as
necessary.
3. When you believe your Leg Assemblies are parallel and the diagonals are correct,
check your
measurements again!
Important: Poor alignment can affect how your Autostacker raises and lowers. Re-aligning the
Leg Assemblies
after
you anchor them into place is difficult. It is well worth your time
to align your Autostacker correctly before you anchor it into place.
Concrete specifications are:
• Depth: 4.25 inches
• PSI: 3,000 PSI, minimum
• Cured: 28 days, minimum
Anchor Bolt specifications are:
• Length: 4.75 inches
• Diameter: .75 inch
• Anchor torque: 85 – 95 pound feet

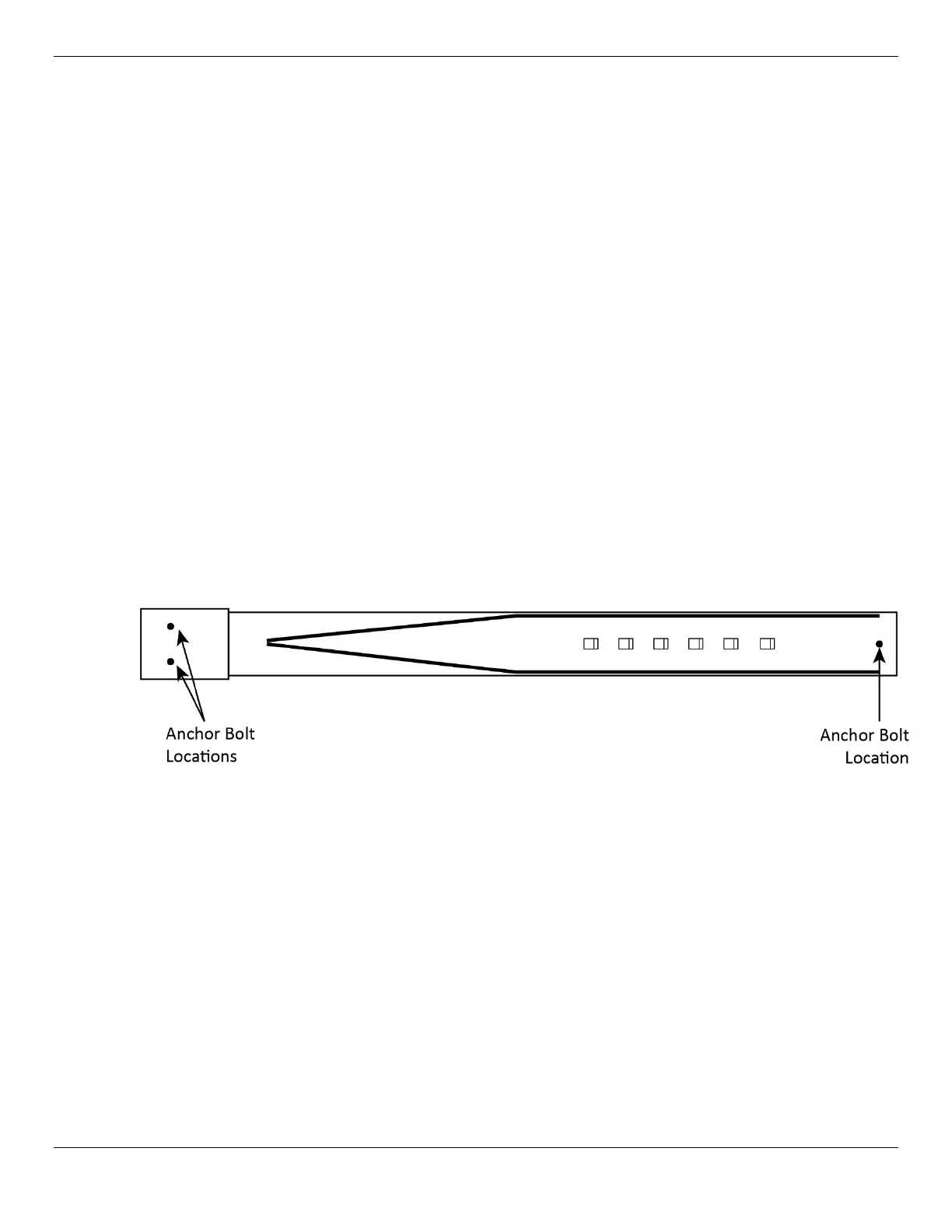

The following drawing shows the locations of the Anchor Bolt holes in the bases. Other components
have been removed so you can focus on the holes.
