Autostacker™ Parking Lift 29 P/N 5900002 — Rev. D — August 2019
Connect the Return Lines
The Return Lines take extra Hydraulic Fluid from the Hydraulic Cylinders and returns it to the Power
Unit’s Hydraulic Fluid Reservoir; it also allows air to move in and out of the Hydraulic Cylinders.
One end of the Return Line connects to the Power Unit (where it goes into the Reservoir). There are
two other ends; they attach to Return Line connectors, which are near the top of each Hydraulic
Cylinder.
The Return Line comes as one long roll of tubing; you need to cut it into sections of the right length.
If you have a Multi-Lift setup, this procedure will be slightly different for you
; see
Multi-Autostacker for modified instructions.

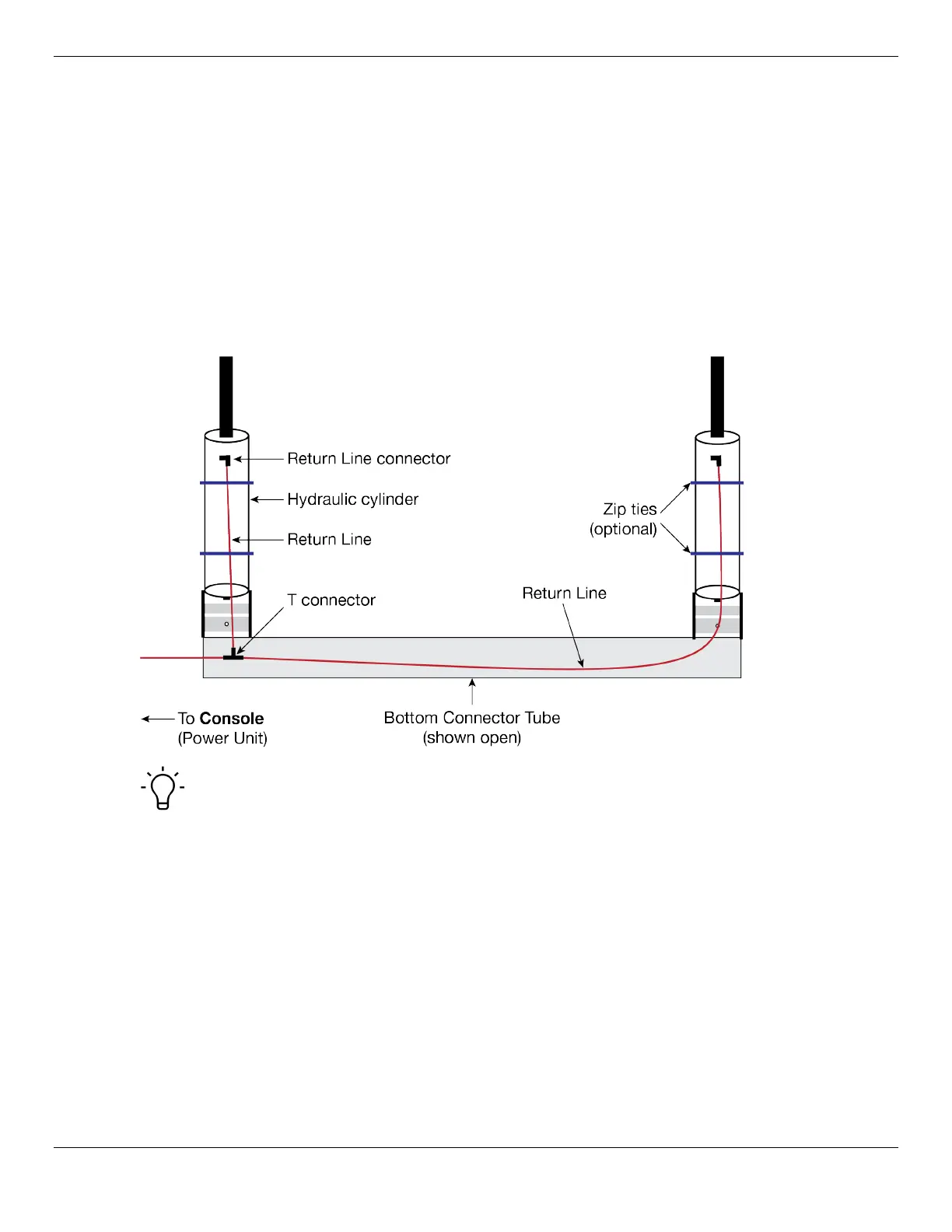

The following diagram shows how the Return Lines should be arranged.
Tip If you want, you can use zip ties (also called cable ties, not supplied) to hold the
Return Lines in place once they are connected.
You are going to need three Return Line segments of varying length:
• From the Power Unit to the T connector
• From the T connector to the Return Line connector on the Hydraulic Cylinder nearest the Console
• From the T connector to the Return Line connector on the Hydraulic Cylinder furthest from the
Console
