Autostacker™ Parking Lift 54 P/N 5900002 — Rev. D — August 2019
Installing the Hydraulic Hoses
In a Multi-Lift configuration, Hydraulic Fluid moves from the Reservoir, goes past a number of Lifts,
then reaches the two Hydraulic Cylinders of the Lift you want to use. To install the Hydraulic Hoses,
you will use parts from two separate kits: The MPU Plumbing Kit and the Control Kit.
To connect the Power Unit to the first Lift, you will need from the MPU Plumbing Kit:
• One Medium Hydraulic Hose (80 inches). Goes to the Hydraulic Cylinder closest to the Power
Unit.
• One Extra-Long Hydraulic Hose (180 inches). Goes to the Cylinder furthest from the Power
Unit (on the same Lift).
• Two Steel Hydraulic Lines (JIC) .The JIC end connects to a Nipple Fitting and the other end
connects to the Power Unit.
• Two Hydraulic Nipple Fittings (JIC x JIC). Connects the Steel Hydraulic Lines to the
Hydraulic Hoses.
• Two Hydraulic Elbow Fittings (JIC x ORB). The JIC connector attaches to the Steel Hydraulic
Line, and the ORB end goes to the Power Unit.

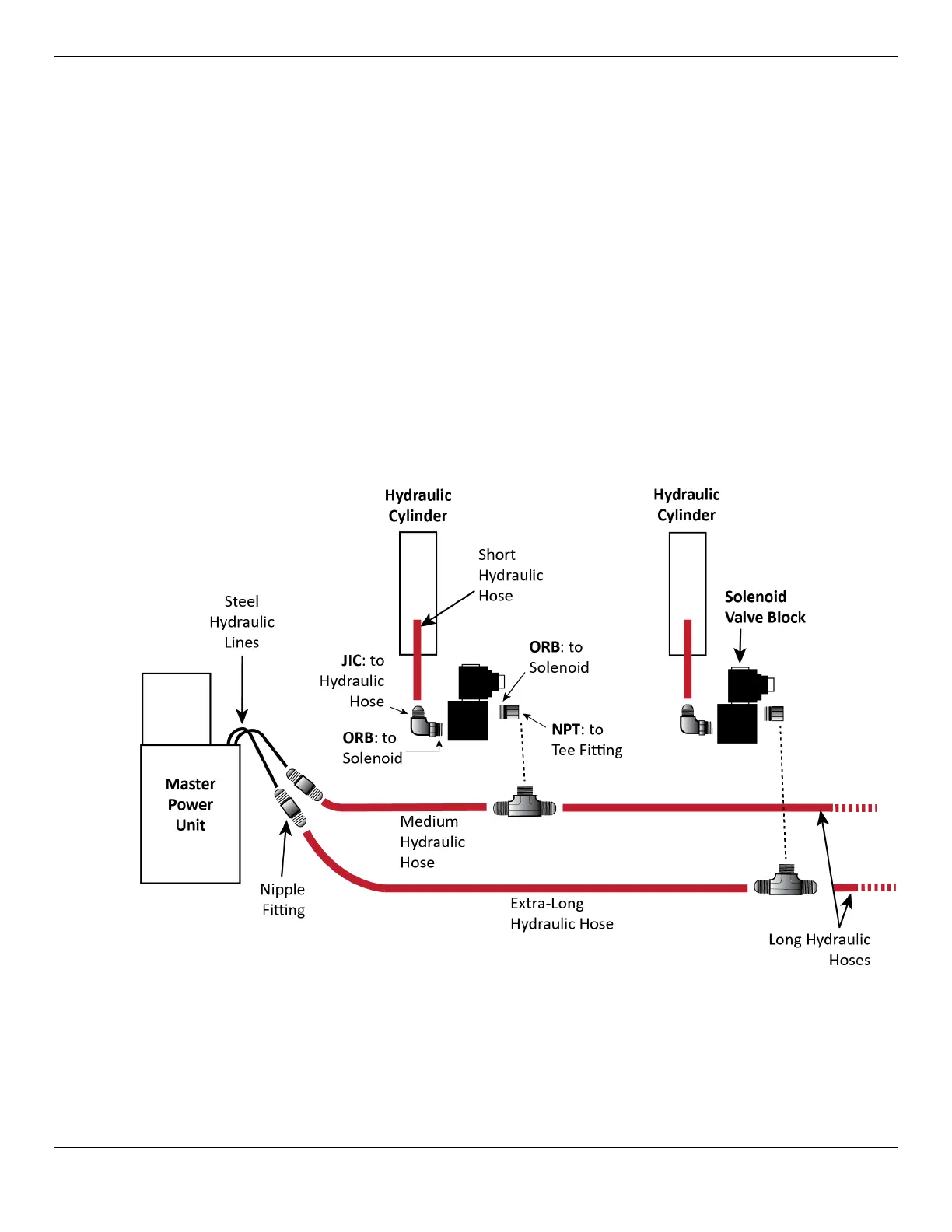

The following drawing shows the major connections to make to your Hydraulic System.
Not necessarily to scale. Not all components shown. Some components exaggerated or not shown for
easier understanding.
