Autostacker™ Parking Lift 57 P/N 5900002 — Rev. D — August 2019

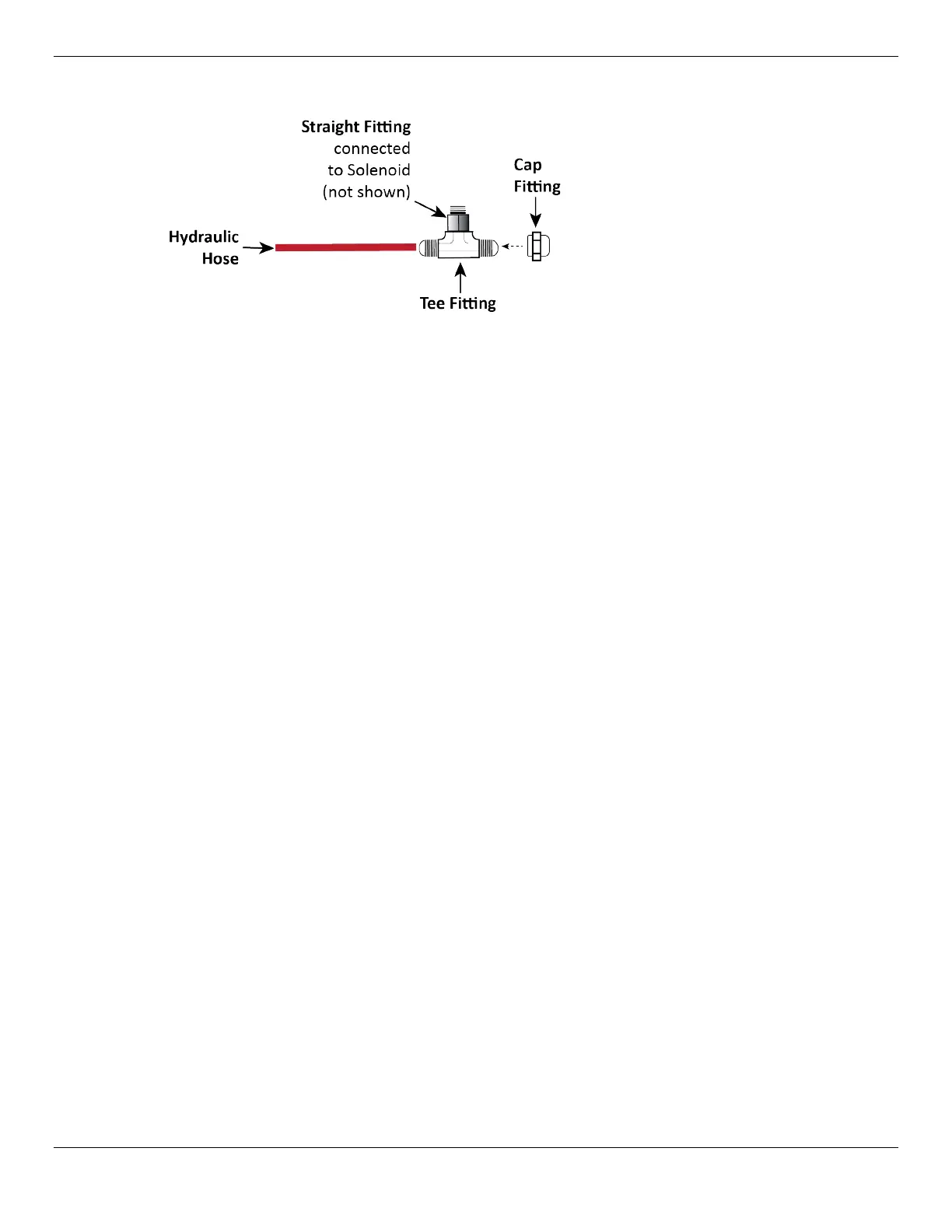

The following drawing shows the connections to make to the last Tee Fittings.
Not drawn to scale. Some components are exaggerated or not shown for easier understanding.
20. If there are additional Lifts to connect the Hydraulic Hoses to, continue repeating steps 1
through18 until you reach your ideal configuration, then complete step 19.
