14

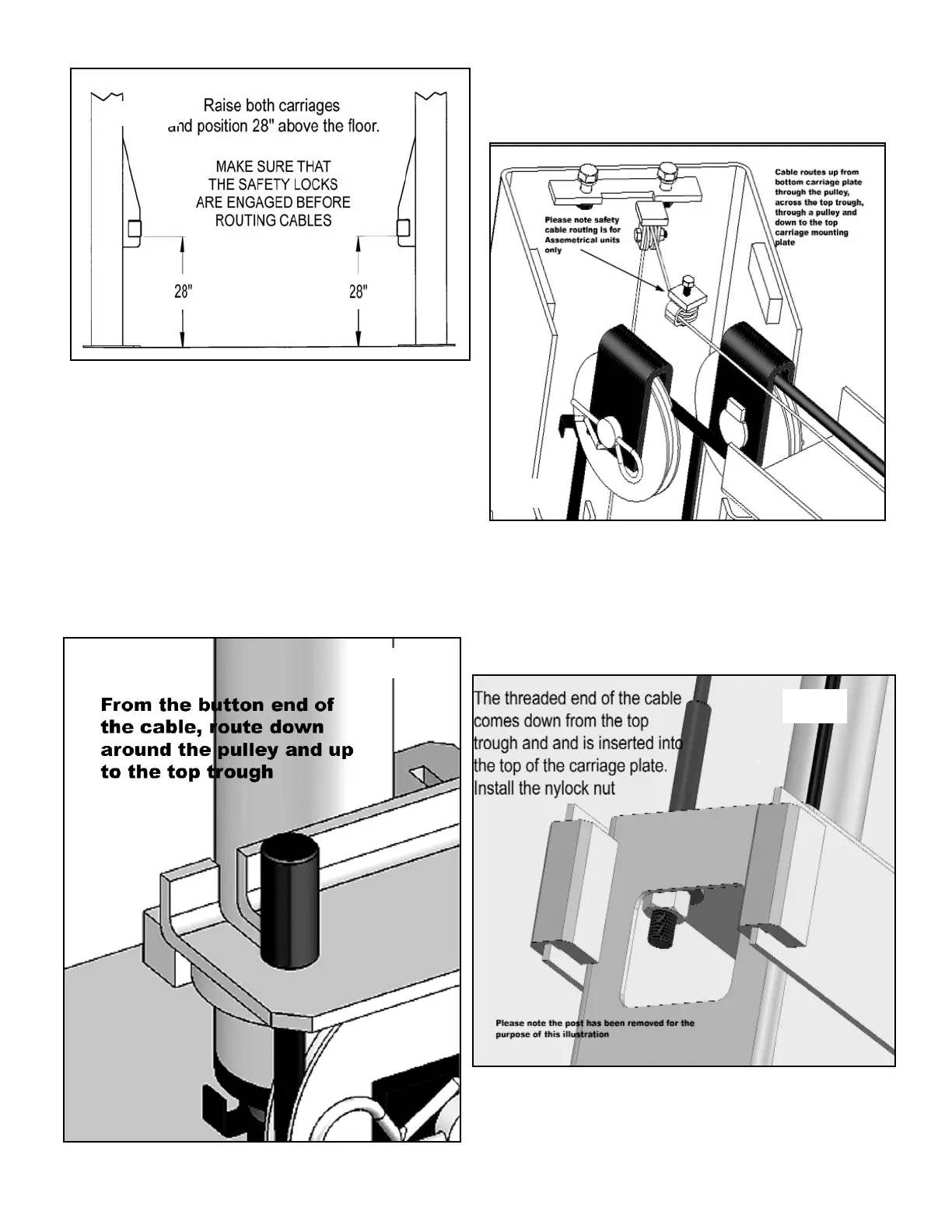

Fig 19
3.Take the cable across the top trough,
remove the pulley, route the cable around
the puley and reinstall it.
4. Insert the threaded end of the cable
through the hole on top of the carriage put
on the equalizer cable nylock nut.
5. Route the other cable the same way.
Fig 20
Fig 21
Fig 22
