BendPak XPR-10-LP - Step 8; Mounting the Hydraulic Power Unit

20
2. Adjust the Overhead Assembly width to match either
the Narrow or Wide configuration, and loosely tighten bolts.
(See Fig 7.1)
3. Using a lifting device, raise the Overhead Assembly
into position on top of the posts. Bolt Overhead Assembly
to the posts using the provided M10 hex head bolts, nuts
and washers.
4. YOU MUST POSITION THE SWITCH ENCLOSURE
ADJACENT TO POWER SIDE POST. (See Fig. 7.2)
5. Tighten the Overhead Assembly bolts.
STEP 8
(Mounting the Hydraulic Power Unit)
1. Attach the power unit to the POWER SIDE post. Install
the vibration dampener between the power unit and the
power unit mounting plate on the Power Side post, using
four M8 hex head bolts and nuts supplied. (See Fig 8.1)
2. Fill the reservoir with 10 WT. HYDRAULIC OIL OR
DEXRON ATF, (another option ISO-32 grade)
approximately four gallons. Make sure the funnel used
to fill the Power Unit is clean. Do not connect power unit
hydraulic hose assembly at this time.
3. The standard power unit for your lift is 220 volt, 60HZ,
single phase. All wiring must be performed by a certified
electrician only. SEE WIRING INSTRUCTIONS AFFIXED
TO MOTOR FOR PROPER WIRING INSTRUCTIONS.
20
IF THE ANCHOR BOLTS WERE LOOSENED TO
AID ON THE INSTALLATION OF THE TOP
TROUGH, TIGHTEN ANCHOR BOLTS AS
INDICATED IN STEP 5 ITEMS 4 - 7.

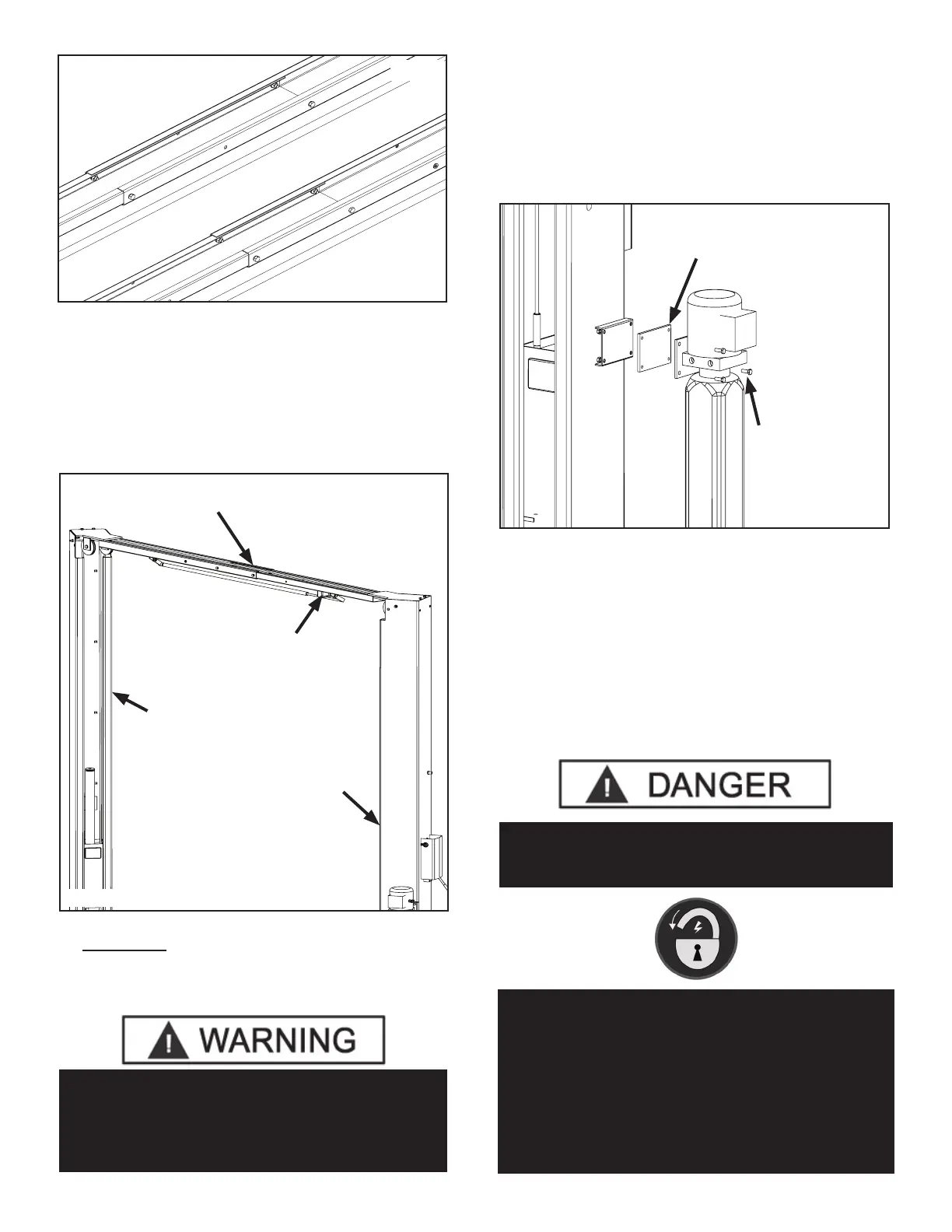

Fig 7.1
Narrow Configuration
Wide Configuration
Fig 7.2
Off Side Post
Power Side Post
Overhead Assembly
Microswitch Bracket
Position Overhead
Assembly with micro-
switch bracket adjacent
to Power Side post
Fig 8.1
Vibration Dampener
M8 x1.25 x 35mm
hex head bolts, M8
flat washers and
M8 Nylock nuts
(Qty 4 ea)
DO NOT PERFORM ANY MAINTENANCE OR
INSTALLATION OF ANY COMPONENTS WITHOUT
FIRST ENSURING THAT ELECTRICAL POWER HAS
BEEN DISCONNECTED AT THE SOURCE OR PANEL
AND CANNOT BE RE-ENERGIZED UNTIL ALL
MAINTENANCE AND/OR INSTALLATION
PROCEDURES ARE COMPLETED.
ALL WIRING MUST BE PERFORMED BY A
LICENSED ELECTRICIAN.
