27
7. Ensure that the arms do not move when a force of
approximately 100 pounds or less is applied laterally to
the fully extended arms.

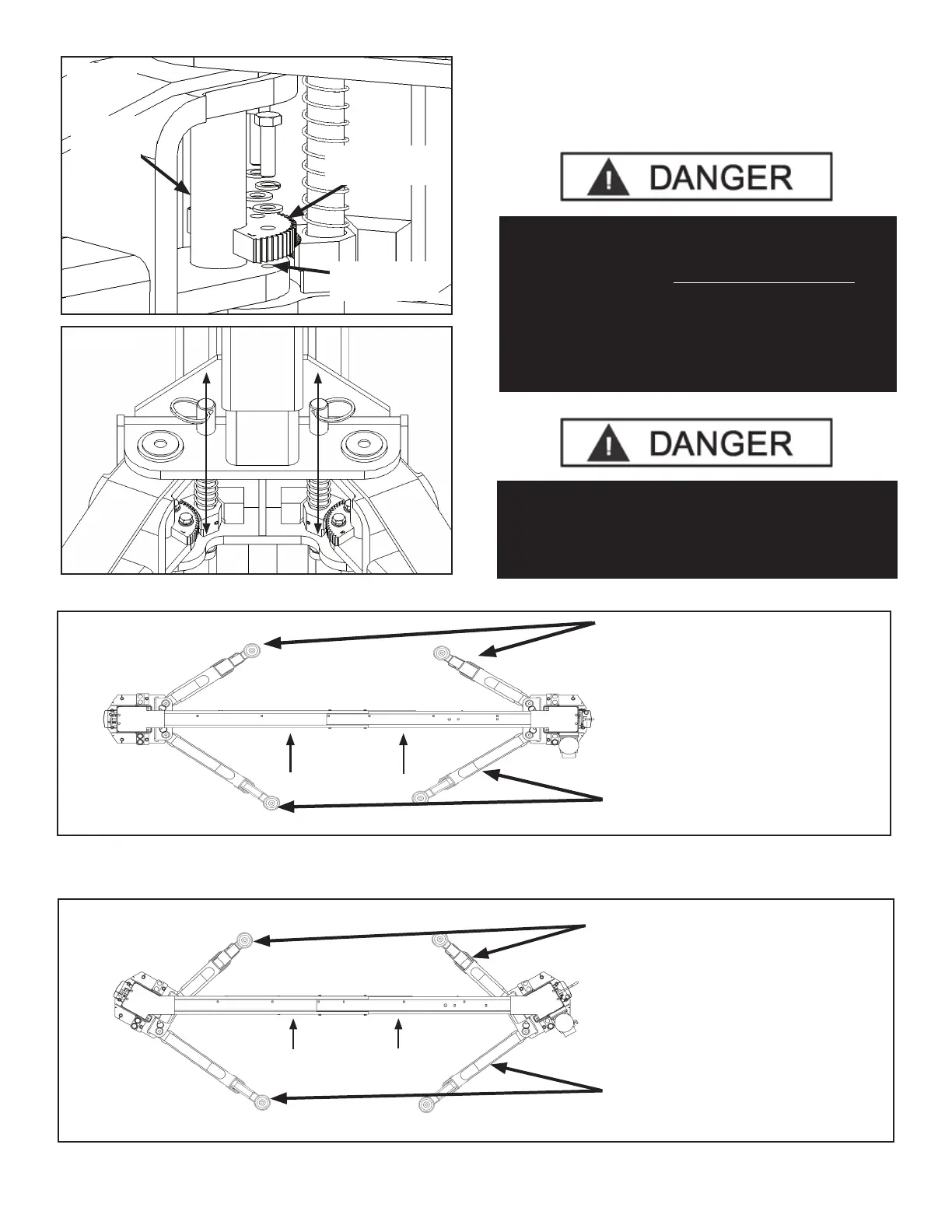

Fig. 14.5
Fig. 14.6
Fig. 14.8
XPR-10A/T: Triple Telescoping Arm Assembly
XPR-10A-LP: Short Arm Assembly
XPR-10A/LP: Long Arm Assembly
XPR-10T: Triple Telescoping Arm Assembly
Fig. 14.7
Approach
XPR-10/T: Triple Telescoping Arm Assembly
XPR-10-LP: Medium Arm Assembly
XPR-10/LP: Medium Arm Assembly
XPR-10T: Triple Telescoping Arm Assembly
Arm Ear
threaded holes
Arm Restraint
Gear Ring
Lift Head
Pin
REPLACE ANY BROKEN COMPONENTS OR
COMPONENTS WITH BROKEN TEETH ONLY WITH
AUTHORIZED OR APPROVED REPLACEMENT
PARTS.
NOTE:
EACH ARM RESTRAINT ASSEMBLY MUST BE
INSPECTED BEFORE EACH AND EVERY TIME THE
LIFT IS OPERATED.
DO NOT OPERATE THE LIFT IF ANY OF THE FOUR
ARM RESTRAINT SYSTEMS ARE NOT
FUNCTIONING PROPERLY.
Approach
