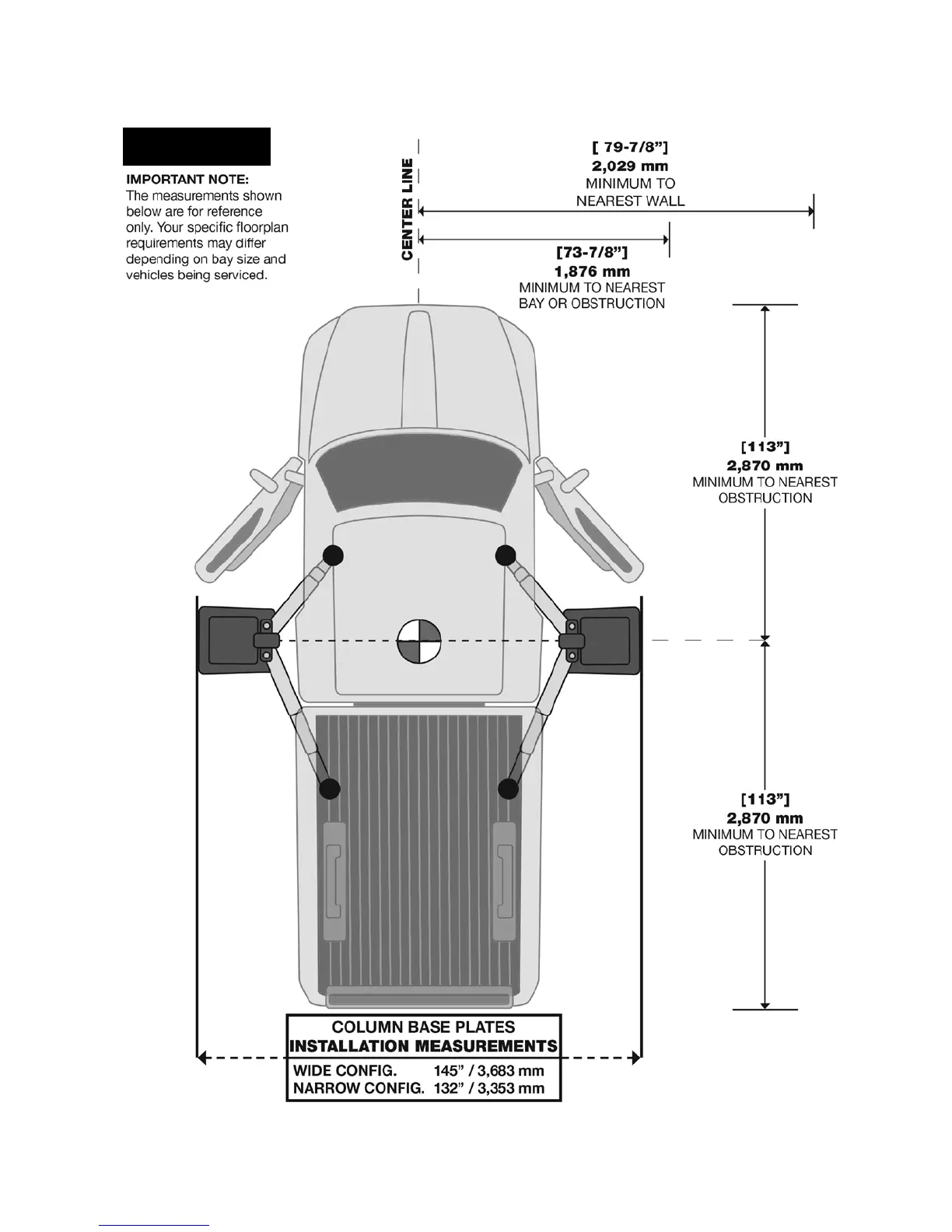

LIFT HEIGHT CLEARANCE NOTE:
Ther
e must be a 1”
MIN distance from t
op of lif
t t
o nearest obstruction.
CLEARANCES
XPR-10S
11
13
Table of Contents
Warranty / Serial Number Information
2
Definitions of Hazard Levels
3
Owner's Responsibility
3
Before You Begin
3
Table of Contents
4
Installer/Operator Agreement/ Protective Equipment
5
Introduction
6
Safety / Warning Instructions
6
Tools Required
7
Step 1 / Selecting Site
7
Step 2 / Floor Requirements
7
Concrete Specifications
7
Assembly View / Description of Parts
8
Floor Plan
9
Clearances
12
Clearances
13
Step 3 / Post Preparation
14
Equalizer Cable Routing
16
Hose Routing
17
Step 4 / Site Layout
18
Step 5 / Installing Power Side Post
18
Step 6 / Installing off Side Post
19
Step 7 / Mounting the Overhead Assembly
19
Step 8 / Mounting the Hydraulic Power Unit
20
Step 9 / Installing the Safeties and Safety Cable
20
Step 10 / Installing Hydraulic Lines
23
Step 11 / Routing the Equalizer Cables
23
Step 12 / Installing Overhead Microswitch
24
Step 13 / Installing Power Unit Hose Assembly and Power Side Safety Cover
25
Step 14 / Installing the Lift Arms
26
Carriage Stop Bolt Installation Warning
28
Step 15 / Power Unit Connection
30
Step 16 / Lift Start up Final Adjustments
32
Post Installation Checklist
33
Step 17 / Lubrication
33
Step 18 / Bleeding the Cylinders
33
Optional Equipment Installation / Optional Accessories
34
Step 19 / Operation/ Maintenance
37
Troubleshooting Guide
48
Torque Recommendations
51
Installation Form
52
Part Number Lists
53
CE Certificate
74
Declaration of Conformity
75
