16
NOTE:
XPR -10S models: both Equalizer Cables are the same length.
Overhead Assembly sheaves ARE NOT staggered.
XPR-10AS models: have one short and one long Equalizer Cable.
Overhead Assembly sheaves ARE staggered.

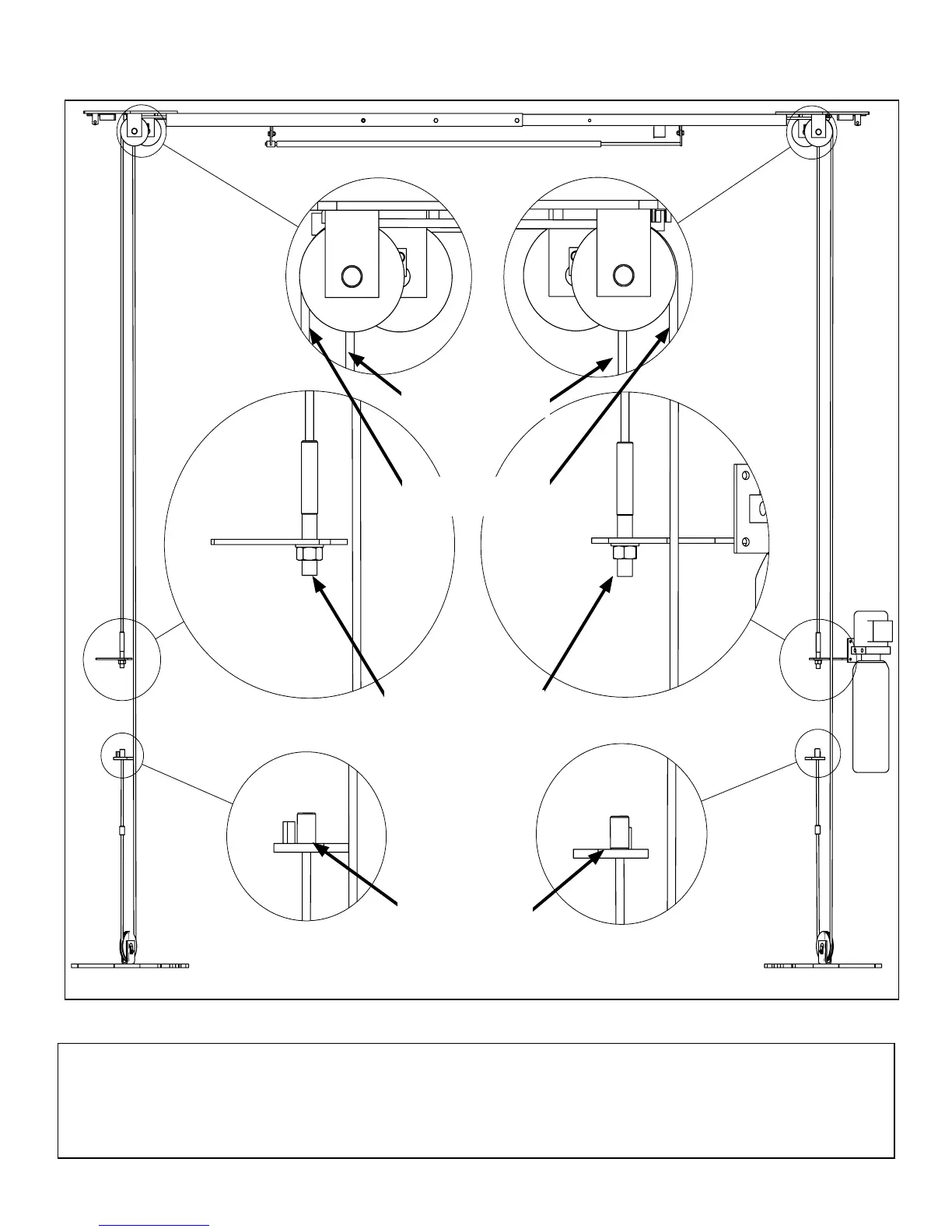

EQUALIZER CABLE ROUTING
XPR-10AS wide conguration shown.
SHORT CABLE
(“A” Models)
THREADED END
BUTTON END
LONG CABLE
(“A” Models)
POWERSIDEOFFSIDE
