16
STEP 9
(Installing the Safeties and Safety Cable)

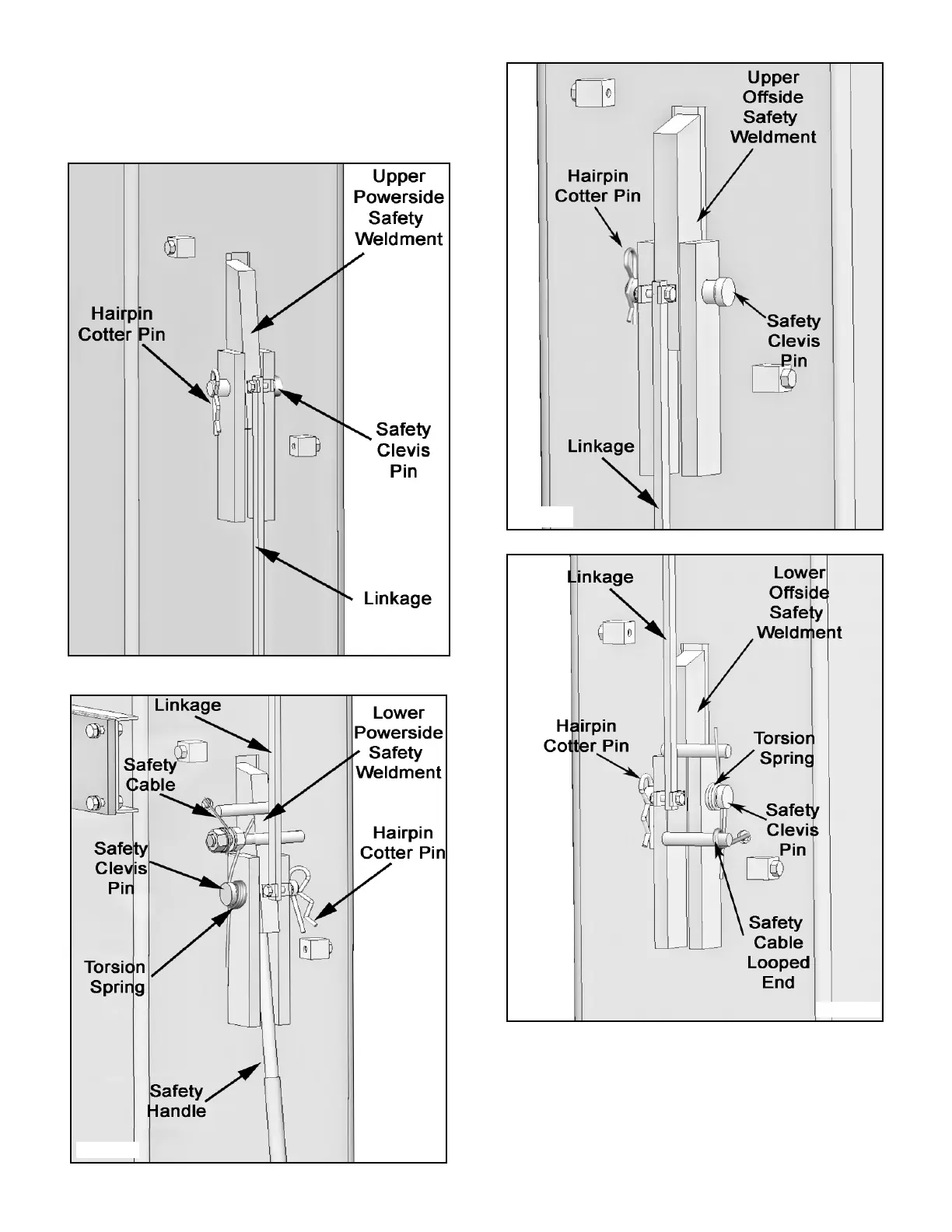

1. Install the Upper and Lower Safety Weldments into
each respective Column. (See Figs 9.1 thru 9.4)
Fig 9.1
Fig 9.2
Fig 9.3
Fig 9.4.
